Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description

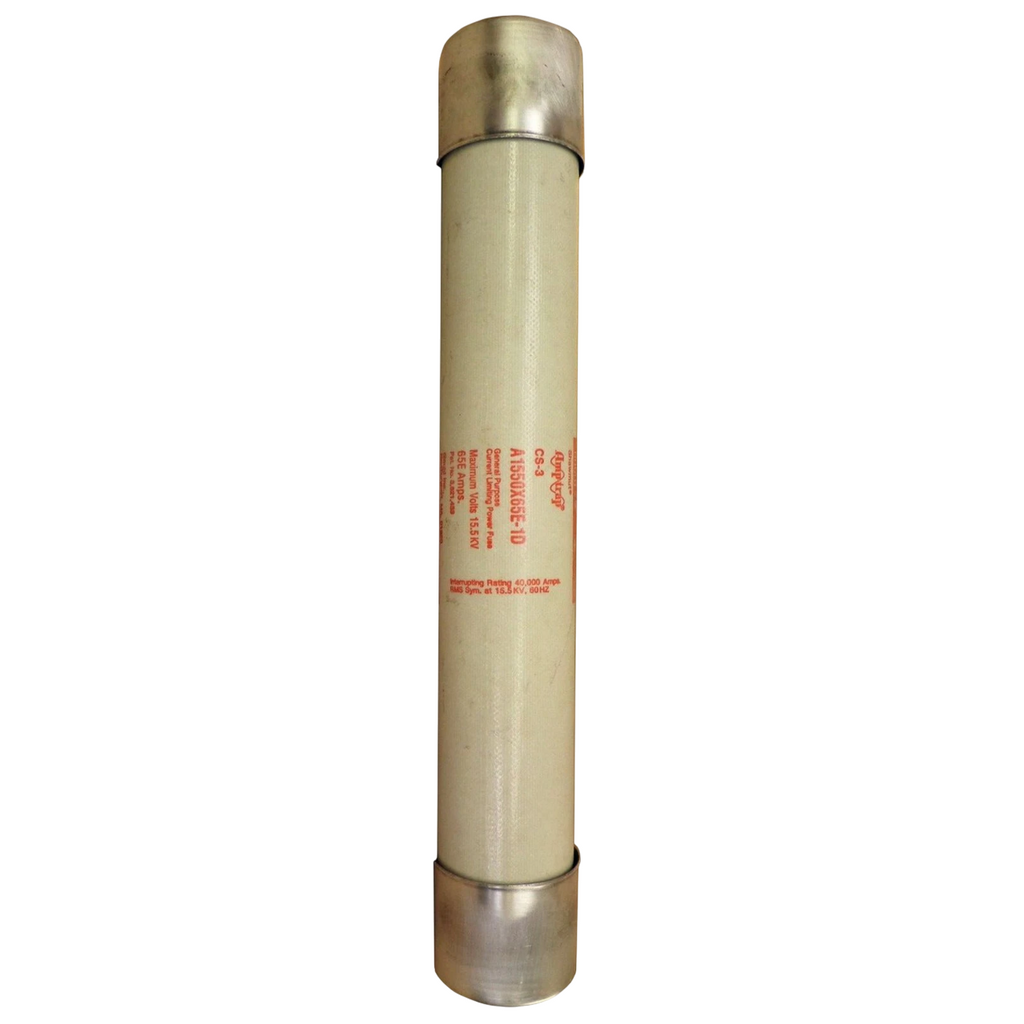

A1550X100E-1D
A1550X100E-1D is a 100E amp, 15.5 kV E-rated medium voltage fuse designed for ferrule mounting in electrical distribution systems.This Eaton fuse features an E-rating that ensures it melts within a specified time at 200% to 240% of its ampere rating, complying with ANSI C37.46 standards for medium voltage protection. It is constructed for use in feeder circuits, switchgear, and transformer protection applications, providing reliable current limiting and fault interruption. The fuse is ferrule mounted with clip centers measuring 18 inches (457 mm) and a barrel diameter of 3 inches (76.2 mm). It is designed for 60 Hz operation and offers a high interrupting rating suitable for medium voltage systems.
- Amperage: 100E
- Voltage Rating: 15.5 kV
- Fuse Type: E-Rated Medium Voltage Fuse
- Mounting Type: Ferrule Mount
- Clip Centers: 18 inches (457 mm)
- Barrel Diameter: 3 inches (76.2 mm)
- Frequency: 60 Hz
- Standards: ANSI C37.46 Compliant
- Interrupt Rating: High (suitable for medium voltage)
- Application: Feeder circuit, switchgear, transformer protection
Specifications
- Part Number: A1550X100E-1D
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Medium Voltage
- Family : CS-3 Series
- Voltage : 15500
- Amperage : 100
- AIC rating : [email protected]
- Connection : Ferrule
- Diameter : 3
- Class Rating : E
- Barrels : 1
- Clip Center : 18
Product Data
- Weight : 25
