A100P500-4 - Mersen 500A 1000V Semiconductor Fast-Acting Fuse, Current Limiting, 100,000 AIC

A100P500-4

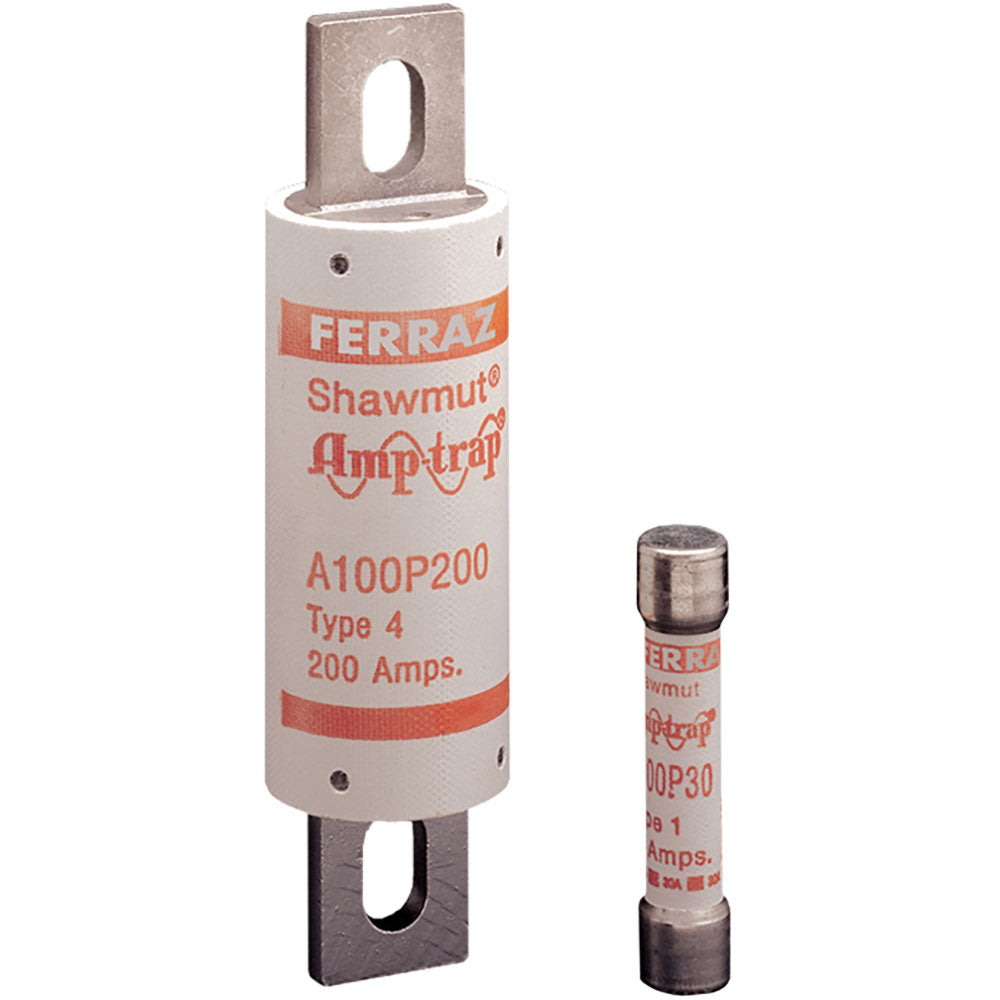

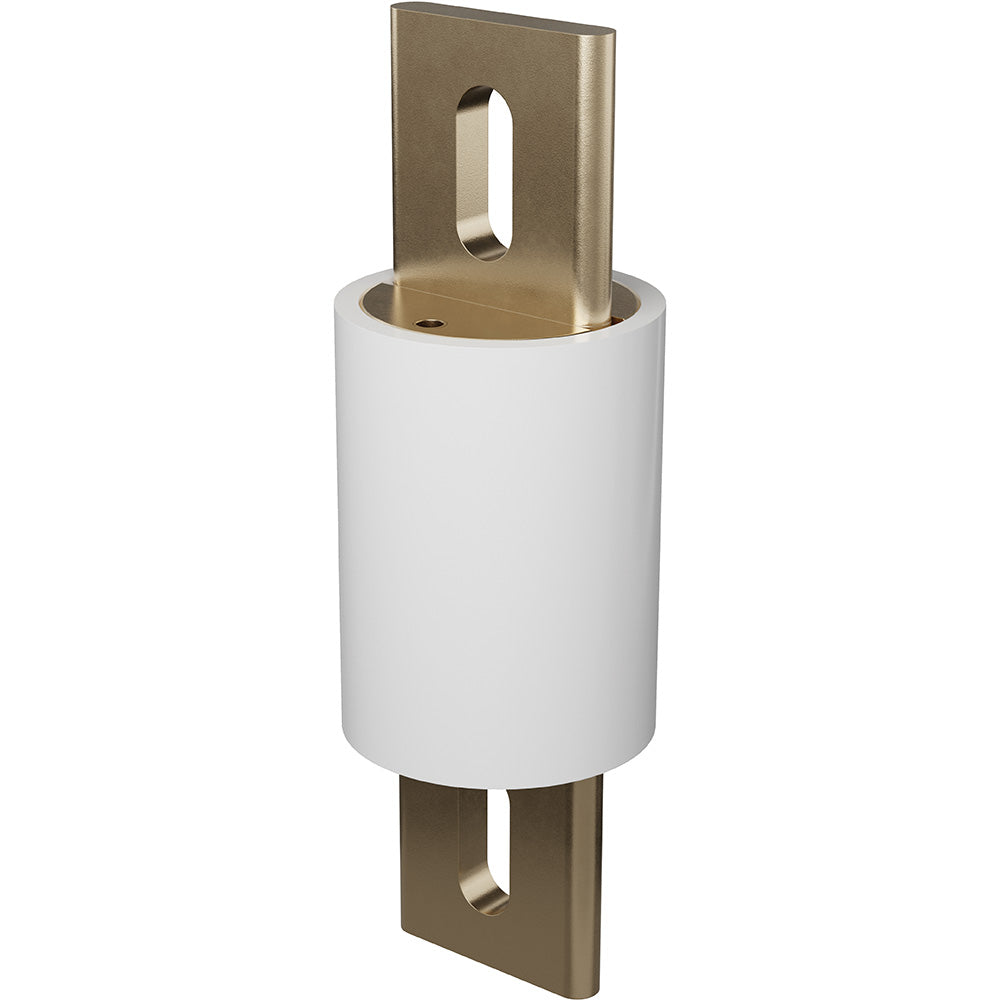

A100P500-4 is a high-speed semiconductor fuse designed for reliable protection in demanding electrical systems. This fuse features a 500A current rating and a 1000V AC voltage rating, making it suitable for use in UPS systems, AC and DC drives, and reduced voltage motor starters. The A100P500-4 is fast-acting and current-limiting, providing superior reliability and controlled arc voltage to reduce stress on circuit components during fuse clearing. It is UL Recognized (UL File E60314) and meets the requirements for high interrupting applications. This fuse is part of the Mersen A100P Amp-Trap® Form 101 series, known for its robust construction and high performance in industrial environments. The physical size is 2.50" x 7.72", and it is suitable for both AC and DC applications, with a DC voltage rating of 750V. The fuse is designed for easy mounting and integration into existing systems.

• 500A Current Rating
• 1000V AC Voltage Rating
• 750V DC Voltage Rating
• Fast-Acting
• Current Limiting
• 100,000 AIC Interrupting Rating (AC/DC)
• A100P Frame/Type
• UL Recognized (UL File E60314)
• Physical Size: 2.50" x 7.72"
• Mounting: Standard Fuse Block
• Application: UPS, AC/DC Drives, Reduced Voltage Starters
• Body Material: GMG

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A100P500-4
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap
• Type : A100P
• Voltage : 1000
• Amperage : 500
• AIC rating : 100kA@1000V
• Diameter : 2.5
• Barrels : 1

Product Data

• UPC : 78200194855
• GTIN : 00782001948559
• Weight : 2
• Certification : UL
