Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

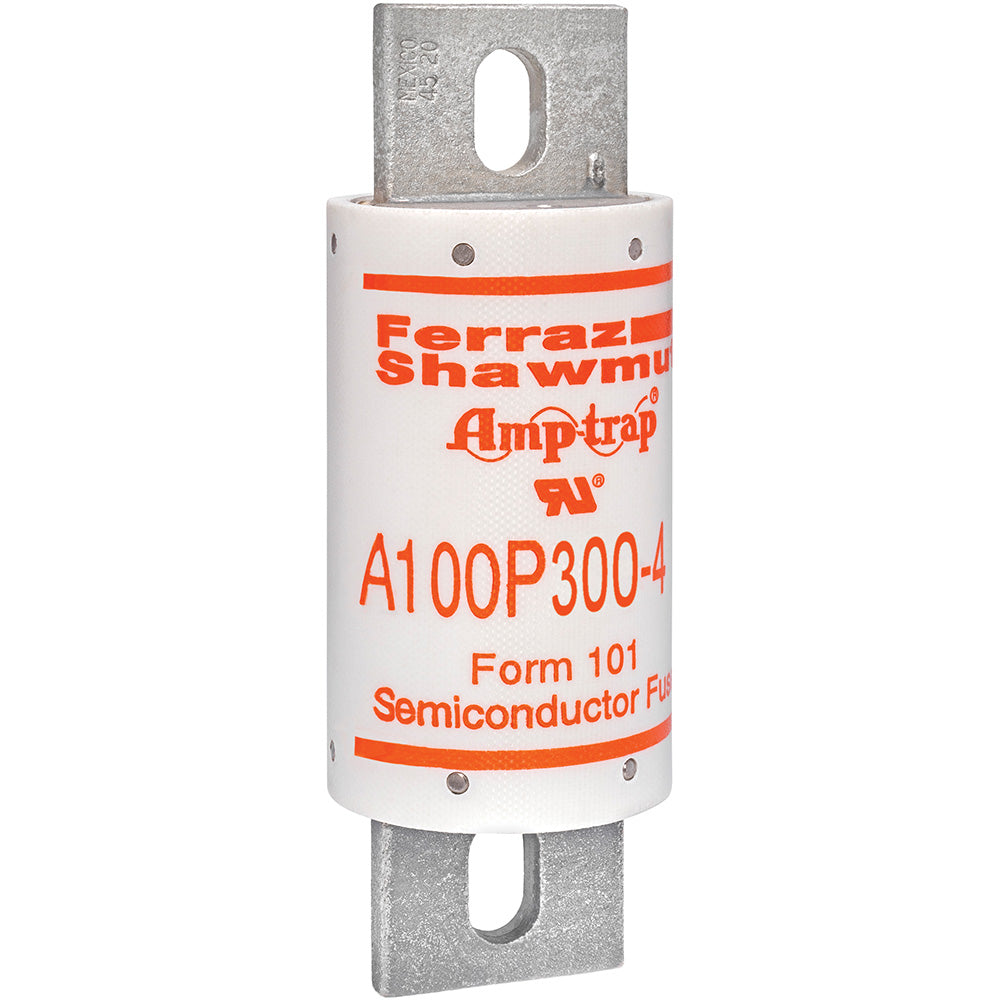

A100P300-4
A100P300-4 is a high-speed semiconductor fuse from Eaton designed for reliable overcurrent protection in DC drives, UPS, inverters, and reduced voltage starters.This 300 Amp, 1000 Volt AC rated fuse features fast acting, current limiting characteristics with a bolted blade mounting type for secure installation.
- Amperage: 300 Amps
- Voltage Rating: 1000 Volts AC / 750 Volts DC
- Poles: 1
- Mounting Type: Bolted Blade
- Interrupting Rating: 100,000 AIC (AC and DC)
- Fuse Type: Semiconductor, Fast Acting
- Physical Size: 2" diameter x 5.72" length
- UL Recognized Component (UL File E60314)
- Current Limiting for superior circuit protection
- Application: Protection of DC drives, UPS, inverters, and reduced voltage starters
- Series/Frame: Amp-Trap A100P
Specifications
- Part Number: A100P300-4
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A100P
- Voltage : 1000
- Amperage : 300
- AIC rating : 100kA@1000V
- Diameter : 2
- Barrels : 1
Product Data
- UPC : 78200194845
- GTIN : 00782001948450
- Weight : 1
- Certification : UL
