Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

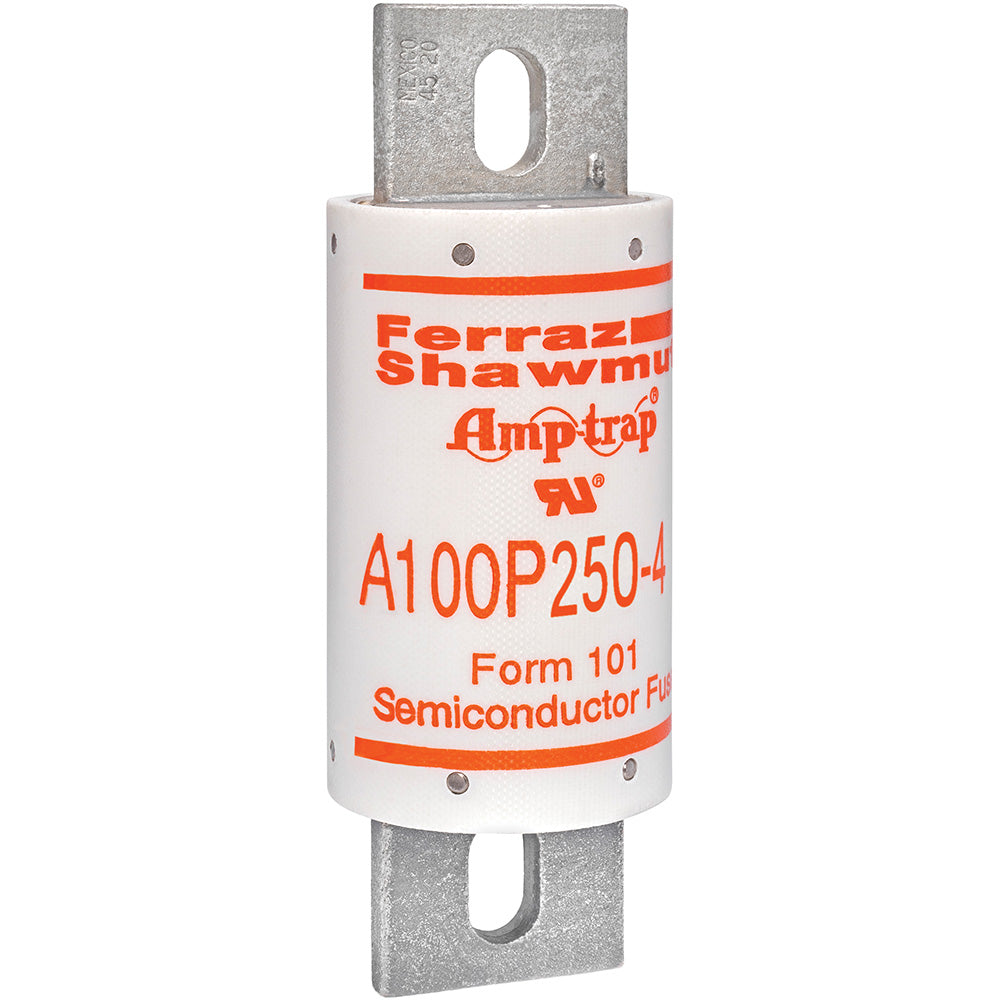

A100P250-4
A100P250-4 is a high-speed semiconductor fuse designed for reliable protection in demanding electrical applications. This fuse features a 250A current rating and 1000V AC / 750V DC voltage rating, making it suitable for UPS systems, AC and DC drives, and reduced voltage motor starters. The A100P250-4 is fast acting and current limiting, providing superior reliability and controlled arc voltage to reduce stress on circuit components during fuse clearing. It is UL recognized and meets the requirements for high interrupting capacity applications. This fuse is part of the Amp-Trap A100 series and is designed for bolted blade mounting. The cylindrical form factor and robust construction ensure long-term performance in industrial environments. The A100P250-4 is ideal for use in applications requiring high-speed protection and high interrupting ratings.
- 250A Amperage Rating
- 1000V AC / 750V DC Voltage Rating
- Form 101, Cylindrical/Round
- Fast Acting
- Current Limiting
- 100,000A Interrupting Rating (AC/DC)
- Bolted Blade Mounting
- UL Recognized Component (UL File E60314)
- Series: Amp-Trap A100
- Physical Size: 2" x 5.72"
- Protection for UPS, Drives, Motor Starters
- Controlled Arc Voltage
Specifications
- Part Number: A100P250-4
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A100P
- Voltage : 1000
- Amperage : 250
- AIC rating : 100kA@1000V
- Diameter : 2
- Barrels : 1
Product Data
- UPC : 78200194834
- GTIN : 00782001948344
- Weight : 1
