Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

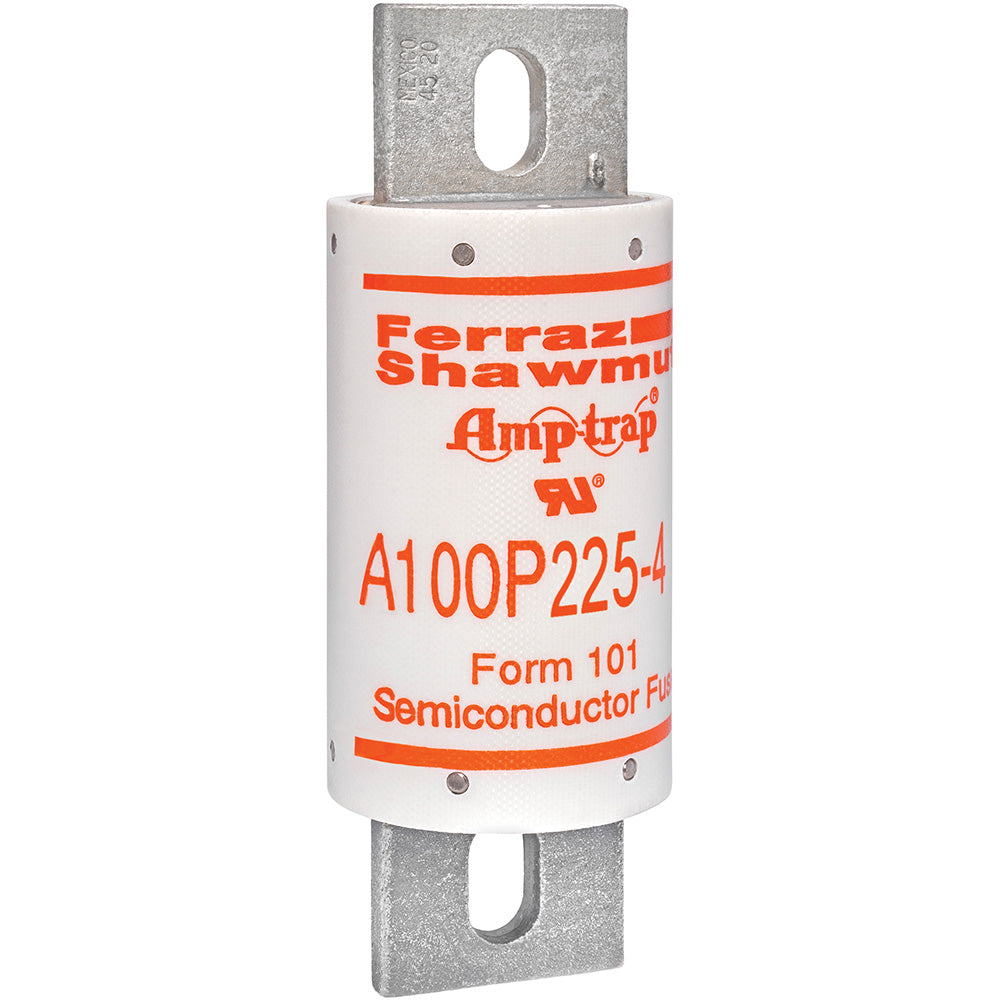

A100P225-4
A100P225-4 is a 225 Amp, 1000 Volt semiconductor fuse from Eaton's Amp-Trap Class L series designed for fast acting current limiting protection.This high-speed fuse features a bolted blade mounting type with a cylindrical body measuring 2 inches in diameter and 5.72 inches in length. It provides reliable protection for DC drives, UPS systems, inverters, and reduced voltage starters with an AC interrupting rating of 100,000 AIC and DC interrupting rating of 100,000 AIC. The fuse is UL Recognized and designed to reduce stress on circuit components during fuse clearing.
- Key Specifications
- Amperage: 225 A
- Voltage Rating: 1000 VAC / 750 VDC
- Poles: 1 Barrel
- Mounting Type: Bolted Blade
- Interrupting Rating: 100,000 AIC AC / 100,000 AIC DC
- Body Type: Cylindrical, 2 inch diameter x 5.72 inch length
- Series/Frame: Amp-Trap Class L
- Trip Unit: Fast Acting
- Certifications: UL Recognized Component (UL File E60314)
- Current Limiting: Yes
- Application: Protection of semiconductor devices, DC drives, UPS, inverters
- Part Number: A100P225-4
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A100P
- Voltage : 1000
- Amperage : 225
- AIC rating : 100kA@1000V
- Diameter : 2
- Barrels : 1
- UPC : 78200194844
- GTIN : 00782001948443
- Weight : 1
- Certification : UL
