Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
A100P200-4

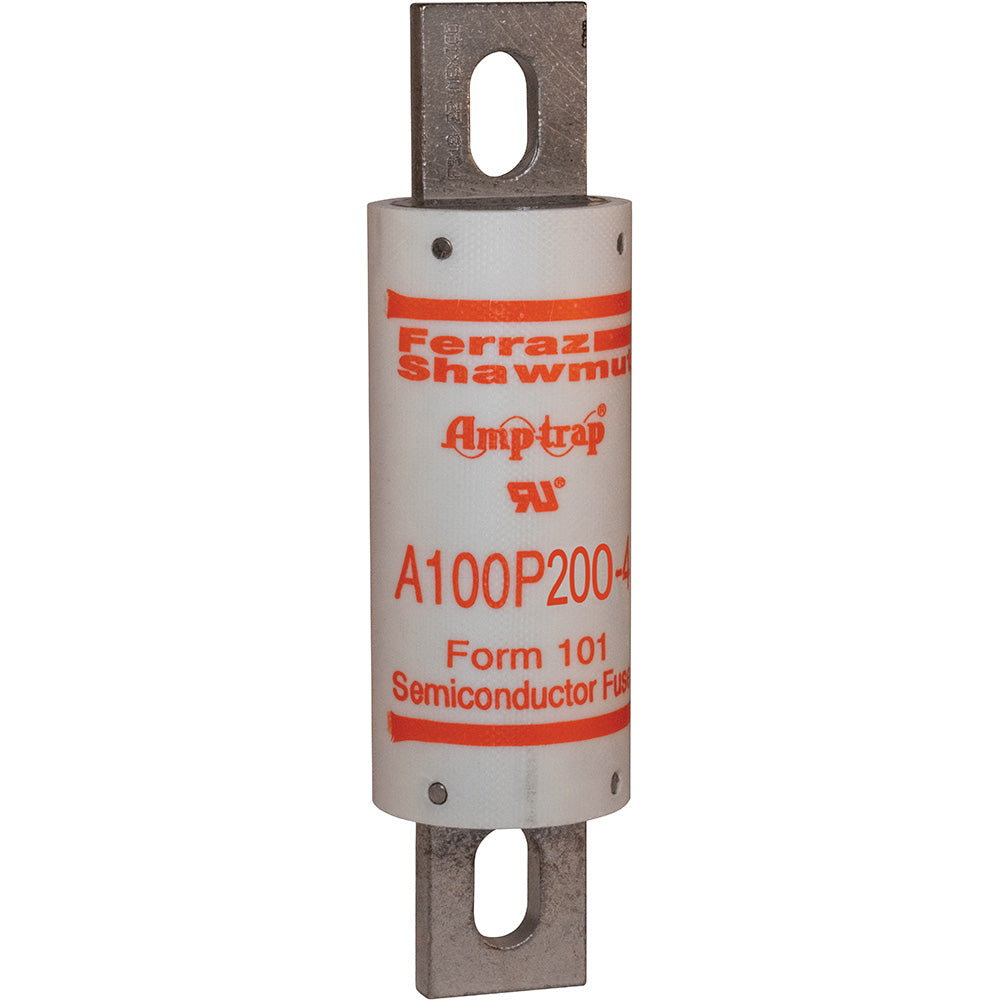

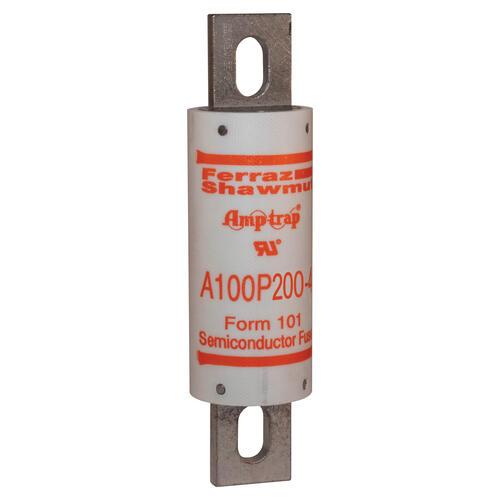

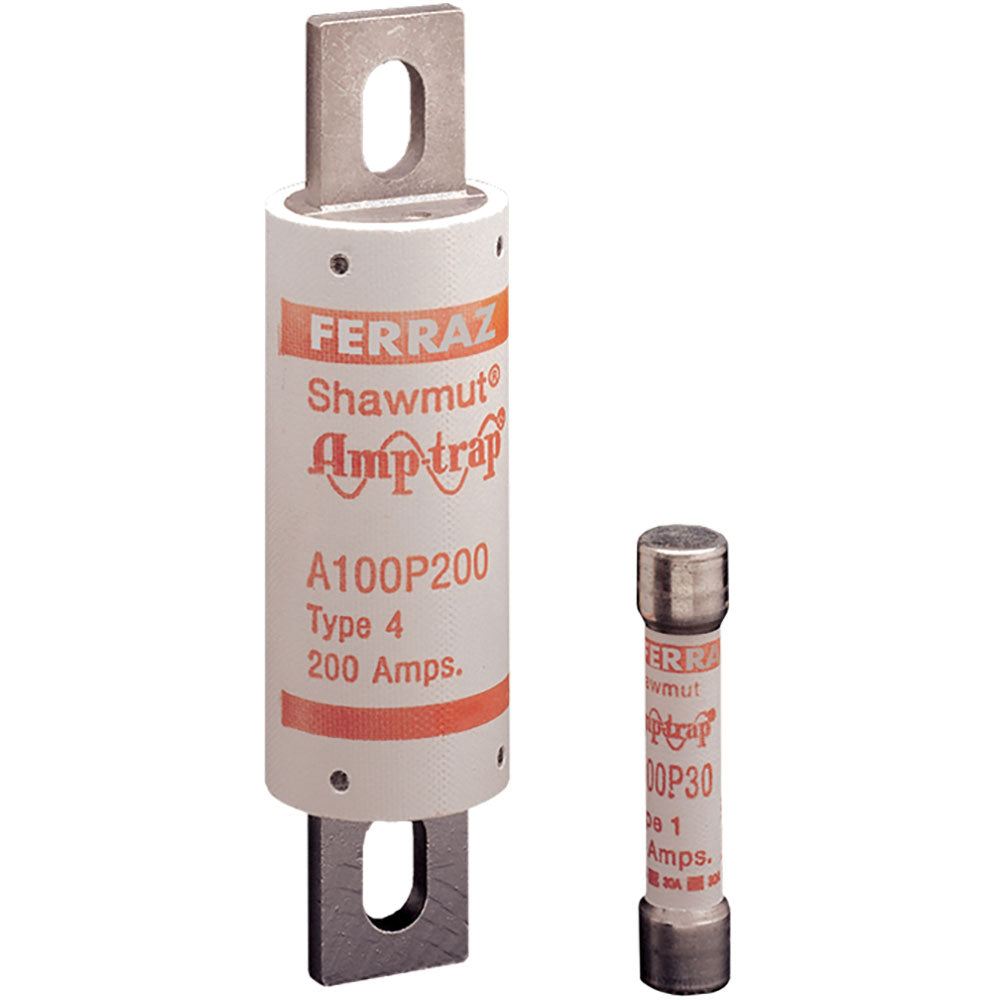

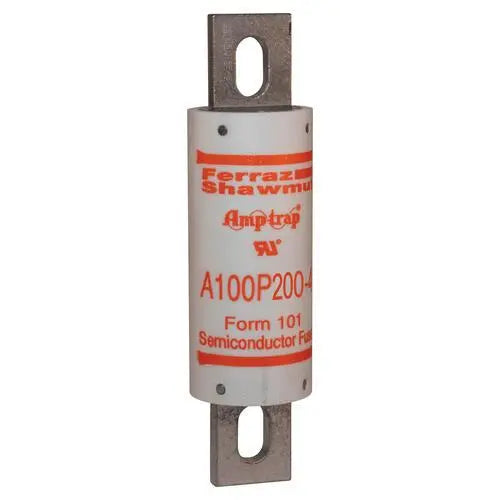

A100P200-4 is a high-speed, current-limiting semiconductor fuse designed for robust circuit protection in demanding applications.
This Mersen (Ferraz Shawmut) fuse offers superior reliability and fast-acting performance, ideal for protecting 1000V or less DC drives, UPS systems, inverters, and reduced voltage starters. Its controlled arc voltage reduces stress to circuit components during clearing, and it is recognized for use in critical power distribution environments.
-
Key Specifications
- Amperage: 200A
- Voltage: 1000V AC (600V AC, 750V DC ratings also listed)
- Poles: Not applicable (fuse)
- Mounting Type: Bolted
- Interrupt Rating: 100,000 AIC (AC & DC)
- Series/Frame: A100P, Form 101
- Trip Unit: Not applicable (fuse)
- Certifications: UL Recognized Component (UL File E60314)
- Body Material: GMG
- Connection/Terminal Material: Tin-plated brass
- Physical Size: 1.5" x 5.72"
- Application: Protection of semiconductor devices, UPS, AC/DC drives, reduced voltage starters
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: A100P200-4
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 1000
- Amperage : 200
- AIC rating : 100kA@1000V
- Diameter : 2
- Barrels : 1
Product Data
- UPC : 78200194853
- GTIN : 00782001948535
- Weight : 0.6
- Certification : UL
