Product Info
- Manufacturer:Mersen
- Sub-Category:Medium Voltage Fuse
Description
A055F2D0R0-250E

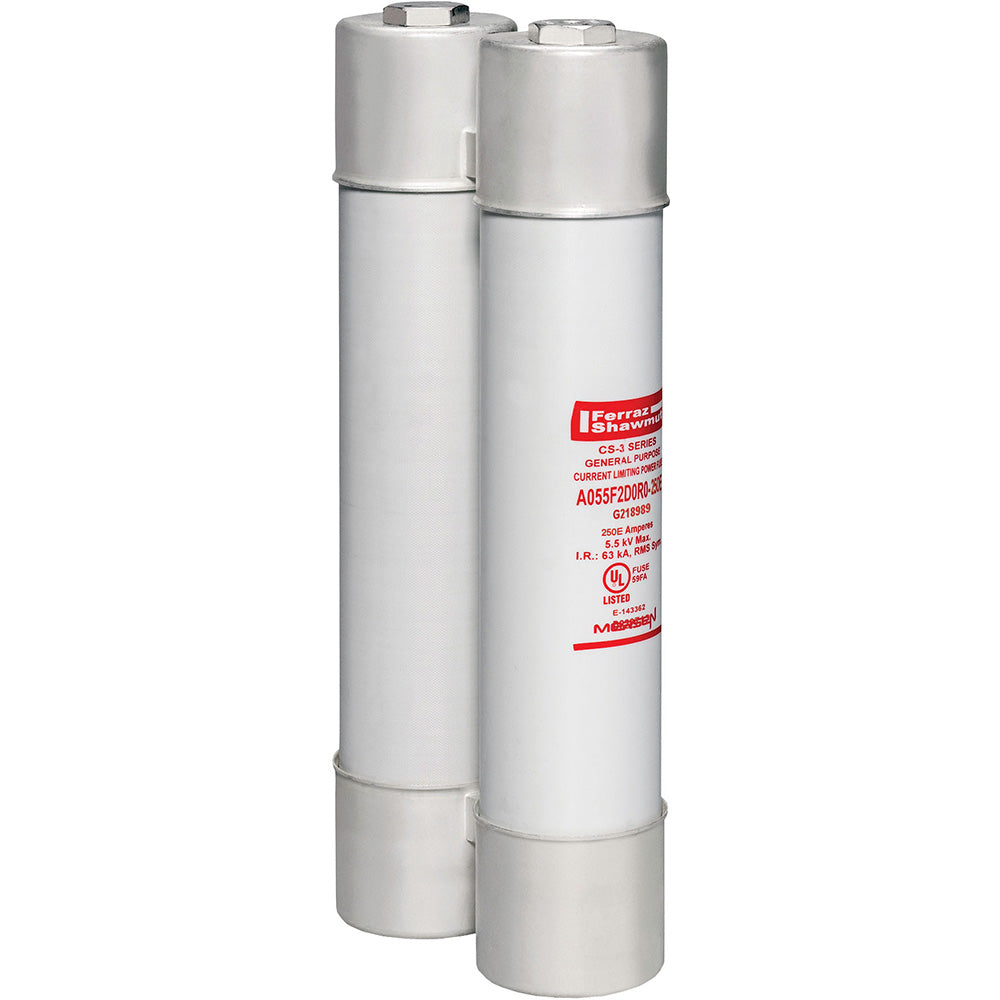

A055F2D0R0-250E is a 250 Amp, 5.5 kV ferrule mounted fuse designed for transformer protection.
This Mersen fuse features a ferrule mounting type with a 5.5 kV voltage rating and a 250 Amp current rating. It includes a visual indicator for fuse status and is constructed with PolyTube insulation material. The fuse has an interrupt rating of 63 kA AC and is UL listed, making it suitable for medium voltage transformer and distribution system protection. It is engineered to withstand transformer magnetizing inrush currents and operates reliably up to 80 degrees Celsius maximum temperature.
- Key Specifications
- Amperage: 250 Amp
- Voltage Rating: 5.5 kV AC
- Mounting Type: Ferrule Mounted
- Interrupt Rating: 63 kA AC
- Insulation Material: PolyTube
- Visual Indicator: Yes
- Maximum Operating Temperature: 80 degrees Celsius
- UL Listed
- Application: Transformer and distribution system protection
- Part Number: A055F2D0R0-250E
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : CS-3 Series
- Type : A055F2D
- Voltage : 5500
- Amperage : 250
- AIC rating : [email protected]
- Diameter : 3
- Class Rating : E
- Barrels : 2
- Clip Center : 12
- UPC : 782001804282
- GTIN : 00782001804282
- Country of Origin : Mexico
- Dimensions : x 15.88 in x
- Weight : 7
