Product Info
- Manufacturer:Mersen
- Sub-Category:Medium Voltage Fuse
Description

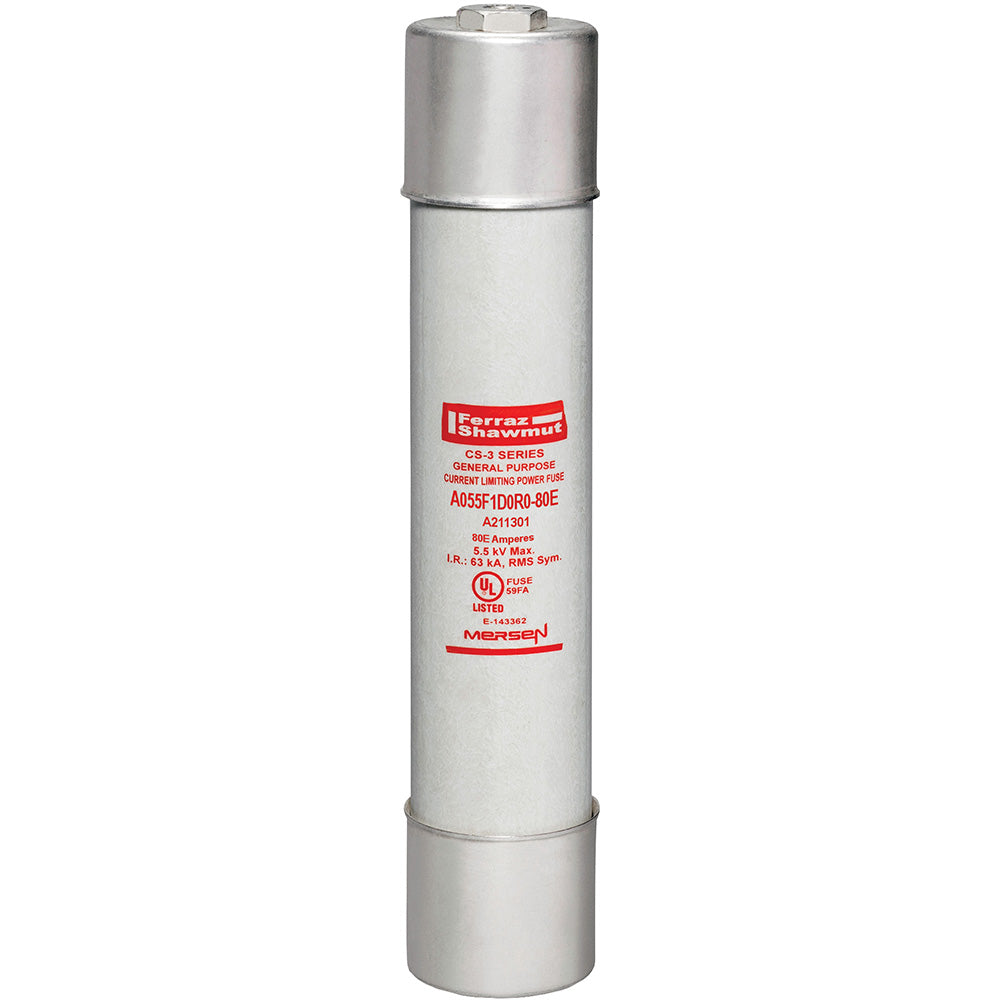

A055F1D0R0-80E
A055F1D0R0-80E is a medium-voltage transformer fuse designed to provide overload and short-circuit protection for transformers and distribution lines. Mersen engineered this current-limiting fuse to withstand transformer magnetizing inrush current while delivering reliable protection at voltages up to 5.5 kV. The fuse melts at currents as low as 1.7 times its rated amperage up to its maximum interrupting capacity, ensuring superior equipment protection with non-venting silent operation. Key Specifications
- Amperage Rating: 80 Amps
- Voltage Rating: 5500 Volts (5.5 kV)
- Interrupting Rating: 63 kA at 5.5 kV
- Body Material: Polytube
- Terminal Material: Silver-Plated Copper
- Connection Type: Ferrule
- Mounting: Spring Reinforced Clip

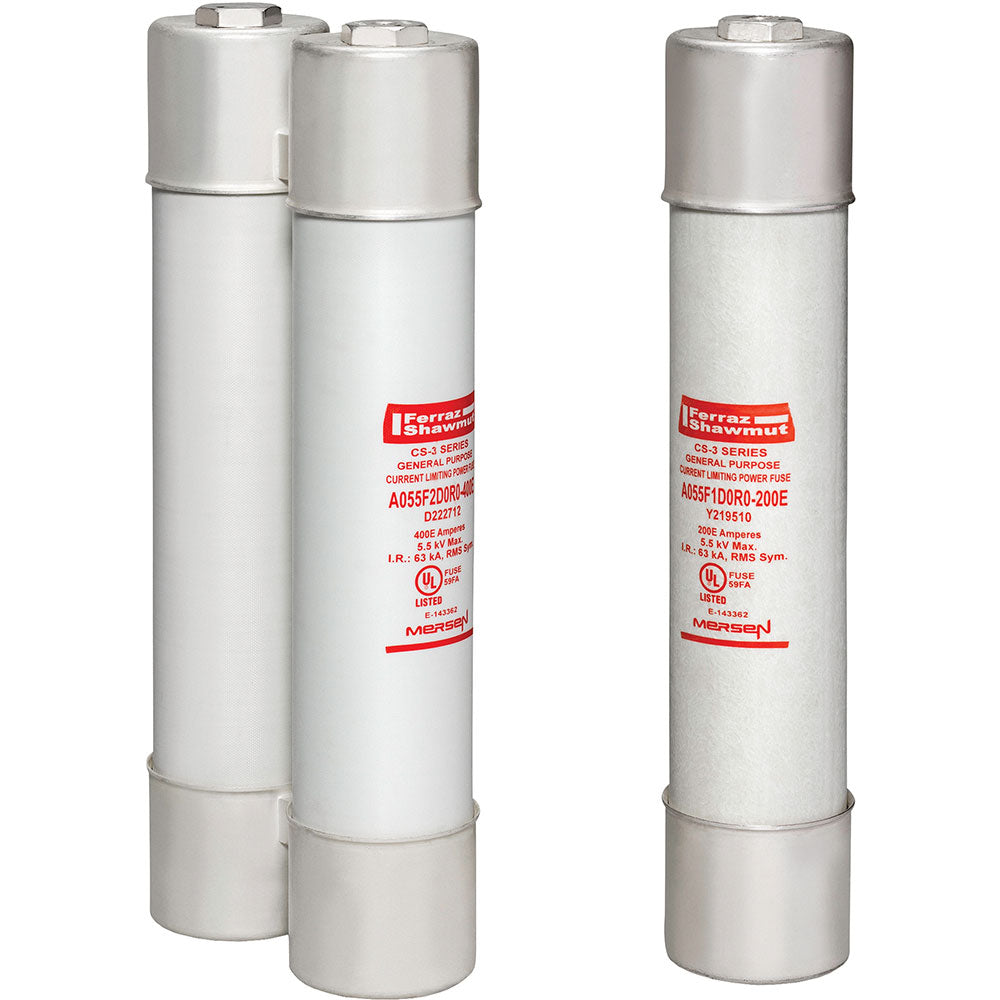

- Barrel Sizes: 2 inch (Size C), 3 inch (Size D), 2x3 inch (Size DD)
- Fuse Class: E
- Protection Type: Transformer
- Indication System: Visual Indicator
- UL Listed
Specifications
- Part Number: A055F1D0R0-80E
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : CS-3 Series
- Type : A055F1D
- Voltage : 5500
- Amperage : 80
- AIC rating : [email protected]
- Diameter : 3
- Class Rating : E
- Barrels : 1
- Clip Center : 12
Product Data
- UPC : 782001804220
- GTIN : 00782001804220
- Country of Origin : Mexico
- Dimensions : x 15.88 in x
- Weight : 7
- Certification : UL
