Product Info
- Manufacturer:Mersen
- Sub-Category:Medium Voltage Fuse
Description

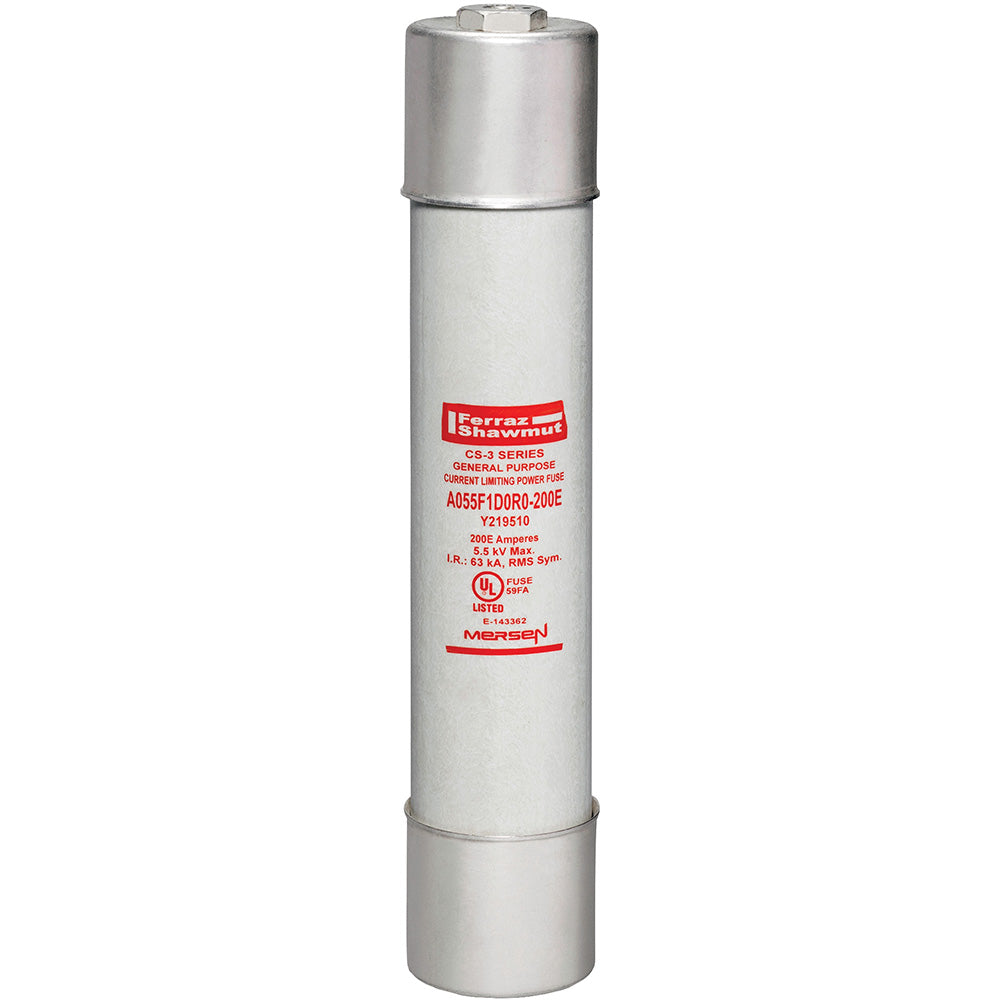

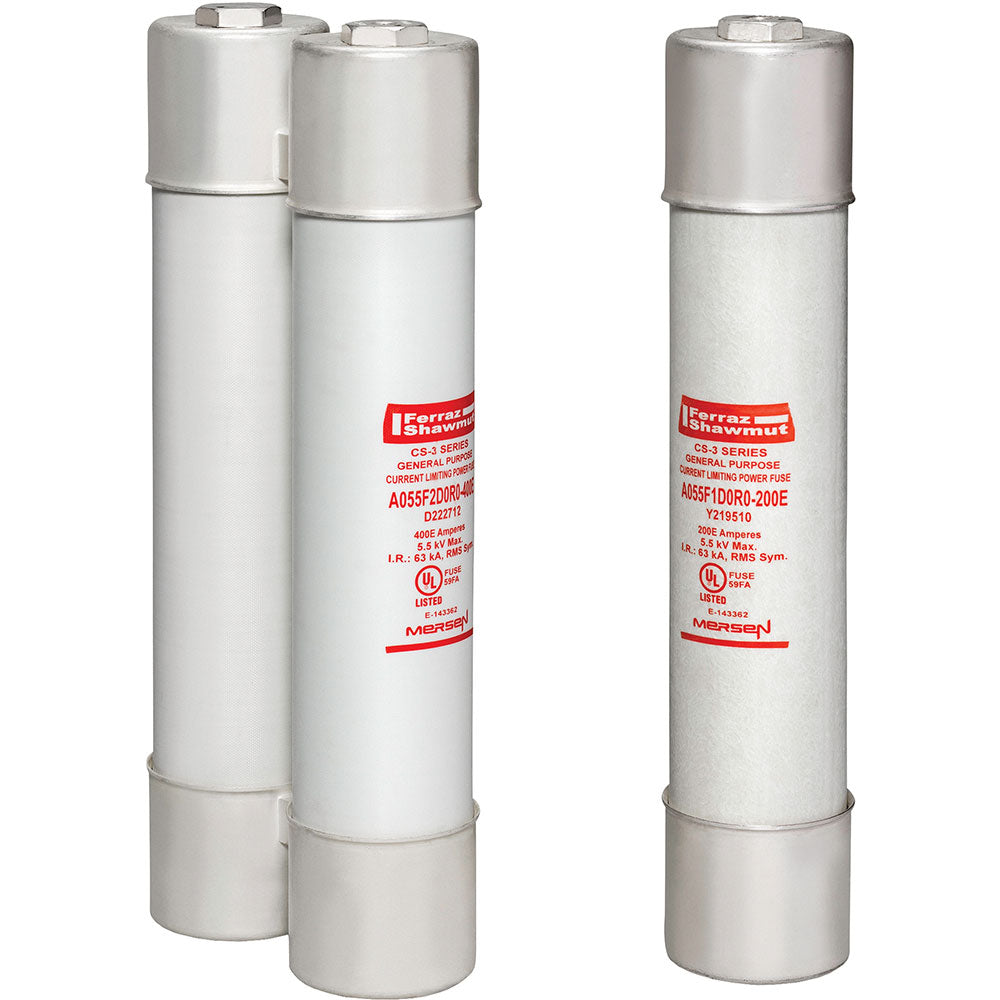

A055F1D0R0-200E
A055F1D0R0-200E is a medium voltage E-rated transformer protection fuse designed for 5.5 kV AC systems with a 200 ampere rating and ferrule mount configuration. This current-limiting fuse delivers overload and short circuit protection for transformers and distribution lines, engineered to withstand transformer magnetizing inrush current while melting at currents as low as 1.7 times the fuse rating up to its maximum interrupting capacity. The fuse features a 3 inch diameter barrel with spring reinforced clip mounting and visual indicator for blown fuse detection.
- Rated Voltage: 5500 V AC
- Ampere Rating: 200 A
- Speed Characteristic: E-Rated
- Mounting Type: Ferrule with Spring Reinforced Clip
- Maximum Interrupting Rating: 63 kA
- Frequency: 50/60 Hz
- Product Diameter: 3 inches
- Product Length: 15.88 inches
- Connection Terminal Material: Silver-Plated Copper
- Body Material: PolyTube
- Indication System: Visual Indicator
- UL Listed
Specifications
- Part Number: A055F1D0R0-200E
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : CS-3 Series
- Type : A055F1D
- Voltage : 5500
- Amperage : 200
- AIC rating : [email protected]
- Diameter : 3
- Class Rating : E
- Barrels : 1
- Clip Center : 12
Product Data
- UPC : 782001804275
- GTIN : 00782001804275
- Country of Origin : Mexico
- Dimensions : x 15.88 in x
- Weight : 7
- Certification : Some UL listed to standard File E143362
