Product Info
- Manufacturer:Mersen
- Sub-Category:Medium Voltage Fuse
Description
A055B2D0R0-500E

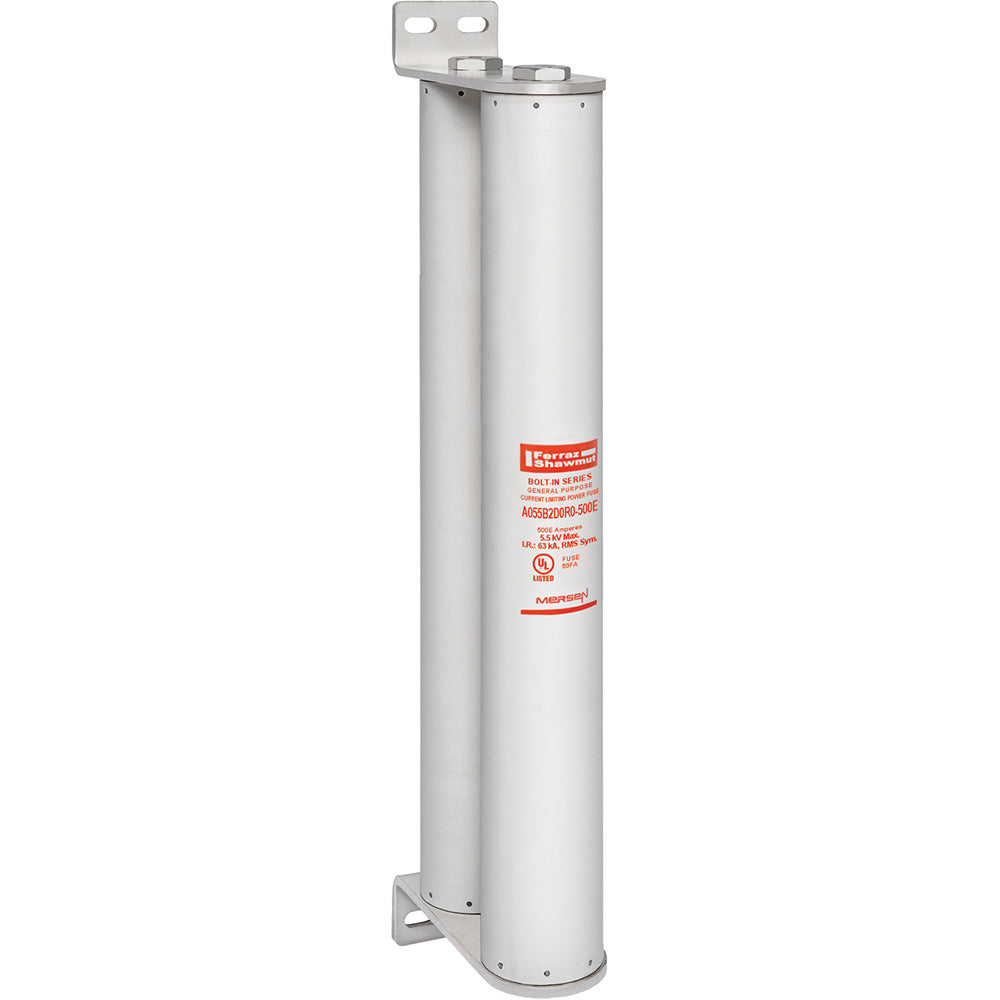

A055B2D0R0-500E is a 5500VAC 500A medium voltage E-rated bolt-on fuse designed for transformer protection and overload and short circuit protection in distribution systems. This Mersen Amp-Trap fuse features a visual indicator for blown fuse detection, current limiting technology for superior equipment protection, and non-venting operation for silent performance. The bolt-in mounting design allows for direct connection to bus or terminals, making installation straightforward and reliable.
- Voltage Rating: 5500VAC (5.5kV)
- Amperage Rating: 500A
- Mounting Type: Bolt-On
- Series: D0R0 Amp-Trap
- Fuse Type: E-Rated Medium Voltage
- Indication System: Visual Indicator
- Application: Transformer Protection, 2.4kV to 5.5kV Systems
- Features: Current Limiting, Non-Venting, Metal Embossed
Specifications
- Part Number: A055B2D0R0-500E
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : Amp-Trap Bolt-In Series
- Type : A055B2
- Voltage : 5500
- Amperage : 500
- AIC rating : [email protected]
- Diameter : 3
- Class Rating : E
- Barrels : 2
Product Data
- UPC : 782001327088
- GTIN : 00782001327088
- Weight : 32
