Product Info
- Manufacturer:Mersen
- Sub-Category:Medium Voltage Fuse
Description

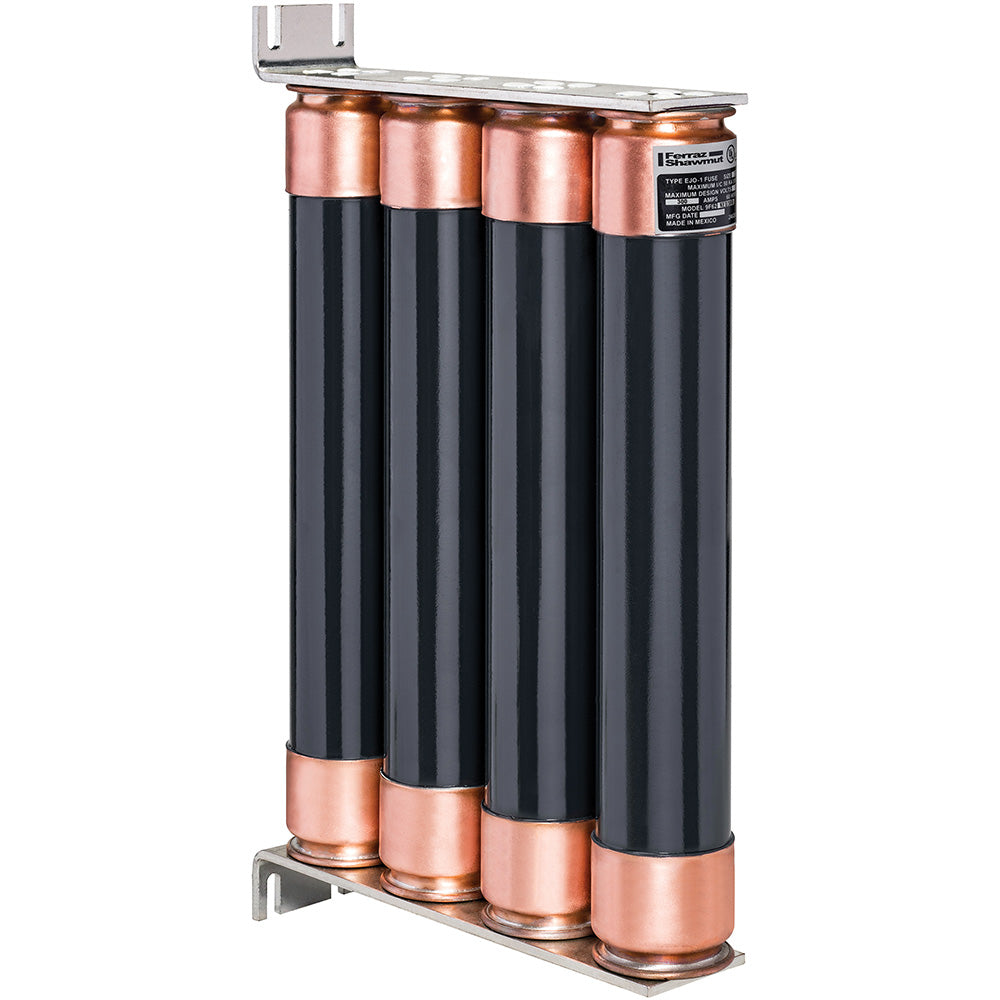

9F62KED300
9F62KED300 is a medium voltage E-rated bolt-on transformer fuse designed for reliable protection in 15.5kV distribution systems. This fuse features a blade terminal and epoxy insulating material for secure, long-lasting performance in demanding electrical environments. The Mersen 9F62KED300 is engineered for transformer protection with a visual indicator and Amp-Trap technology. It is suitable for use in both 50 Hz and 60 Hz systems, providing dependable overcurrent protection for power distribution applications.
- Amperage: 300A
- Voltage Rating: 15,500V AC
- Mounting Type: Bolt-On
- Terminal Type: Blade
- Insulating Material: Epoxy
- Protection Type: Transformer
- Series: KED
- Speed/Characteristic: E-Rated
- Frequency: 50/60 Hz
- Application: 15.5kV Transformers and Distribution Systems
- Terminal Material: Tin-Plated Copper
- UL Category Code: JEEG
Specifications
- Part Number: 9F62KED300
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : 9F62 Series
- Type : 9F62KED
- Voltage : 15500
- Amperage : 300
- AIC rating : [email protected]
- Diameter : 3
- Class Rating : E
- Barrels : 4
Product Data
- UPC : 782001395667
- GTIN : 00782001395667
- Weight : 50
- Certification : Some UL Listed to standard E143362
