Product Info
- Manufacturer:Mersen
- Sub-Category:Medium Voltage Fuse
Description
9F62FCB300

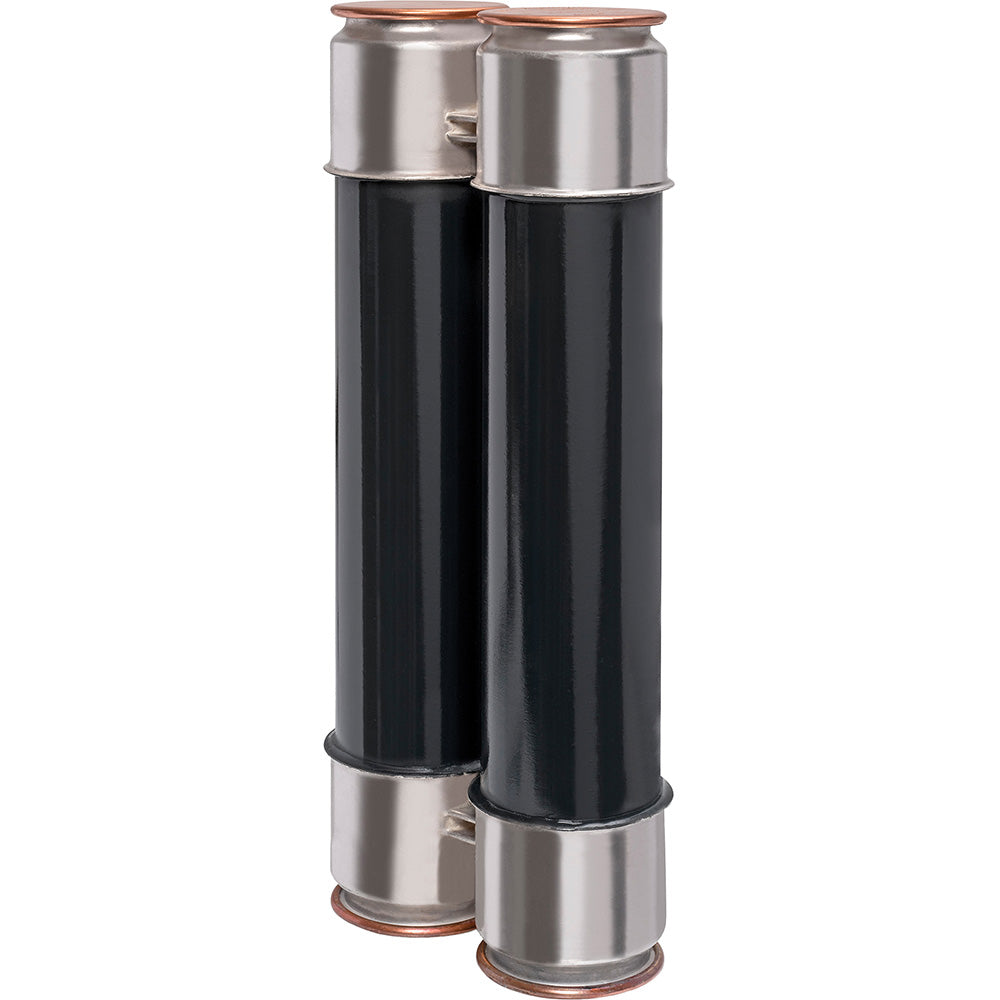

9F62FCB300 is a Mersen AMP-TRAP® Type EJO1 2-barrel general purpose medium voltage transformer protection fuse rated at 300 amps and 5500 volts AC.9F62FCB300 features a ferrule body design with a 50 kA interrupt rating, suitable for indoor and outdoor transformer protection applications. It includes a visual indicator for fuse status and uses spring reinforced clip mounting for secure installation. This fuse is UL approved and designed to withstand transformer magnetizing inrush current.
- Amperage: 300 A
- Voltage Rating: 5500 VAC
- Fuse Type: E-Rated Transformer Protection
- Barrel Configuration: 2-Barrel (Type EJO1)
- Interrupt Rating: 50 kA
- Mounting Type: Spring Reinforced Clip
- Body Style: Ferrule
- Visual Indicator: Yes
- UL Approved
- Designed for Indoor/Outdoor Use
- Series/Frame: FCB
Specifications
- Part Number: 9F62FCB300
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : 9F62 Series
- Type : 9F62FCB
- Voltage : 5500
- Amperage : 300
- AIC rating : [email protected]
- Diameter : 3
- Class Rating : E
- Barrels : 2
- Clip Center : 12
Product Data
- UPC : 782001395841
- GTIN : 00782001395841
- Weight : 18
- Certification : Some UL listed to standard File E143362
