Product Info
- Manufacturer:Mersen
- Sub-Category:Medium Voltage
Description
9F60DNJ010

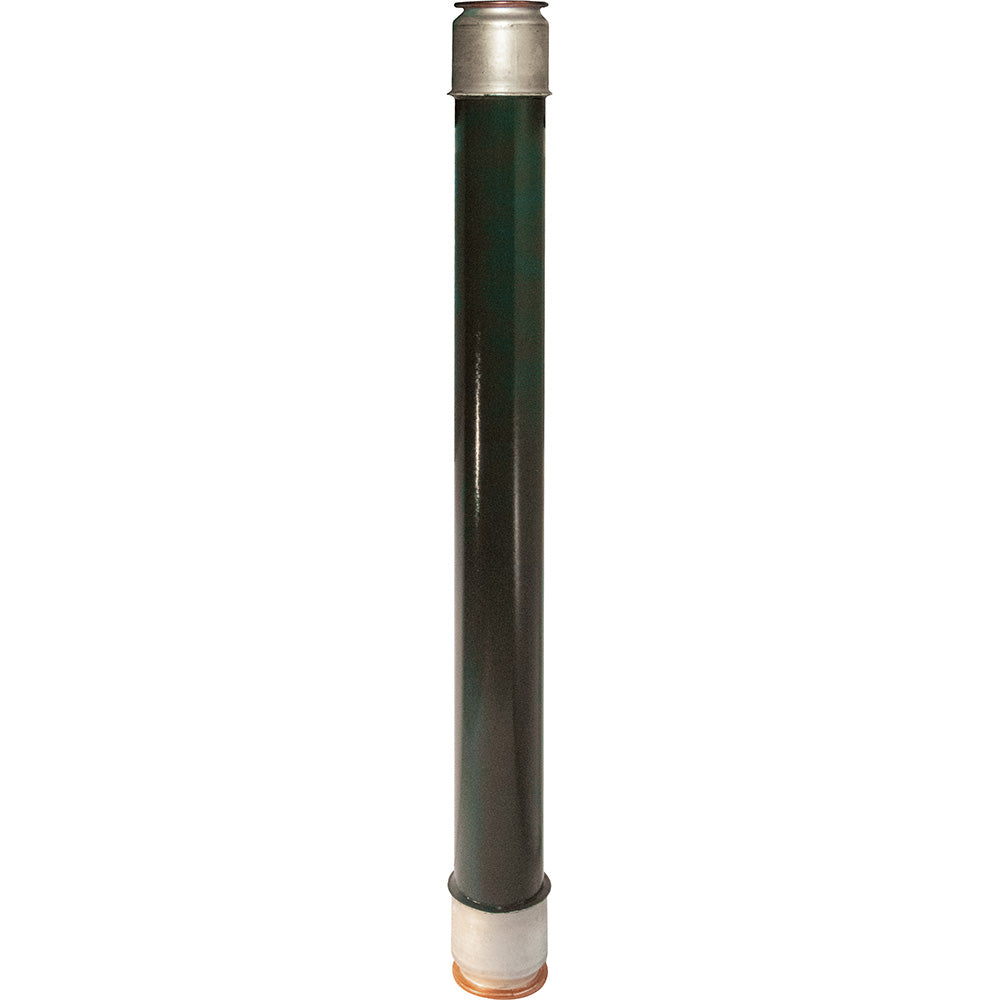

9F60DNJ010 is a Mersen 25.8kV medium voltage ferrule mount transformer protection fuse rated at 10 amperes with E-rated fast response characteristics. This current-limiting fuse is engineered to withstand transformer magnetizing inrush current and deliver superior equipment protection for 16 kV to 25 kV distribution systems and transformer applications. The fuse features a 2 inch (size C) barrel with ferrule mounting for standard spring-reinforced clips, non-venting operation for silent performance, and a blown-fuse visual indicator for positive identification. Metal embossed catalog number and manufacturing date provide lasting identification.
- Voltage Rating: 25.8 kVAC
- Current Rating: 10 Amperes
- Fuse Type: Cartridge, Medium Voltage E-Rated
- Barrel Size: 2 inch (Size C)
- Mounting: Ferrule with Spring-Reinforced Clips
- Response Time: Fast Blow
- Current-Limiting: Melts at 1.7 times rated current minimum
- Operating Temperature Range: -25 to 80 degrees Celsius
- Frequency: 50/60 Hz
- Applications: Transformer and distribution line protection
- Visual Indicator: Blown-fuse indicator included
Specifications
- Part Number: 9F60DNJ010
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Medium Voltage
- Family : 9F60 Series
- Type : EJO-1
- Voltage : 25800
- Amperage : 10
- AIC rating : [email protected]
- Diameter : 2
- Class Rating : E
- Barrels : 1
- Clip Center : 21
Product Data
- UPC : 078200139689
- GTIN : 00782001396893
- Weight : 1
