Product Info
- Manufacturer:Mersen
- Sub-Category:Medium Voltage Fuse
Description
9F60DMH905

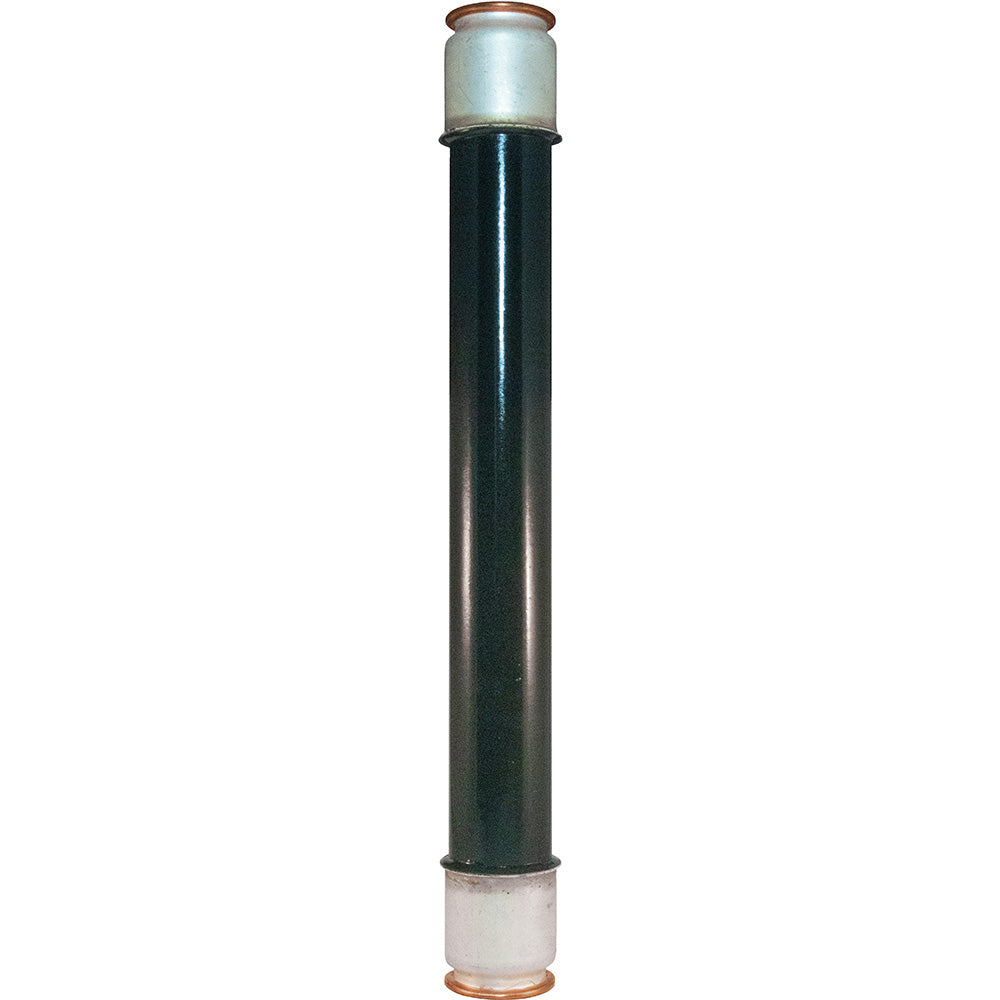

9F60DMH905 is a Mersen 9F60 Series medium voltage E-rated fuse designed for transformer protection and power distribution applications in systems rated 12 kV to 15.5 kV. This ferrule-connected fuse delivers reliable current-limiting protection with a non-venting design for silent operation and includes a blown-fuse indicator for positive identification of open fuses. The fuse features metal embossed catalog number and manufacturing date for lasting identification, along with Amp-Trap technology for enhanced protection.
- Voltage Rating: 15500V AC
- Amperage: 0.5A
- Connection Type: Ferrule
- Series: 9F60 DMH
- Body Material: Epoxy
- Barrel Configuration: 1 Barrel
- Indicating Diameter: 2 inches
- Application: Transformer Protection and Power Distribution
- Features: Non-venting, Visual Indicator, Amp-Trap
- Certification: UL Listed EJO-1
Specifications
- Part Number: 9F60DMH905
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : 9F60 Series
- Type : EJO-1
- Voltage : 15500
- Amperage : 0.5
- AIC rating : [email protected]
- Diameter : 2
- Class Rating : E
- Barrels : 1
- Clip Center : 15
Product Data
- UPC : 782001396732
- GTIN : 00782001396732
- Weight : 1
- Certification : Some UL listed to standard File E143362
