Product Info
- Manufacturer:Mersen
- Sub-Category:Medium Voltage Fuse
Description

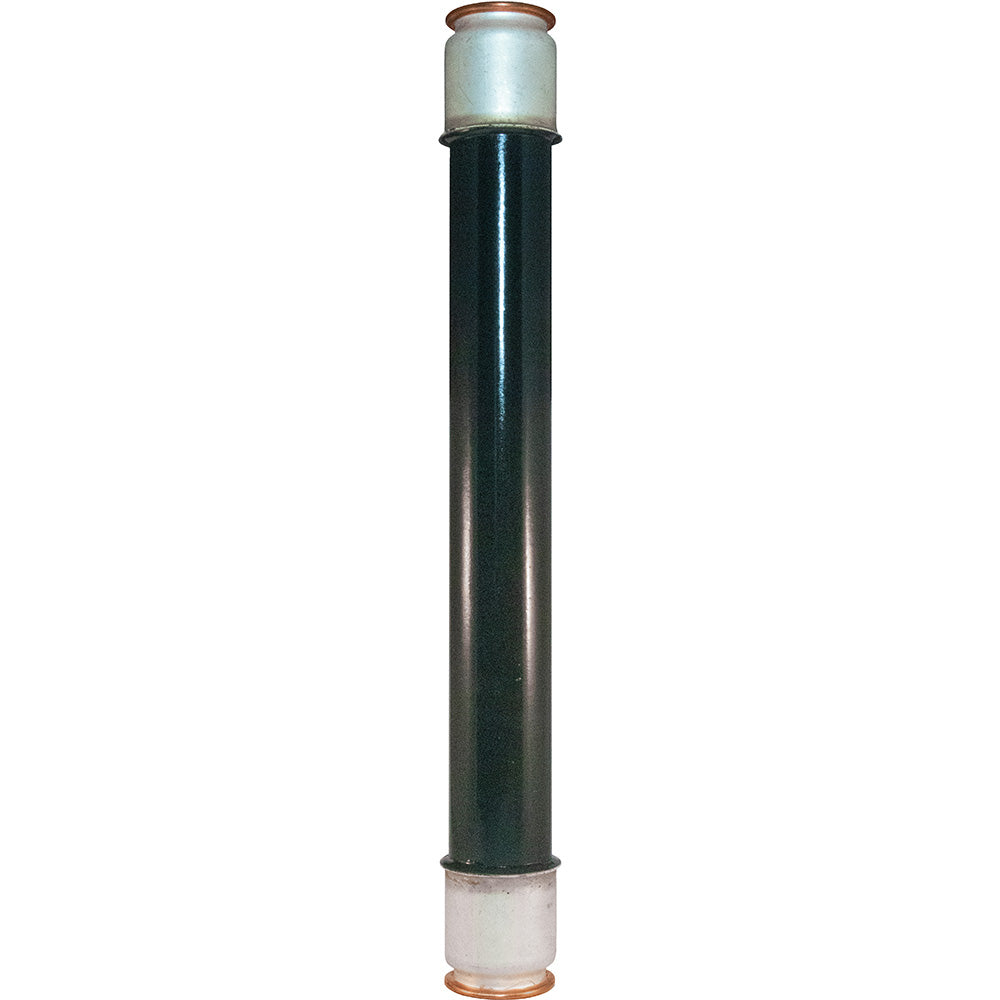

9F60DMH010
9F60DMH010 is a medium voltage transformer protection fuse designed by Mersen to withstand magnetizing inrush currents in transformer applications. This Class E ferrule-mount fuse provides reliable protection for 12 kV to 15.5 kV transformers and distribution systems with a compact, proven design. Key Specifications
- Amperage Rating: 10 A
- Voltage Rating: 15500 VAC
- Interrupt Rating: 120 kA
- Class: E
- Body Type: Ferrule
- Series: DMH
- Frequency: 60 Hz
- Insulating Material: Epoxy
- Application: Transformer Protection
- Length: 17.2 inches
Specifications
- Part Number: 9F60DMH010
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : 9F60 Series
- Type : EJO-1
- Voltage : 15500
- Amperage : 10
- AIC rating : [email protected]
- Diameter : 2
- Class Rating : E
- Barrels : 1
- Clip Center : 15
Product Data
- UPC : 782001396725
- GTIN : 00782001396725
- Country of Origin : Mexico
- Dimensions : x 17-1/5 in x
- Weight : 1
