Product Info
- Manufacturer:Mersen
- Sub-Category:Medium Voltage Fuse
Description
9F60DMH007

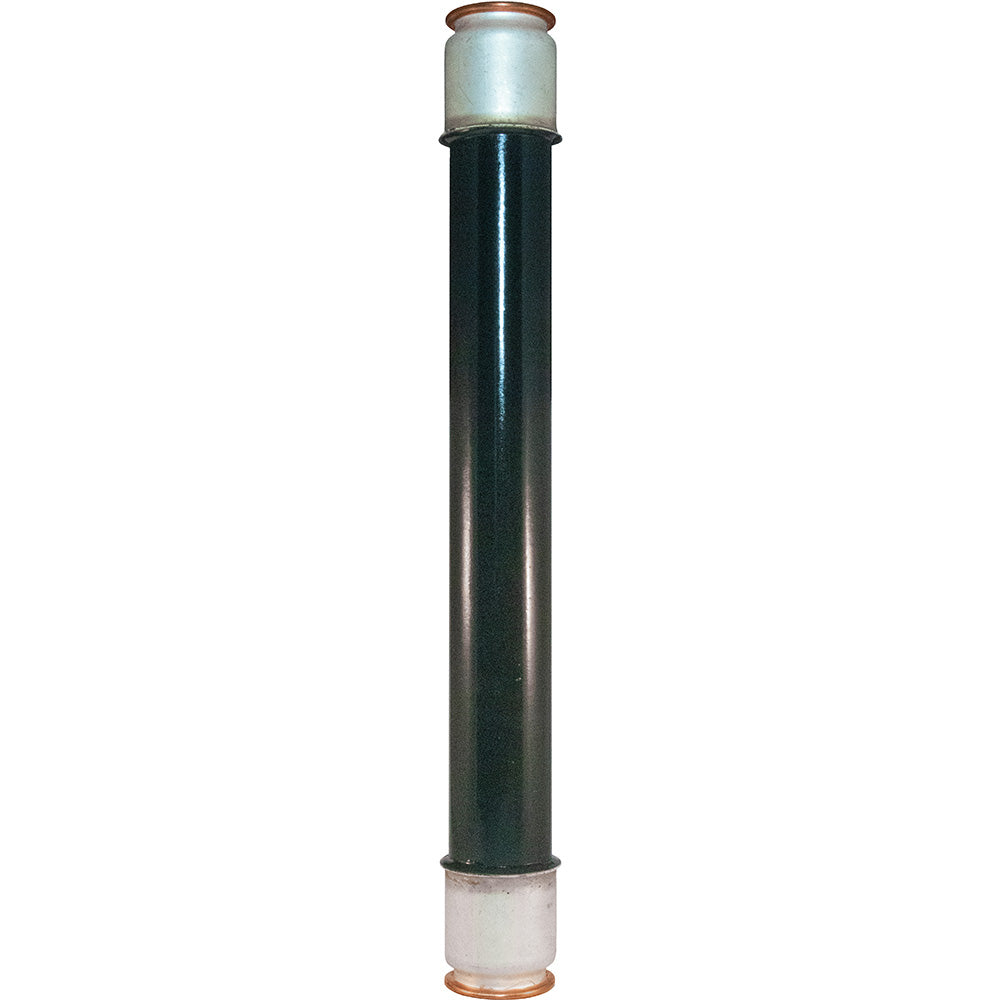

9F60DMH007 is a Mersen AMP-TRAP current limiting medium voltage power distribution transformer fuse designed to withstand magnetizing inrush current in transformer applications. This ferrule-mount fuse combines reliable protection with proven performance in indoor and outdoor installations requiring medium voltage distribution.Key Specifications
- Part Number: 9F60DMH007
- Manufacturer: Mersen
- Amperage Rating: 7 Amp
- Voltage Rating: 15500 VAC (15.5 kV)
- Interrupt Rating: 120 kA
- Fuse Class: E
- Body Type: Ferrule
- Connection Type: Ferrule Mount
- Product Type: Current Limiting Medium Voltage Fuse
- Application: Transformer Protection
- UL Approved
Specifications
- Part Number: 9F60DMH007
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : 9F60 Series
- Type : EJO-1
- Voltage : 15500
- Amperage : 7
- AIC rating : [email protected]
- Temp Rating : -13–158 °F (-25–70 °C)
- Diameter : 2
- Class Rating : E
- Barrels : 1
- Clip Center : 15
Product Data
- UPC : 782001396701
- GTIN : 00782001396701
- Country of Origin : Mexico
- Dimensions : x 17-1/5 in x
- Weight : 1
- Temp Rating : -13–158 °F (-25–70 °C)
