Product Info
- Manufacturer:Mersen
- Sub-Category:Medium Voltage Fuse
Description

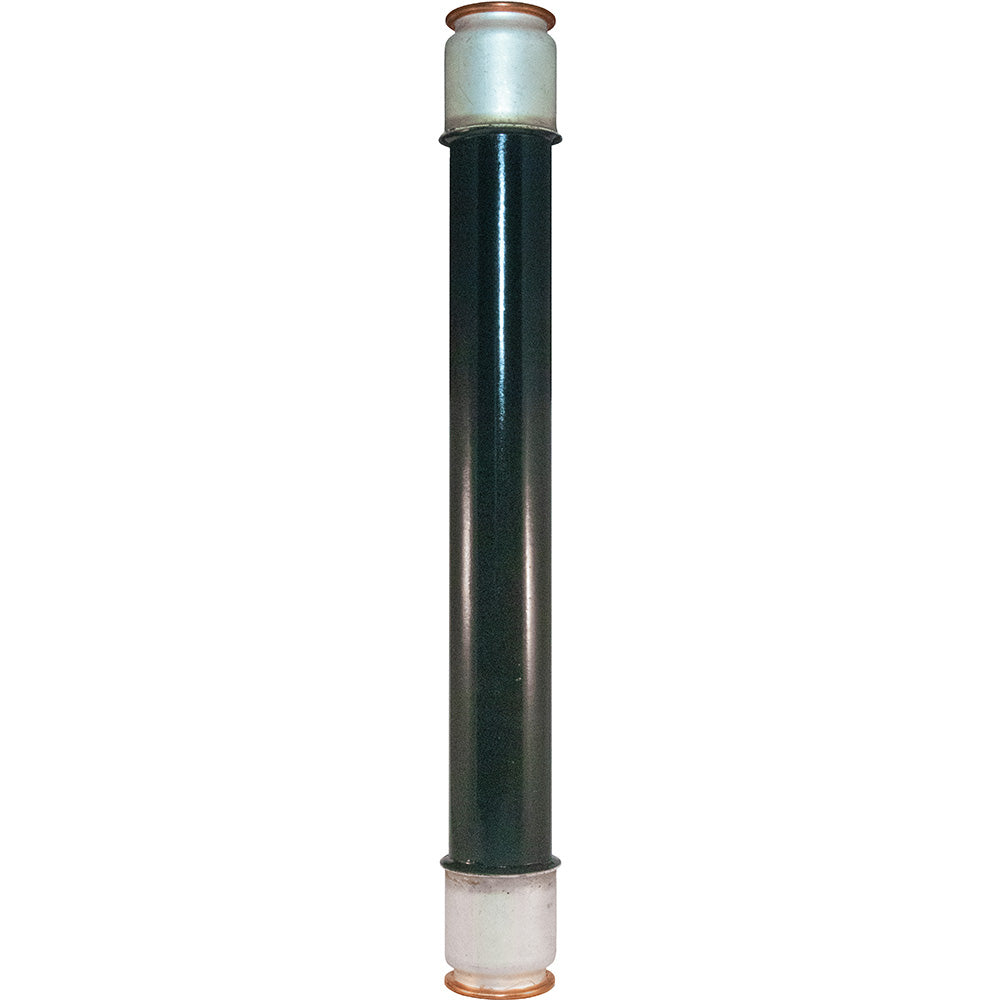

9F60DMH002
9F60DMH002 is a medium voltage E-rated power distribution fuse designed for protection in 12 kV to 15.5 kV transformer and distribution systems. This fuse is engineered to withstand transformer magnetizing inrush current and is suitable for both indoor and outdoor applications. The Mersen 9F60DMH002 features a ferrule body type and is designed for use with holders, providing reliable protection in demanding environments. It is part of the 9F60 series and is commonly used in power distribution networks where high interrupt capacity and durability are required.
- Part Number: 9F60DMH002
- Manufacturer: Mersen
- Amperage Rating: 2 A
- Voltage Rating AC: 15.5 kVAC
- Interrupt Rating: 120 kA at 15.5 kVAC
- Mounting Style: Holder
- Termination Style: Clip
- Fuse Type: Medium Voltage E-Rated
- Series: 9F60
- Body Type: Ferrule
- Application: Protection for 12 kV to 15.5 kV transformers or distribution systems
- Designed to withstand transformer magnetizing inrush current
Specifications
- Part Number: 9F60DMH002
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : 9F60 Series
- Type : EJO-1
- Voltage : 15500
- Amperage : 2
- AIC rating : [email protected]
- Diameter : 2
- Class Rating : E
- Barrels : 1
- Clip Center : 15
Product Data
- UPC : 782001396541
- GTIN : 00782001396541
- Country of Origin : Mexico
- Dimensions : x 17-1/5 in x
- Weight : 1
