2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Mersen
- Sub-Category:Medium Voltage Fuse
Description
9F60DJD015

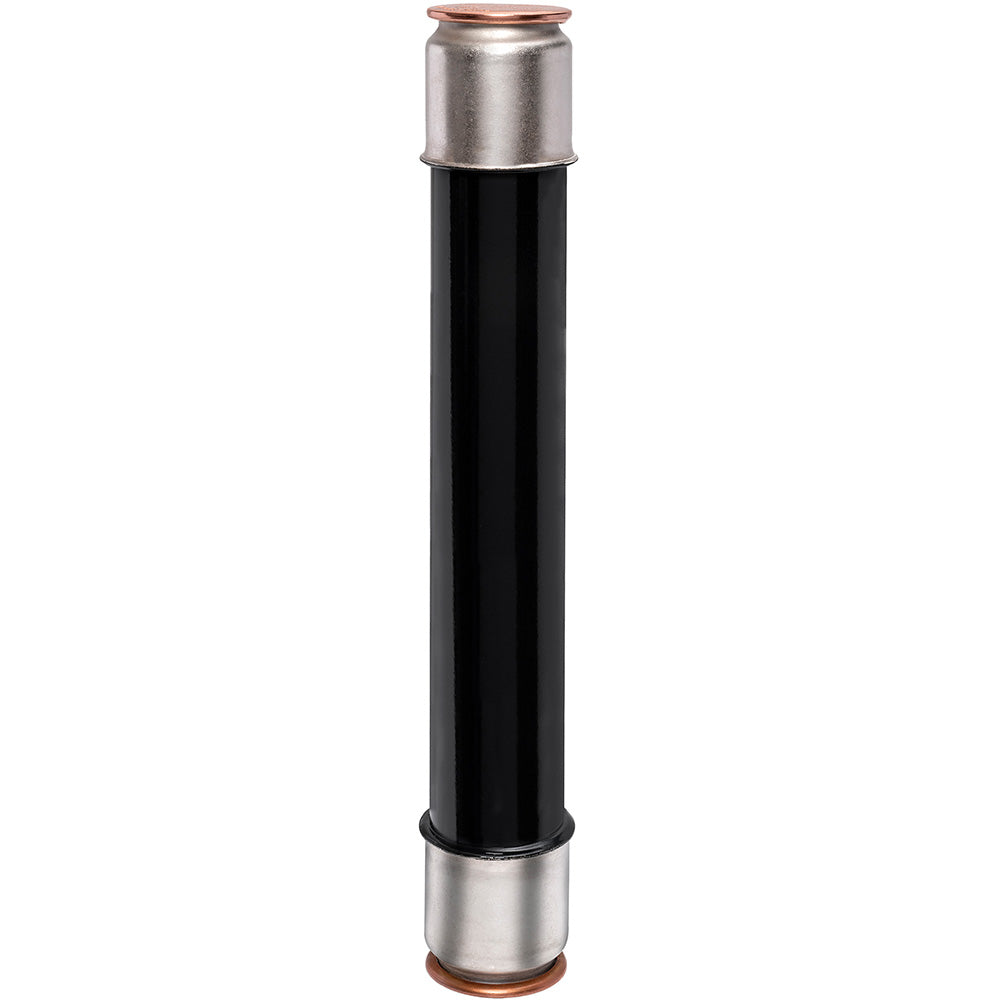

9F60DJD015 is a Mersen Type EJO1 medium voltage transformer fuse rated for 15 amperes at 5.5 kVAC with a 50 kA interrupt rating. This current-limiting fuse is engineered to protect transformers and distribution lines from overload and short circuit conditions while withstanding transformer magnetizing inrush current. The fuse features a ferrule body with clip mounting, silver-plated copper terminals, and an epoxy insulating material for reliable performance in outdoor applications. Key Specifications
- Part Number: 9F60DJD015
- Manufacturer: Mersen
- Amperage Rating: 15 Amp
- Voltage Rating: 5.5 kVAC
- Interrupt Rating: 50 kA
- Fuse Type: Cartridge
- Class: E
- Mounting: Ferrule with Clip
- Terminal Material: Silver-Plated Copper
- Body Material: Epoxy
- Response Time: Fast Blow
- Indication System: Visual Indicator
- Protection Type: Transformer
Specifications
- Part Number: 9F60DJD015
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : 9F60 Series
- Type : EJO-1
- Voltage : 5500
- Amperage : 15
- AIC rating : [email protected]
- Diameter : 2
- Class Rating : E
- Barrels : 1
- Clip Center : 12
Product Data
- UPC : 782001397524
- GTIN : 00782001397524
- Weight : 1
