Product Info
- Manufacturer:Mersen
- Sub-Category:Medium Voltage Fuse
Description
9F60BDD905

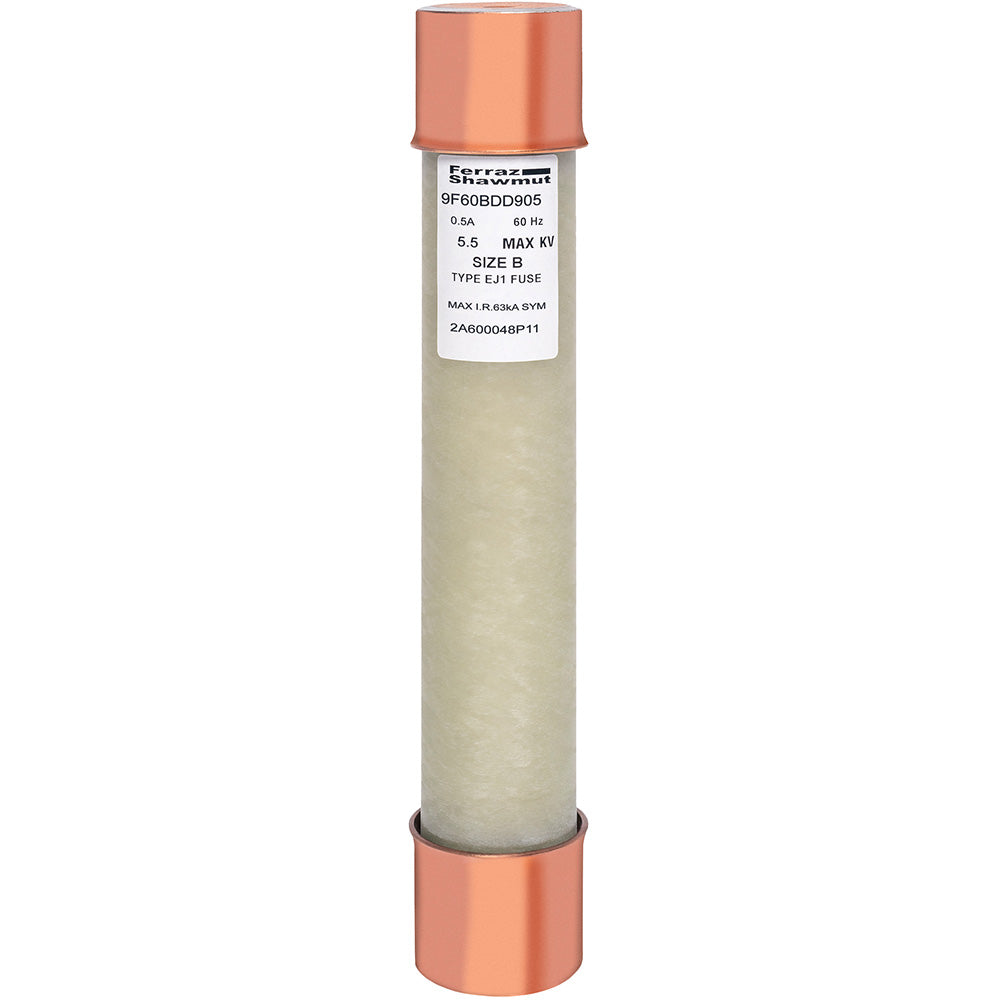

9F60BDD905 is a medium-voltage potential transformer fuse designed for primary winding protection in transformer applications. This current-limiting fuse delivers high interrupting capability and reliable performance in distribution systems up to 5.5kV. Key Specifications
- Manufacturer: Mersen
- Amperage Rating: 0.5A
- Voltage Rating: 5.5kV AC
- Fuse Type: Potential Transformer (PT)
- Mounting: Clip Mount
- Interrupt Rating: 63kA Maximum
- Speed Curve: E (Fast)
- Indication System: Visual Indicator
- Barrel Diameter: 1.562 Inch
- Overall Length: 9.5 Inch
- Current-Limiting Design for Superior Equipment Protection
Specifications
- Part Number: 9F60BDD905
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : 9F60 Series
- Type : 9F60BDD
- Voltage : 5500
- Amperage : 0.5
- AIC rating : [email protected]
- Diameter : 1.56
- Class Rating : E
- Barrels : 1
- Clip Center : 8.12
Product Data
- UPC : 782001397999
- GTIN : 00782001397999
- Weight : 5
