2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Mersen
- Sub-Category:Medium Voltage Fuse
Description
9F60AAA007

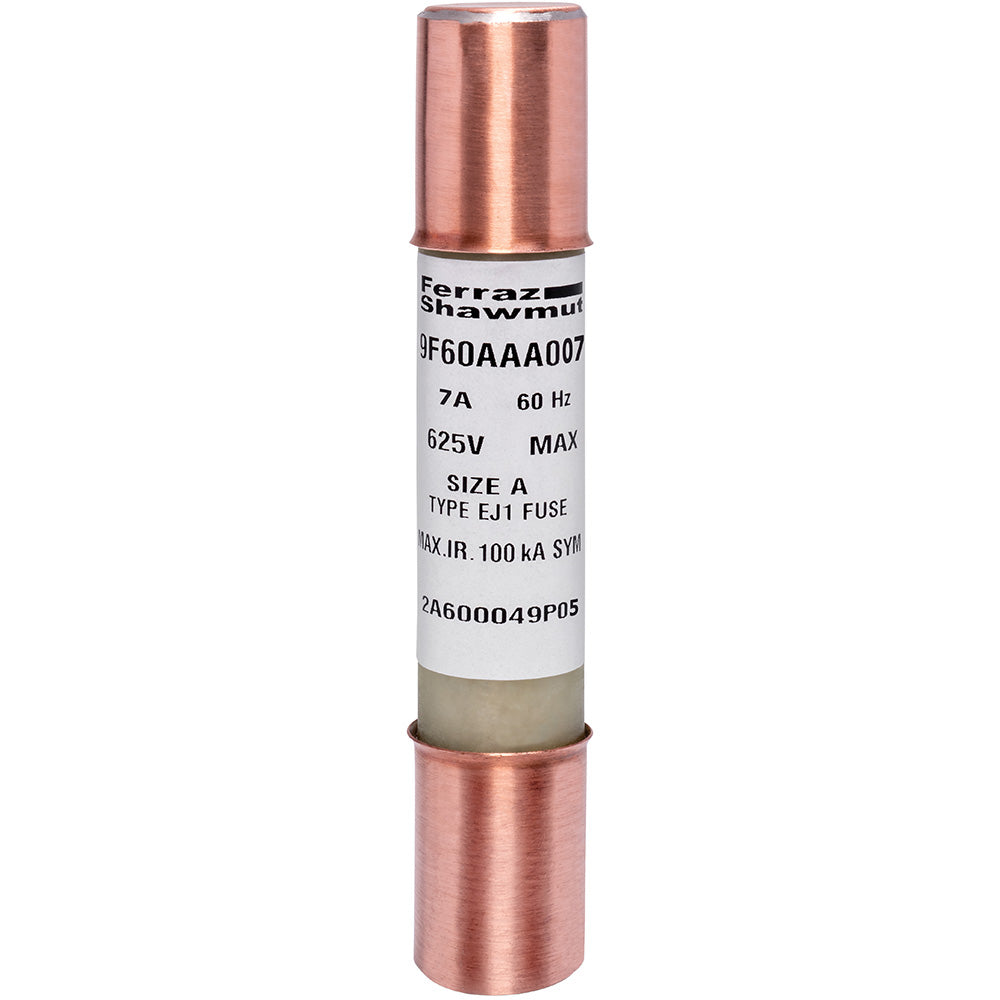

9F60AAA007 is a Mersen 9F60 Series medium voltage potential transformer fuse rated for 625VAC at 7 amperes with ferrule mounting and high interrupting capacity. This current-limiting fuse is designed specifically for transformer protection applications and features an epoxy insulating body with copper terminals for reliable performance in medium voltage distribution systems. The fuse operates at a maximum temperature of 80 degrees Celsius and is part of the Amp-Trap series for enhanced protection.
- Part Number: 9F60AAA007
- Manufacturer: Mersen
- Voltage Rating: 625VAC
- Amperage: 7A
- Series: 9F60 AAA Amp-Trap
- Fuse Type: Medium Voltage Potential Transformer
- Mounting Type: Ferrule Clip
- Body Material: Epoxy
- Terminal Material: Copper
- Maximum Operating Temperature: 80 degrees C
- Barrel Diameter: 0.81 inches
Specifications
- Part Number: 9F60AAA007
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : 9F60 Series
- Type : 9F60AAA
- Voltage : 625
- Amperage : 7
- AIC rating : [email protected]
- Diameter : 0.81
- Class Rating : E
- Barrels : 1
- Clip Center : 4.25
Product Data
- UPC : 782001397814
- GTIN : 00782001397814
- Weight : 25
