Product Info
- Manufacturer:General Electric
- Sub-Category:Medium Voltage
Description
9F59SBD121

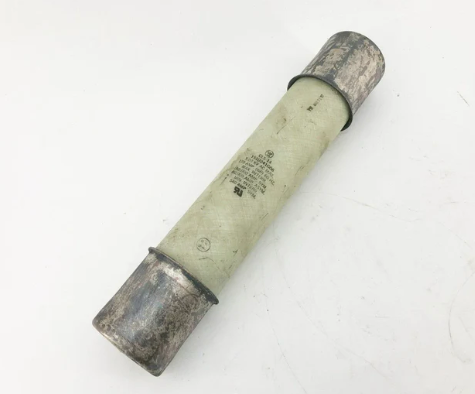

9F59SBD121 is a General Electric current limiting fuse designed for medium voltage applications at 15.5kV with a continuous current rating of 121 amperes and single pole configuration.This fuse provides high-speed interruption of high-magnitude short-circuit currents, ensuring reliable protection for electrical distribution systems. It features a current limiting design that reduces let-through energy and enhances system safety. The fuse is part of the 9F59 series, suitable for indoor or outdoor use with a mounting type compatible with standard fuse holders.
- Key Specifications
- Manufacturer: General Electric
- Part Number: 9F59SBD121
- Voltage Rating: 15.5 kV
- Continuous Current Rating: 121 A
- Poles: 1 (Single Pole)
- Interrupting Rating: 50,000 A symmetrical RMS
- Series: 9F59
- Mounting Type: Standard fuse mounting
- Current Limiting Type: Yes
- Part Number: 9F59SBD121
- Manufacturer : General Electric
- Brand : General Electric
- Category : Fuse
- Item Subcategory : Medium Voltage
- Type : ETP
- Voltage : 15500
- Amperage : 12
- Diameter : 2
- Class Rating : k
- Barrels : 1
- Weight : 4
