Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor And Motor Starter Auxiliary
Description
9999SX17

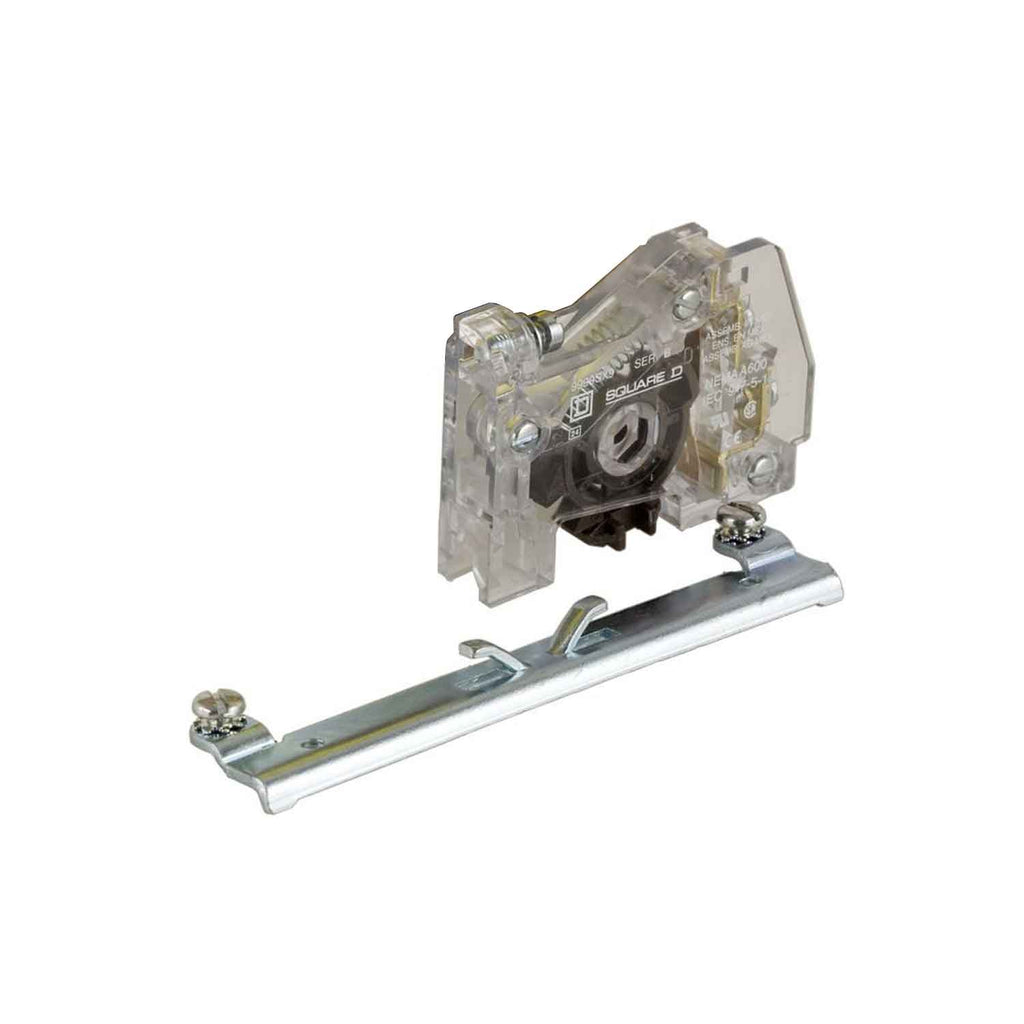

9999SX17 is a Square D Type S NEMA motor starter and contactor auxiliary contact block designed for motor control applications. This external, field-convertible auxiliary contact provides reliable switching for overlapping contactors and starters in industrial motor control systems. The unit features a single normally closed (1 NC) contact configuration and is rated for 600 volts maximum, making it suitable for a wide range of NEMA motor starter sizes from 00 to 7. The robust design includes replaceable parts for easy field service and maintenance. Key Specifications
- Part Number: 9999SX17
- Manufacturer: Square D (Schneider Electric)
- Product Type: Auxiliary Contact Block
- Contact Configuration: 1 NC (Normally Closed)
- Voltage Rating: 600 VAC Maximum
- Contact Amperage: 10 A
- Series: Type S NEMA Motor Starter and Contactor
- Mounting: External, Field Convertible
- Compatible NEMA Sizes: 00 to 7
- Design: Robust with Replaceable Parts
- UL 508 Certified
Specifications
- Part Number: 9999SX17
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor And Motor Starter Auxiliary
- Coil Voltage Maximum : 600V
- Coil Voltage Minimum : 600V
Product Data
- Country of Origin : Mexico
- Dimensions : Depth 9.25 in (235 mm) Width 18.15 in (461 mm) Height 31.50 in (800 mm)
- Weight : 2
- Certification : UL recognized CSA UL listed
