Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor And Motor Starter Auxiliary
Description
9999SX15

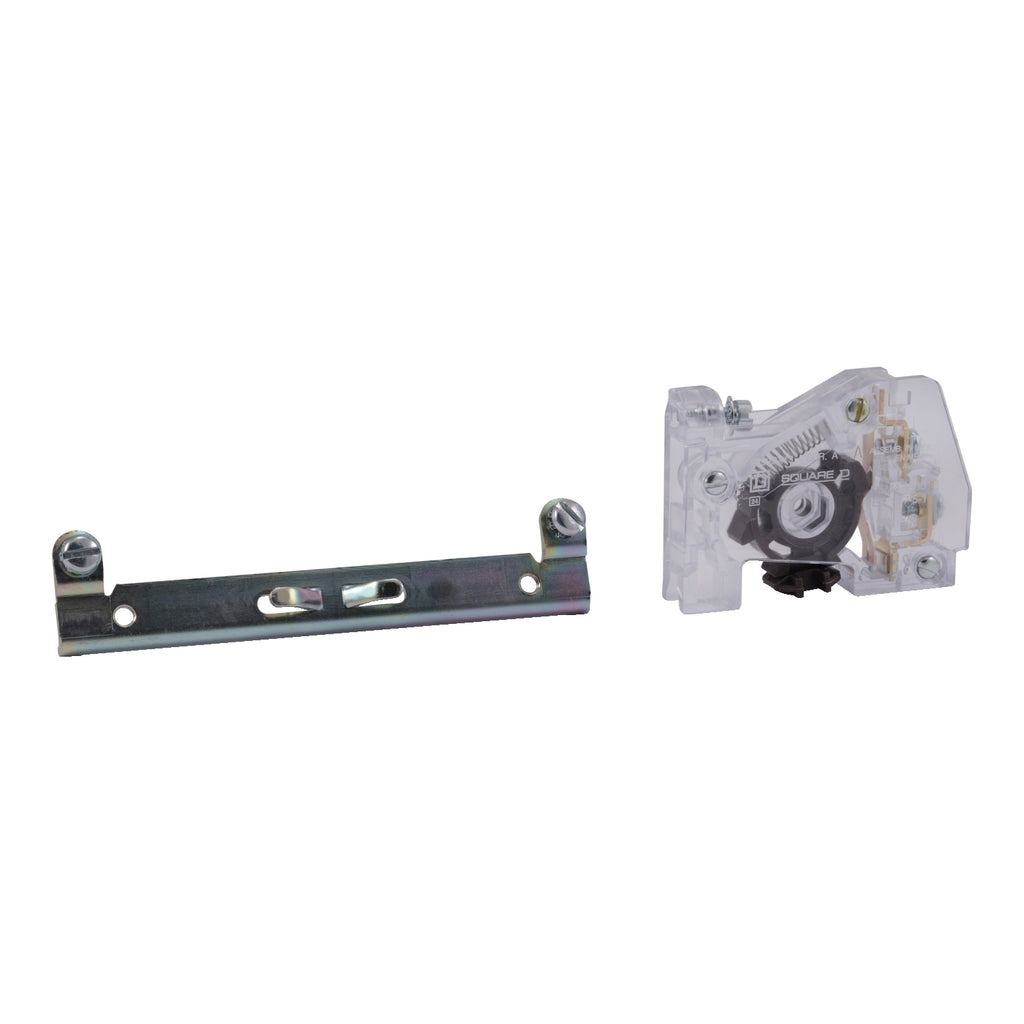

9999SX15 is a Square D Type S auxiliary contact module designed for use with NEMA motor starters and contactors in Class 8502, 8702, 8536, and 8736 series equipment. This auxiliary contact provides isolated, non-convertible external contacts for expanded control circuit functionality in motor control applications. The module features a robust design with replaceable parts for easy servicing and is suitable for NEMA sizes 00 through 7. Key Specifications
- Part Number: 9999SX15
- Manufacturer: Square D
- Contact Configuration: 1 NO + 1 NC (isolated)
- Voltage Rating: 600 VAC, 50/60 Hz
- Control Circuit Current: 6 A at 120 VAC inductive (UL 508)
- Control Circuit Current: 3 A at 240 VAC inductive (UL 508)
- Contact Type: External non-convertible
- Compatible NEMA Sizes: 00 to 7
- Compatible Contactor Series: Class 8502, 8702, 8536, 8736
Specifications
- Part Number: 9999SX15
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor And Motor Starter Auxiliary
- Coil Voltage Maximum : 600V
- Coil Voltage Minimum : 600V
Product Data
- UPC : 785901721215
- Weight : 0.25
- Certification : CSA UL recognized UL listed
