9998SO31 - Square D NEMA Type S Melting Alloy Overload Relay Jumper Strap for Motor Control

9998SO31

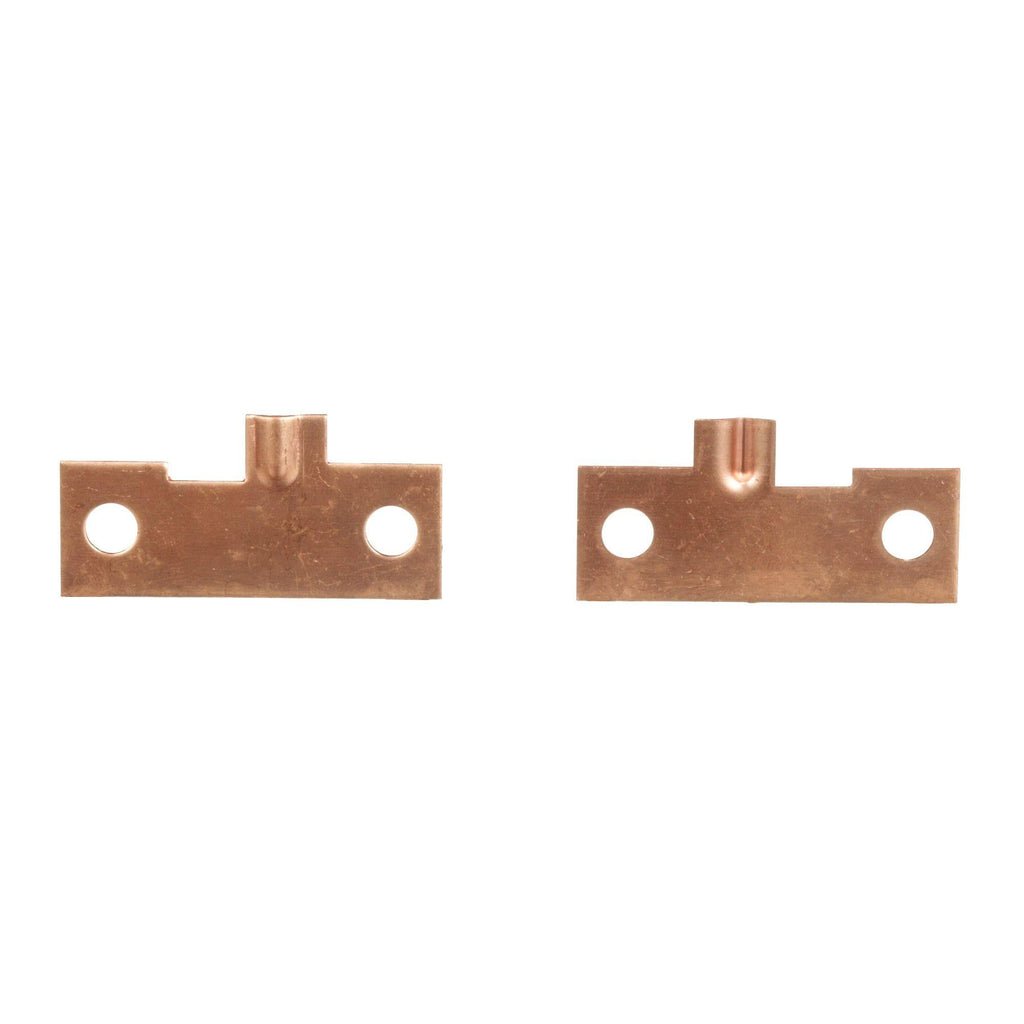

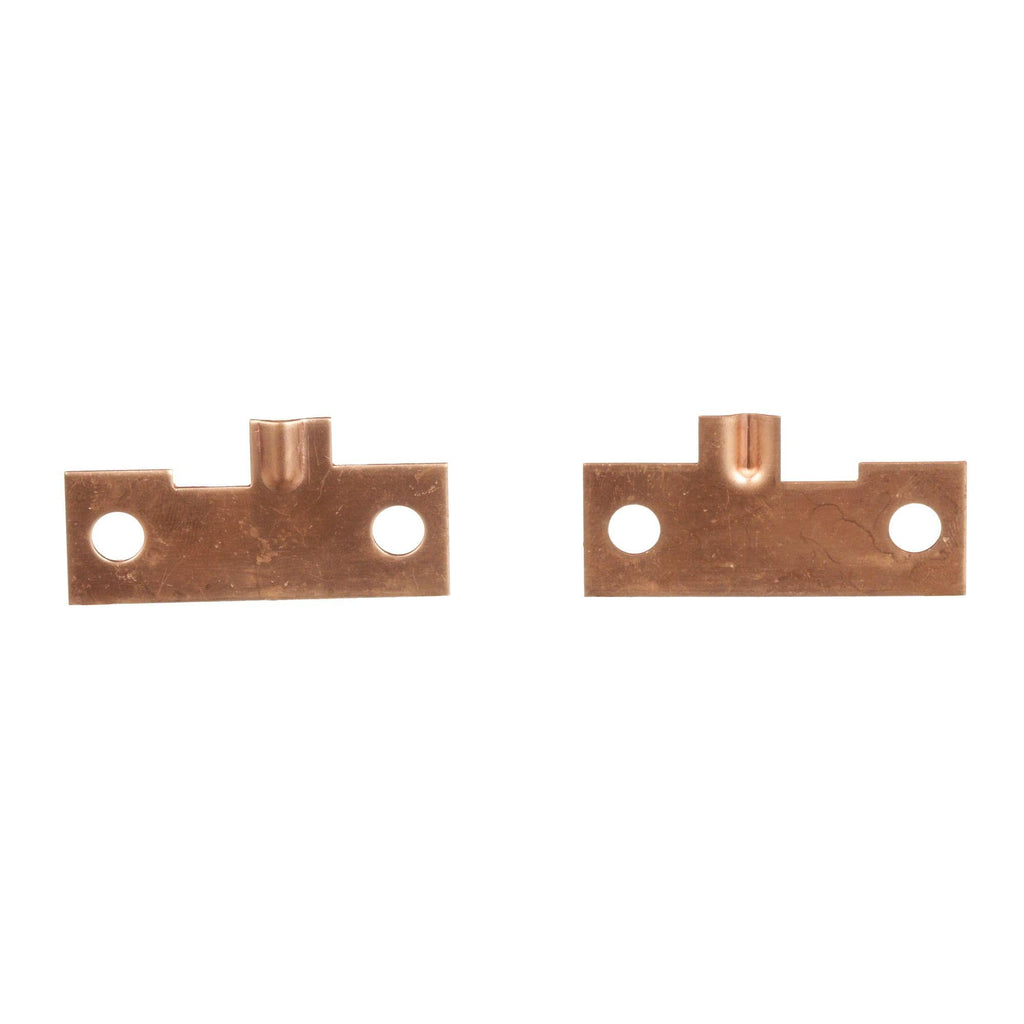

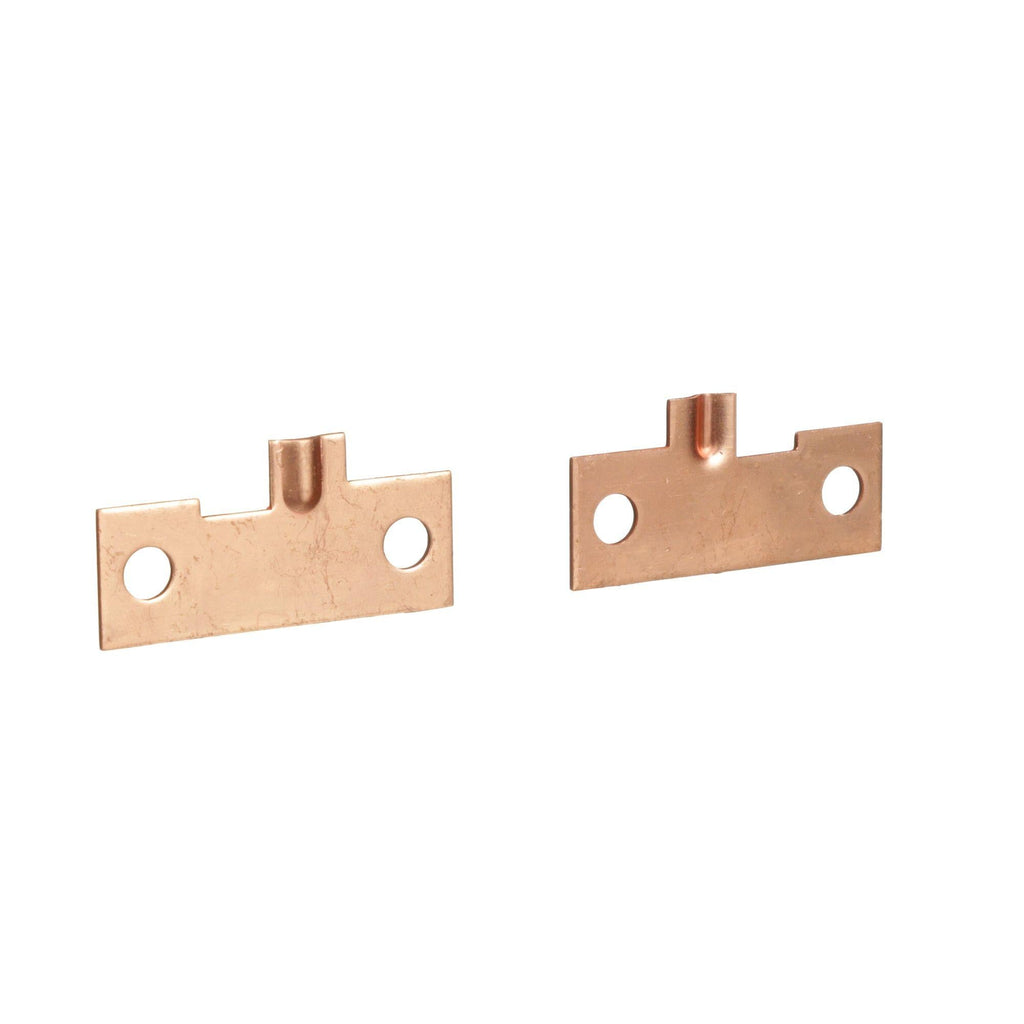

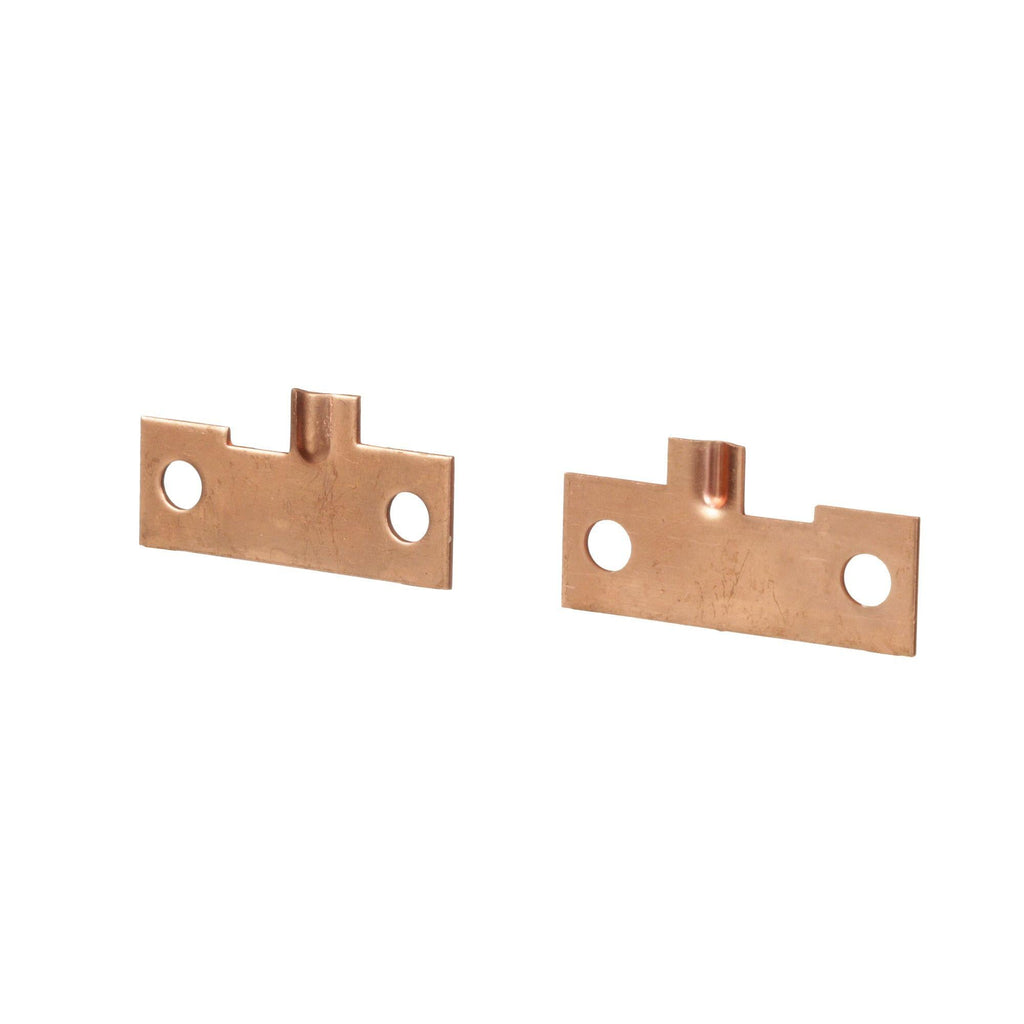

9998SO31 is a NEMA Type S melting alloy overload relay jumper strap designed for motor control applications by Square D.This jumper strap is used with three-phase starters to enable control of single-phase motors, providing reliable thermal protection. It comes standard installed on non-reversing, reversing, combination, and multispeed starters. The 9998SO31 features simple installation and field-interchangeable thermal units for easy replacement in motor installations. It supports a starter coil voltage of 600 VAC and dimensions of approximately 0.92" width, 1.87" height, and 0.12" length.

Key Specifications
• Manufacturer: Square D (Schneider Electric)
• Type: NEMA Motor Starter Type S Melting Alloy Overload Relay Jumper Strap
• Starter Coil Voltage: 600 VAC
• Dimensions: 0.92" W x 1.87" H x 0.12" L
• Application: Used with three-phase starters for single-phase motor control
• Installation: Standard on non-reversing, reversing, combination, and multispeed starters
• Thermal Protection: Melting alloy overload relay jumper strap
• Field Interchangeable Thermal Units for replacement
• Certifications: NEMA compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9998SO31
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Section : Misc. Kit
• Family : Class 9998
• Type : 9998
• Coil Voltage Maximum : 600 VAC

Product Data

• UPC : 785901862611
• GTIN : 00785901862611
• Country of Origin : Mexico
• Dimensions : 1.9 in (47.6 mm) x 0.9 in (23.4 mm) x 0.1 in (3 mm) (Height x Width x Depth)
• Weight : 0.07
• Certification : RoHS
