Product Info
- Manufacturer:Square D
- Sub-Category:Magnetic Coil
Description
9998SAC-23

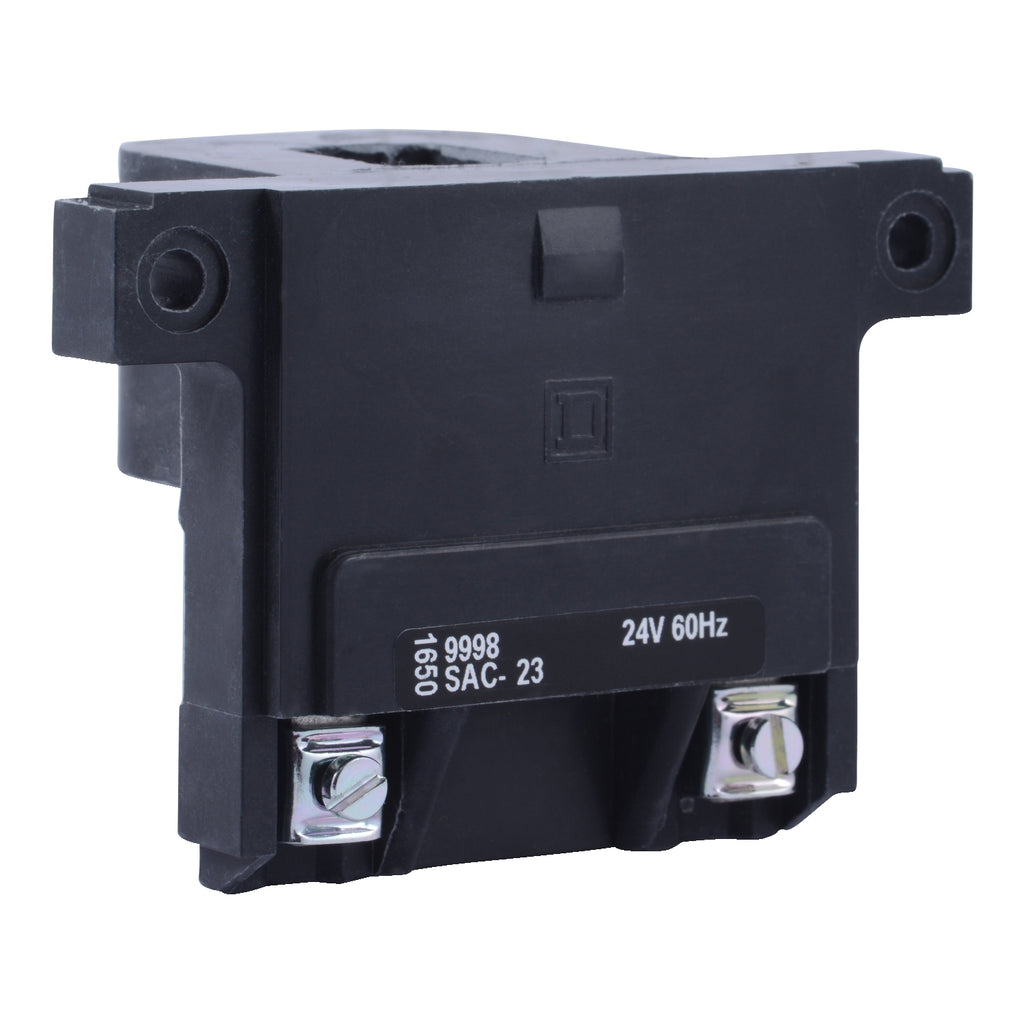

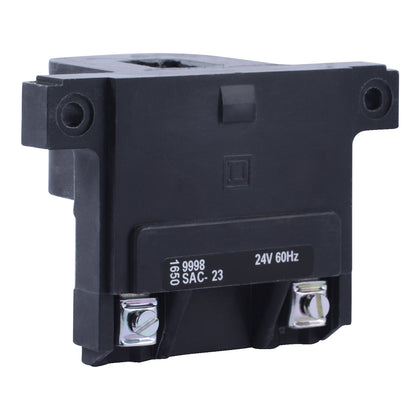

9998SAC-23 is a NEMA contactor and motor starter replacement coil manufactured by Square D for use with Type S magnetic contactors and starters. This AC coil is designed for direct mounting on NEMA Size 00 frames and is compatible with multiple contactor and starter classes including the 8502SA, 8536, 8538, 8539, 8606, 8630, 8640, 8647, 8650, 8651, 8702, 8736, 8739, 8810, 8811, and 8812 series. The coil features all-pole configuration with the SAC-23 suffix designator, making it a versatile replacement component for motor control applications.
- Voltage Rating: 24 VAC at 60 Hz
- Coil Type: AC Magnetic
- NEMA Frame Size: 00
- Poles: All Poles
- Mounting: Direct Mount
- Series: Type S (Series B)
- Inrush Power: Approximately 165 VA
- Application: Magnetic Contactor and Starter Replacement
Specifications
- Part Number: 9998SAC-23
- Manufacturer : Square D
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Magnetic Coil
- Family : Class 9998
- Type : SAC
- Voltage : 24
Product Data
- Weight : 5
