2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactors
Description
9998LH55

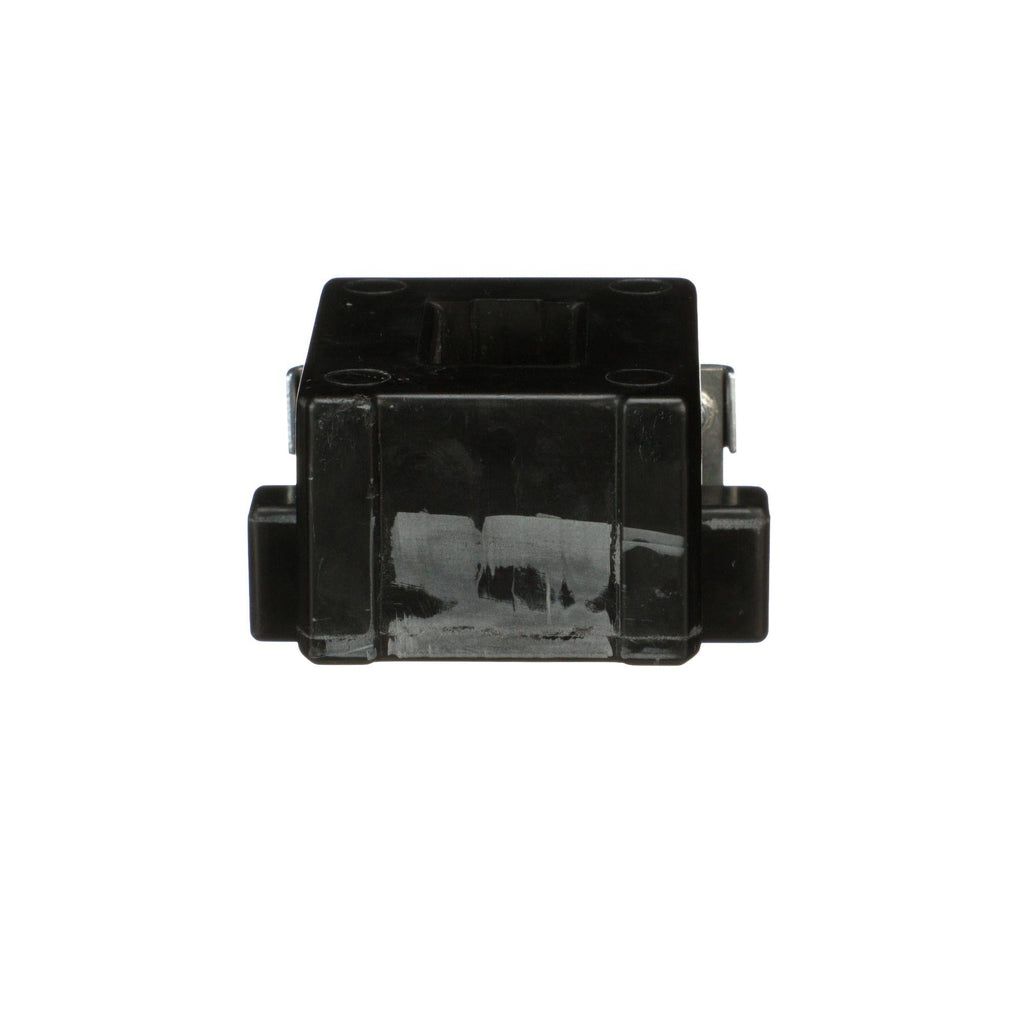

9998LH55 is a Square D AC coil designed for motor control contactors with a voltage rating of 277 VAC at 60 Hz.9998LH55 coil is compatible with Square D contactors and starters, featuring direct mounting and screw clamp terminal connections. It has an inrush power of 180 VA and an average sealed consumption of 35 VA, suitable for sizes 6 to 12 poles.
- Key Specifications
- Voltage: 277 VAC at 60 Hz
- Power Consumption: 35 VA average sealed, 180 VA inrush
- Mounting Type: Direct mounting
- Terminal Connection: Screw clamp
- Compatible with Square D contactors/starters
- Size Range: 6 to 12 poles
- Frequency: 60 Hz
- Manufacturer: Square D
Specifications
- Part Number: 9998LH55
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactors
- Section : Contactors
- Voltage : 277
- Frequency : 60 Hz
Product Data
- UPC : 785901081180
- GTIN : 00785901081180
- Country of Origin : Mexico
- Dimensions : 2.4 in (60.5 mm) x 2.1 in (53.6 mm) x 1.5 in (37.1 mm) (Height x Width x Depth)
- Weight : 0.35
