Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
9570D02G05

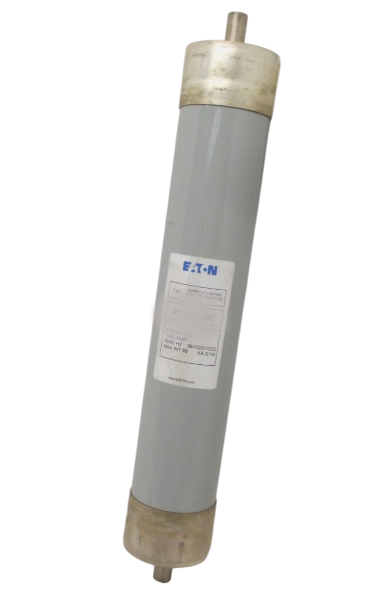

9570D02G05 is an Eaton Bussmann Series 15CXN current limiting fuse rated for 85 amps and 15.5 kV applications. It is designed for high voltage circuit protection in power distribution systems.9570D02G05 features a current limiting design that helps protect equipment by interrupting fault currents quickly and safely. This fuse is part of Eaton's Bussmann series, known for reliable medium voltage fuse performance with a maximum interrupting rating of 50 kA symmetrical. It is suitable for use in switchgear, transformers, and feeder circuits requiring 15.5 kV rated fuses.
- Manufacturer: Eaton
- Series: Bussmann 15CXN
- Amperage: 85 A
- Voltage Rating: 15.5 kV
- Fuse Type: Current Limiting
- Interrupting Rating: 50 kA symmetrical
- Application: Medium Voltage Power Distribution
- Mounting: Compatible with Eaton fuse holders and clips
- Standards: UL Listed (Guide JEEG, File E240398)
Specifications
- Part Number: 9570D02G05
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage
- Family : CX
- Type : CXN
- Voltage : 15500
- Amperage : 85
- AIC rating : [email protected]
- Diameter : 4
- Class Rating : C
- Barrels : 1
Product Data
- Weight : 3
