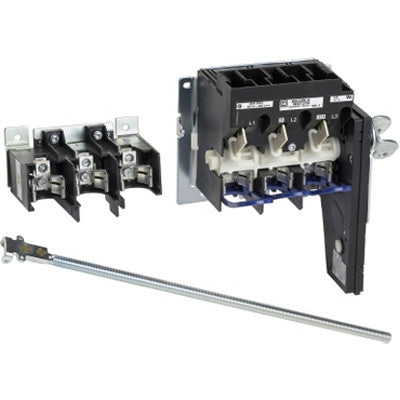

9422TDF63 - Schneider Electric 60A 600VAC 3-Pole Fusible Disconnect Switch Variable Depth

9422TDF63

9422TDF63 is a fusible disconnect switch designed for reliable circuit isolation in industrial and commercial applications. This switch features a variable depth flange rod mounting for flexible installation and supports a 60A current rating at 600VAC. The 9422TDF63 is part of the Square D Type T series and is suitable for use with J, H, K, and R type fuses. It is rated for up to 15 hp at 200V AC, 15 hp at 230V AC, 30 hp at 460V AC, and 50 hp at 575V AC, making it ideal for a variety of motor control and power distribution needs.

• Part Number: 9422TDF63
• Manufacturer: Schneider Electric
• Series: Square D Type T
• Current Rating: 60A
• Voltage Rating: 600VAC
• Poles: 3
• Mounting Type: Flange rod variable depth
• Fuse Type: J, H, K, R
• Horsepower Rating: 15 hp @ 200V AC, 15 hp @ 230V AC, 30 hp @ 460V AC, 50 hp @ 575V AC
• Application: Fusible disconnect switch

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9422TDF63
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Class 9422
• Type : 9422
• Voltage : 600 AC/ DC
• Amperage : 60
• Phase : 3
• Poles : 3
• Fuse Class : H,J,K,R
• Configuration : Single
• Switch Style : Fusible
• Compatible Frames : NSE

Product Data

• UPC : 78590187987
• GTIN : 00785901879879
• Country of Origin : Mexico
• Dimensions : 2 1/4 in x 3 1/4 in
• Weight : 6.21
• Certification : CSA Certified, UL 98 Listed
