920310030 ASCO 920 Series Lighting Contactor, 3-Pole, 100A, 120V Coil, Sub-Panel Mount

9200301003000

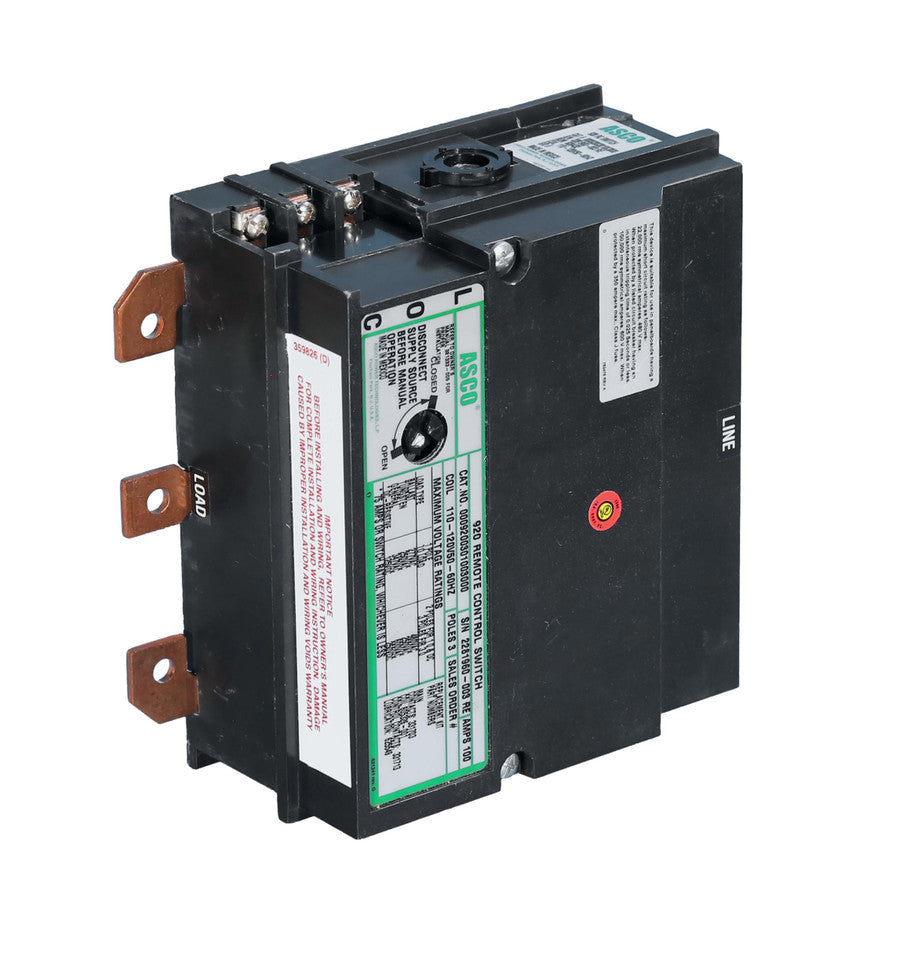

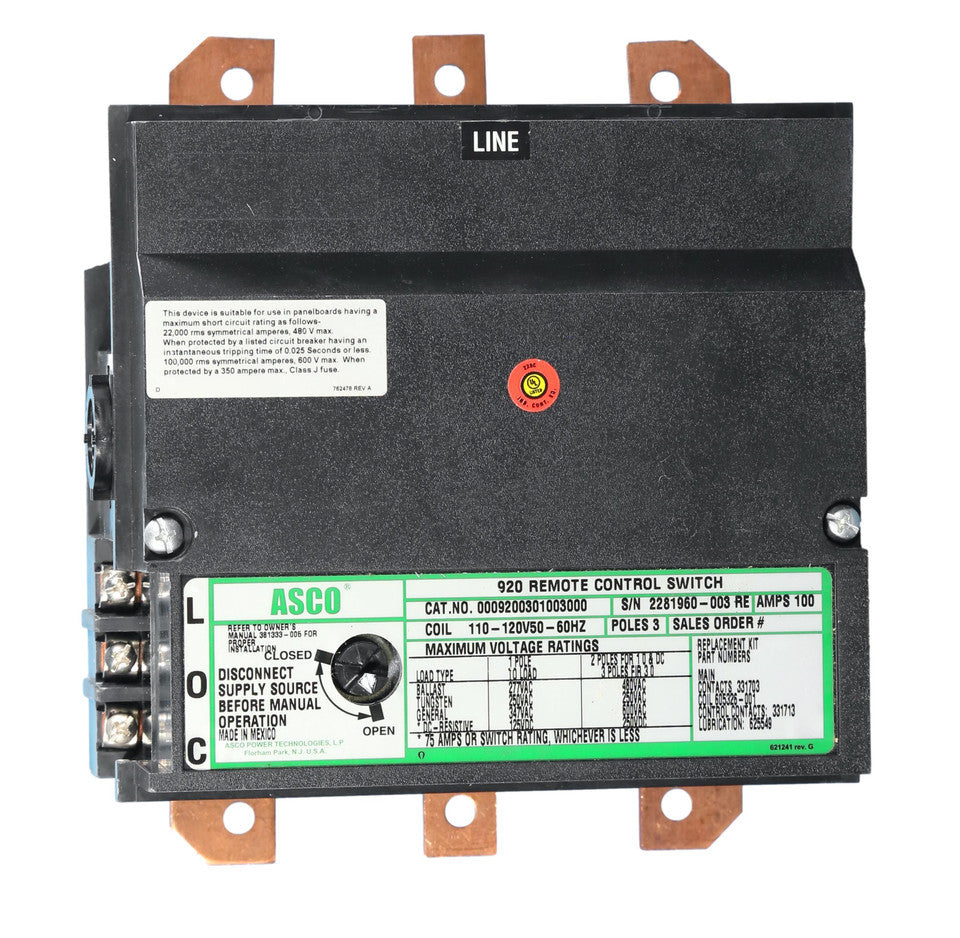

920310030 ASCO 920 Series Lighting Contactor, 3-Pole, 100A, 120V Coil, Sub-Panel Mount

The ASCO 920310030 is a 3-pole, mechanically held lighting contactor rated 100A per pole with a 120V control coil, listed under UL 508 for ballast lighting, tungsten, general use, and resistive loads. It also meets the withstand current rating requirements of UL 67 for panelboard applications, qualifying it for total or split-bus feeder lighting control in a submittal package. At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

This unit ships in the open sub-panel configuration: the switch is mounted on a backer plate suitable for installation within a NEMA enclosure or directly inside a lighting panelboard. It uses a patented single-solenoid, bi-directional operating mechanism with contacts power-driven to open and closed positions, and requires no derating on high-inrush loads.

Common Applications

• Feeder-circuit lighting control beyond the capacity of the ASCO 918
• Total-bus or split-bus lighting panelboard switching
• Energy management systems via photocells, timers, and occupancy sensors
• Metal halide, mercury vapor, quartz halogen, tungsten, and fluorescent loads
• Commercial, institutional, and industrial facility lighting

Key Features

• Mechanically held operation: Contacts power-driven to open and closed; holds position without continuous coil power.
• Single-solenoid mechanism: Patented bi-directional operator for reliable switching.
• No inrush derating: Fully rated for high-inrush lighting loads at nameplate amperage.
• Visual position indicators: Show open/closed state of each main contact.
• Manual operation provision: Allows manual actuation during inspection.
• Sub-panel mount: Open backer-plate build for NEMA enclosure or panelboard installation.

Specifications

• Manufacturer: ASCO
• Catalog Number: 920310030
• Series: 920
• Poles: 3
• Current Rating: 100A per pole
• Coil Voltage: 120V AC
• Service Voltage: Through 600V AC
• Mounting: Sub-panel / open backer plate
• Listings: UL 508 listed; meets UL 67 withstand; CSA approved

Product Identification

• Dimensions: 7.94 in W x 11.5 in H x 3.88 in D
• Approx. Shipping Weight: 8 lbs

FAQ

What is the ASCO 920310030? It is a 920 Series 3-pole lighting contactor rated 100A with a 120V coil, supplied in open sub-panel (backer-plate) configuration.

Is this contactor enclosed? No. It is the open sub-panel build, intended for mounting inside a NEMA enclosure or lighting panelboard.

What standards does it meet? UL 508 listed for ballast, tungsten, general-use, and resistive loads; meets UL 67 withsta

Specifications

• Part Number: 9200301003000

Product Data

• Dimensions : 7-15/16 in W x 11-1/2 in H x 3-7/8 in D
• Weight : 8 lb
