Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Terminal Blocks
Description
9080LBA3652021

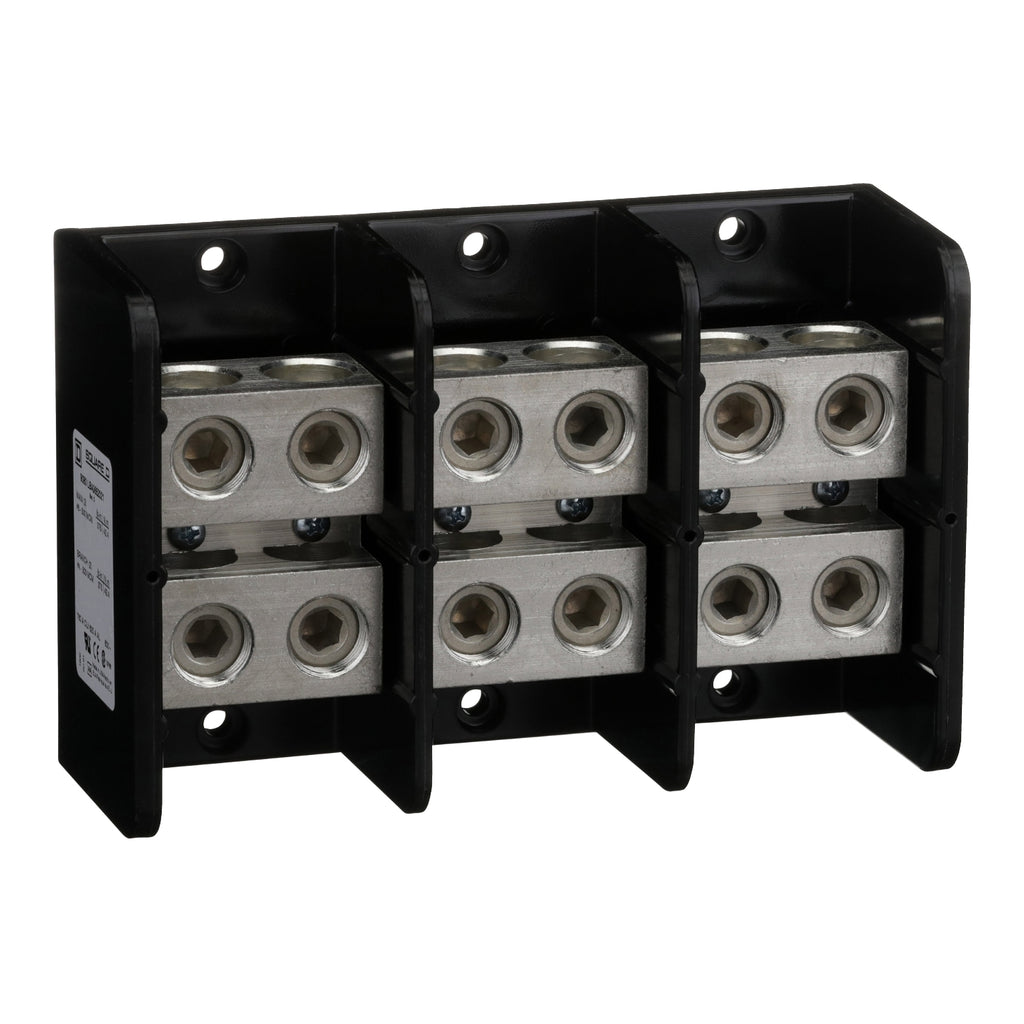

9080LBA3652021 is a three-pole power distribution block designed for industrial power distribution applications. This Linergy series block from Square D by Schneider Electric features dual line and dual load lugs for flexible circuit configuration and is constructed with phenolic housing for general-purpose use.Key Specifications
- Current Rating: 760 A copper, 620 A aluminium
- Voltage: 600 V AC/DC
- Number of Poles: 3
- Primary Connections: 2 line lugs
- Secondary Connections: 2 load lugs
- Wire Size: 4 AWG to 500 kcmil copper or aluminium
- Interrupt Rating: 65 kA
- Housing Material: Phenolic
- Mounting Type: Surface mount
- Operating Temperature: -40 to 302 degrees F
- Certifications: UL component recognized, CSA certified, CE, RoHS compliant
- Dimensions: 5.5 in H x 8.54 in W x 3.12 in D
Specifications
- Part Number: 9080LBA3652021
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Terminal Blocks
- Section : Terminal Blocks
- Family : 9080LB
- Voltage : 600 600 /DC
Product Data
- UPC : 785901097556
- GTIN : 00785901097556
- Country of Origin : United States
- Dimensions : 5.5 in (139.7 mm) x 8.54 in (216.92 mm) x 3.13 in (79.50 mm) (Height x Width x Depth)
- Weight : 3.64 lb
- Certification : CE Marked, CSA File 70361 Class 6228-1, UL File E60616 Guide XCFR2
