9080LBA362106 - Schneider Electric 3 Pole Power Distribution Block 175A 600V Surface Mount

9080LBA362106

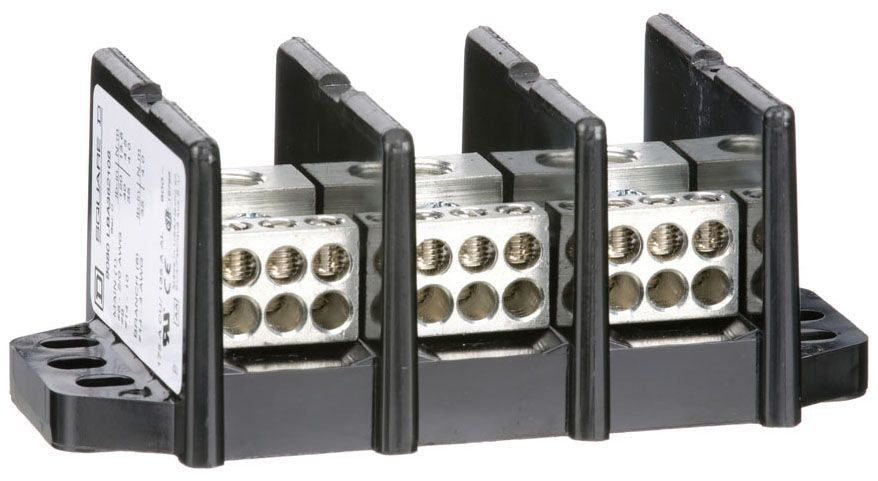

9080LBA362106 is a Schneider Electric 3 pole power distribution block designed for reliable power distribution in industrial applications.This power distribution block features a 175A rating for copper conductors and 135A for aluminum, with a voltage rating of 600 VAC/VDC. It supports one primary line connection and six secondary load connections, accommodating wire sizes from 14 to 2/0 AWG for the line and 14 to 4 AWG for the loads. The block is constructed with a durable phenolic housing and is UL component recognized and CSA certified. It is surface mountable and designed to NEMA standards, with a short circuit current rating of 65 kA.

Key Specifications
• Manufacturer: Schneider Electric
• Part Number: 9080LBA362106
• Poles: 3
• Amperage: 175A (Copper), 135A (Aluminum)
• Voltage Rating: 600 VAC/VDC
• Mounting Type: Surface Mount
• Wire Size: Line (14 to 2/0 AWG), Load (14 to 4 AWG)
• Short Circuit Current Rating: 65 kA
• Housing Material: Phenolic
• Certifications: UL Component Recognized, CSA Certified
• Series: 9080LB
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: 9080LBA362106
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Fuse
• Item Subcategory : Fuse Block



Product Data

• UPC : 785901132615
• GTIN : 785901132615
• Country of Origin : United States
• Dimensions : 2.9 in (73.7 mm) x 5.38 in (136.65 mm) x 2.06 in (52.32 mm) (Height x Width x Depth)
• Weight : 0.76 lb
• Certification : CE Marked, CSA File 70361 Class 6228-1, UL File E60616 Guide XCFR2
