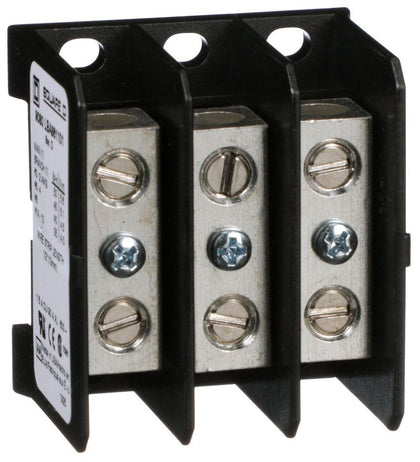

9080LBA361101 - Square D 115A 600V 3-Pole Miniature Power Distribution Block Thermoplastic

9080LBA361101

This power distribution block features aluminum lugs rated for 115 amps with copper wire and 90 amps with aluminum wire, supporting conductor sizes from 14 to 2 AWG. It has a high-impact thermoplastic housing and is surface mountable. The block is UL component recognized and CSA certified, ideal for distributing power to multiple loads in compact motor control setups.

Key Specifications
• Amperage: 115A (copper), 90A (aluminum)
• Voltage: 600 VAC
• Poles: 3
• Mounting Type: Surface mount
• Conductor Size: AWG 14 to 2 (Cu/Al)
• Housing Material: High impact thermoplastic
• Certifications: UL recognized, CSA certified
• Line/Load Configuration: 1 line, 1 load
• Manufacturer: Square D
• Category: Motor Control Power Distribution Block

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Specifications

• Part Number: 9080LBA361101
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Voltage : 690
• Amperage : 2500
• Phase : 3
• Poles : 3
• AIC rating : 80kA@415V
• Connection : Bolt-On
• Functions : NA - No Overcurrent Protection
• Protection : Non-Automatic



Product Data

• UPC : 785901097426
• GTIN : 785901097426
• Country of Origin : United States
• Dimensions : 2.29 in (58.17 mm) x 2.12 in (53.85 mm) x 1.62 in (41.15 mm) (Height x Width x Depth)
• Weight : 0.22 lb
• Certification : CE Marked, CSA File 70361 Class 6228-1, UL File E60616 Guide XCFR2
