Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Control Part And Accessory
Description
9080LBA163101

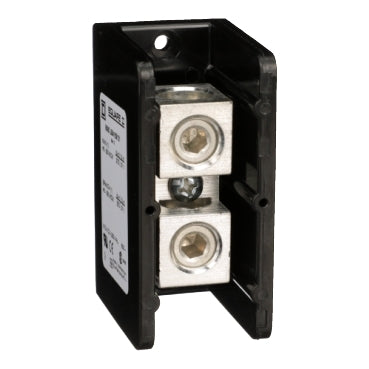

9080LBA163101 is a Linergy power distribution block designed for reliable wire termination and power distribution in industrial and commercial applications. This block features one pole with one line and one load terminal, supporting copper and aluminum conductors for versatile installation options. The 9080LBA163101 is built to NEMA standards and is suitable for surface mounting. It is rated for 310 amperes with copper wire and 250 amperes with aluminum wire, with a maximum voltage rating of 600 volts AC/DC. The block is UL component recognized and CSA certified, ensuring compliance with major safety standards.
- Manufacturer: Schneider Electric
- Series: Linergy
- Part Number: 9080LBA163101
- Number of Poles: 1
- Terminals per Pole: 1 Line, 1 Load
- Current Rating: 310A Cu, 250A Al
- Voltage Rating: 600V AC/DC
- Mounting Type: Surface mount
- Short Circuit Current Rating: 65 kA
- Material: General purpose phenolic housing
- Certifications: UL component recognized, CSA certified
Specifications
- Part Number: 9080LBA163101
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Control Part And Accessory
Product Data
- UPC : 785901097310
- GTIN : 00785901097310
- Country of Origin : United States
- Dimensions : 3.38 in (85.85 mm) x 1.94 in (49.28 mm) x 2.61 in (66.29 mm) (Height x Width x Depth)
- Weight : 0.61
- Certification : CE; UL Recognized E60616 CCN XCFR2; CSA File 70361 Class 6228 01
