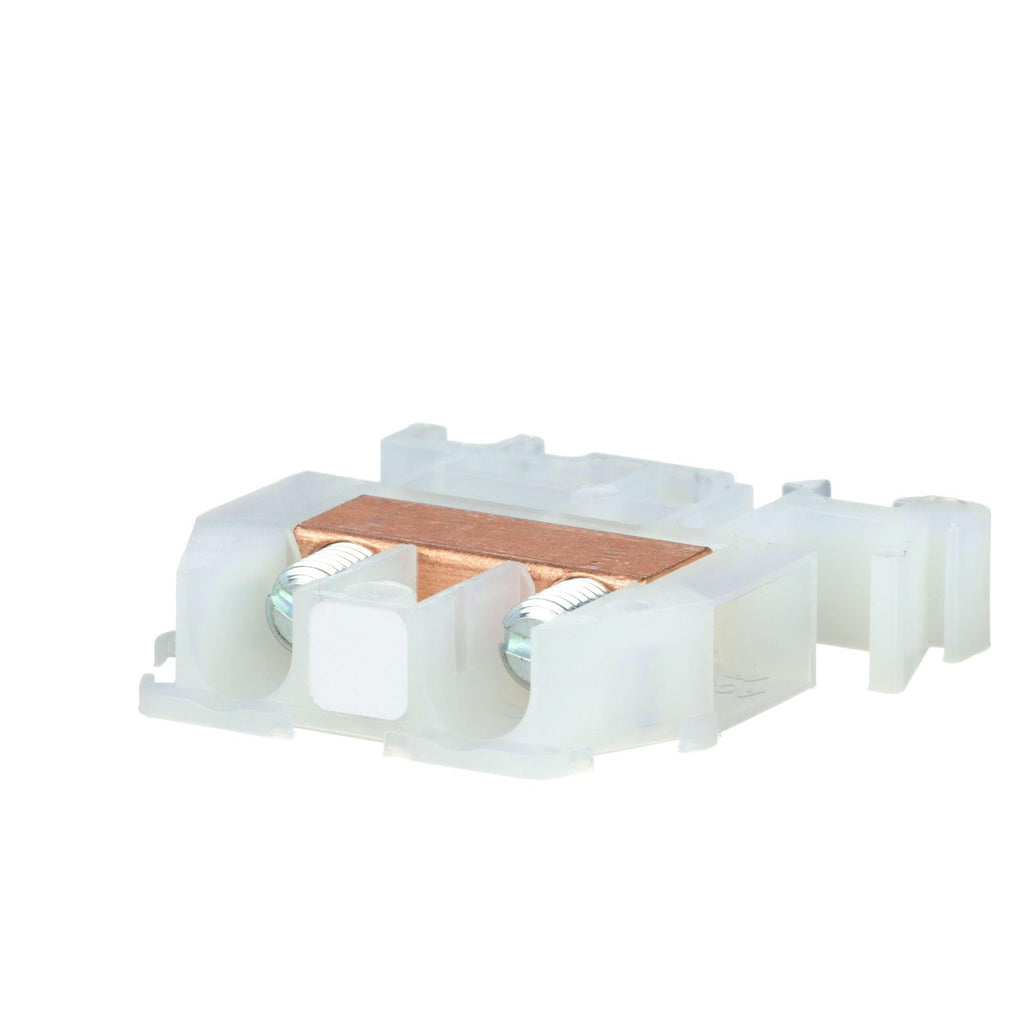

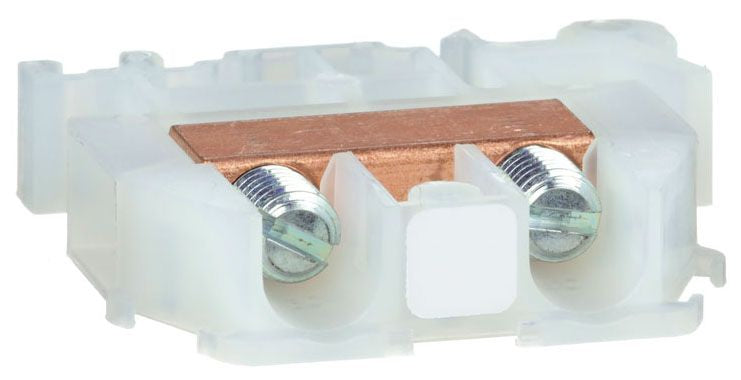

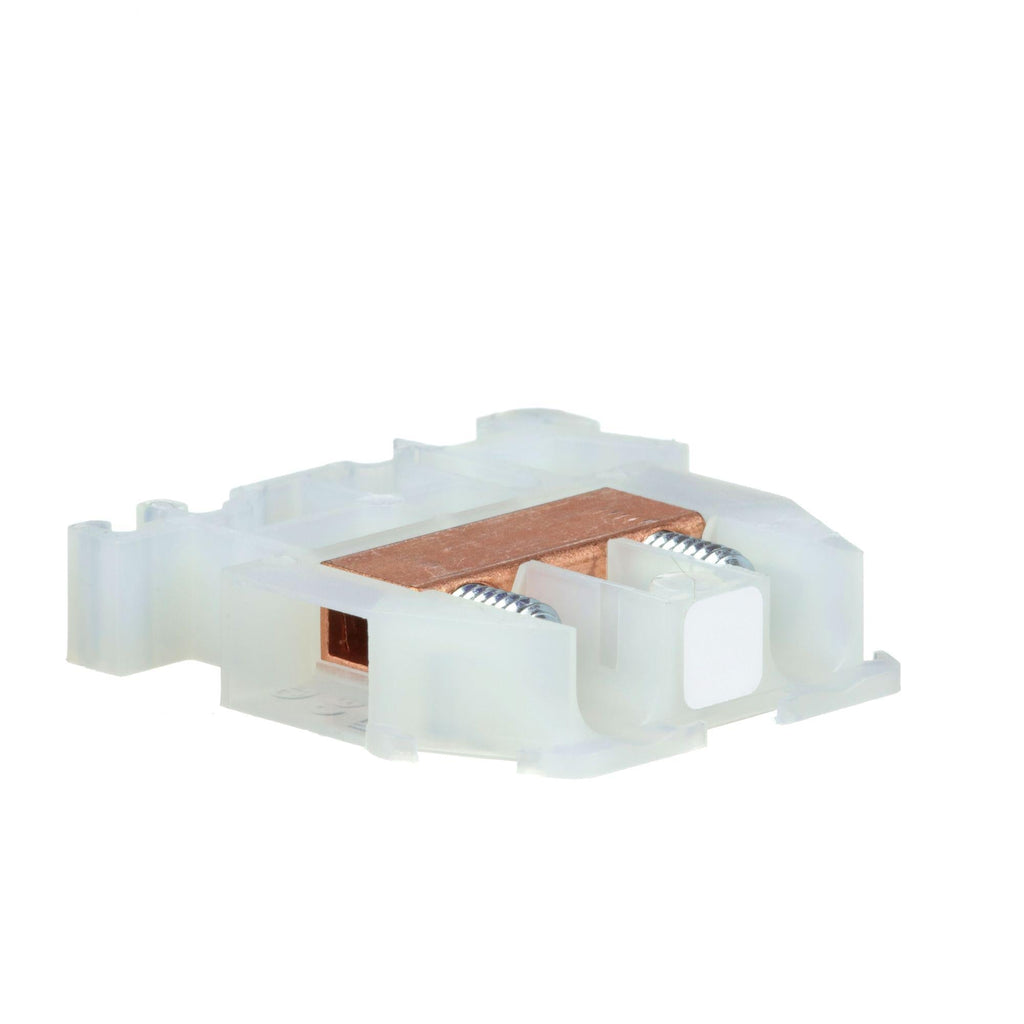

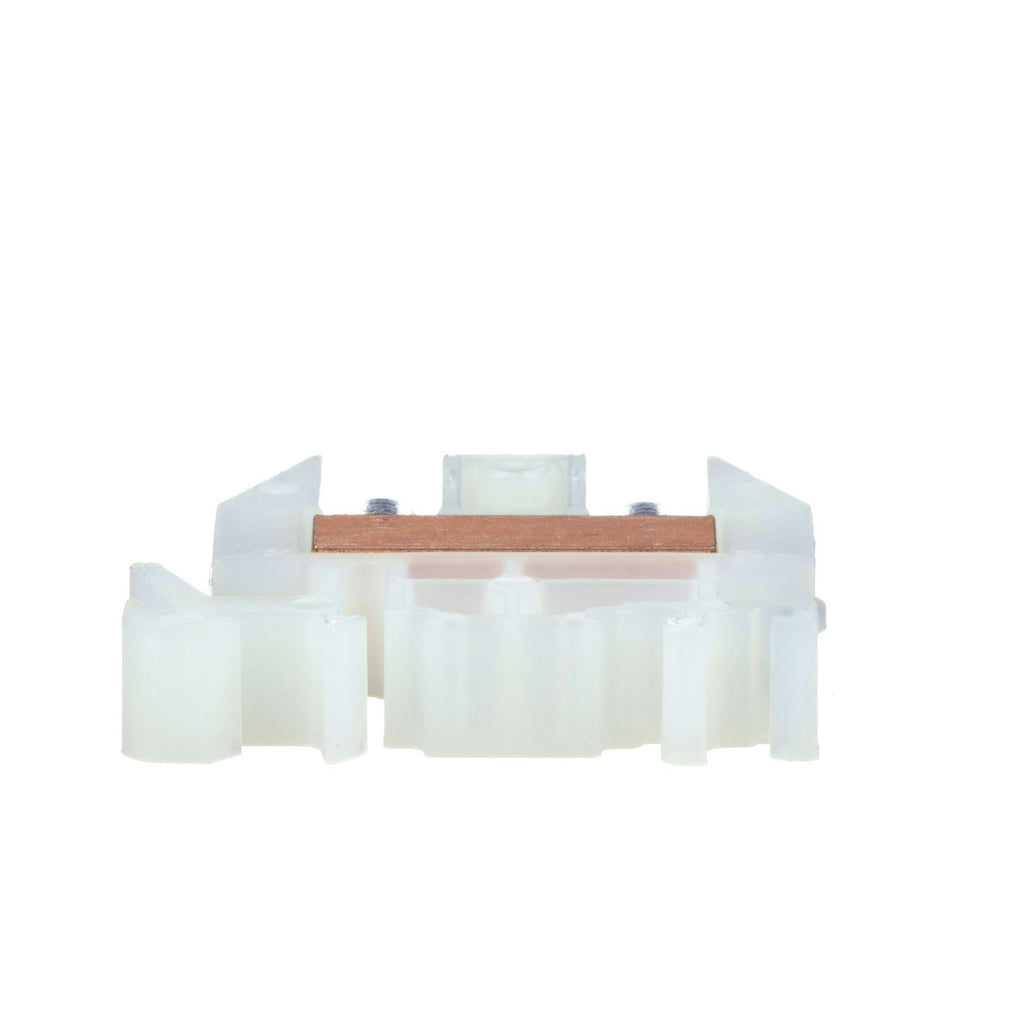

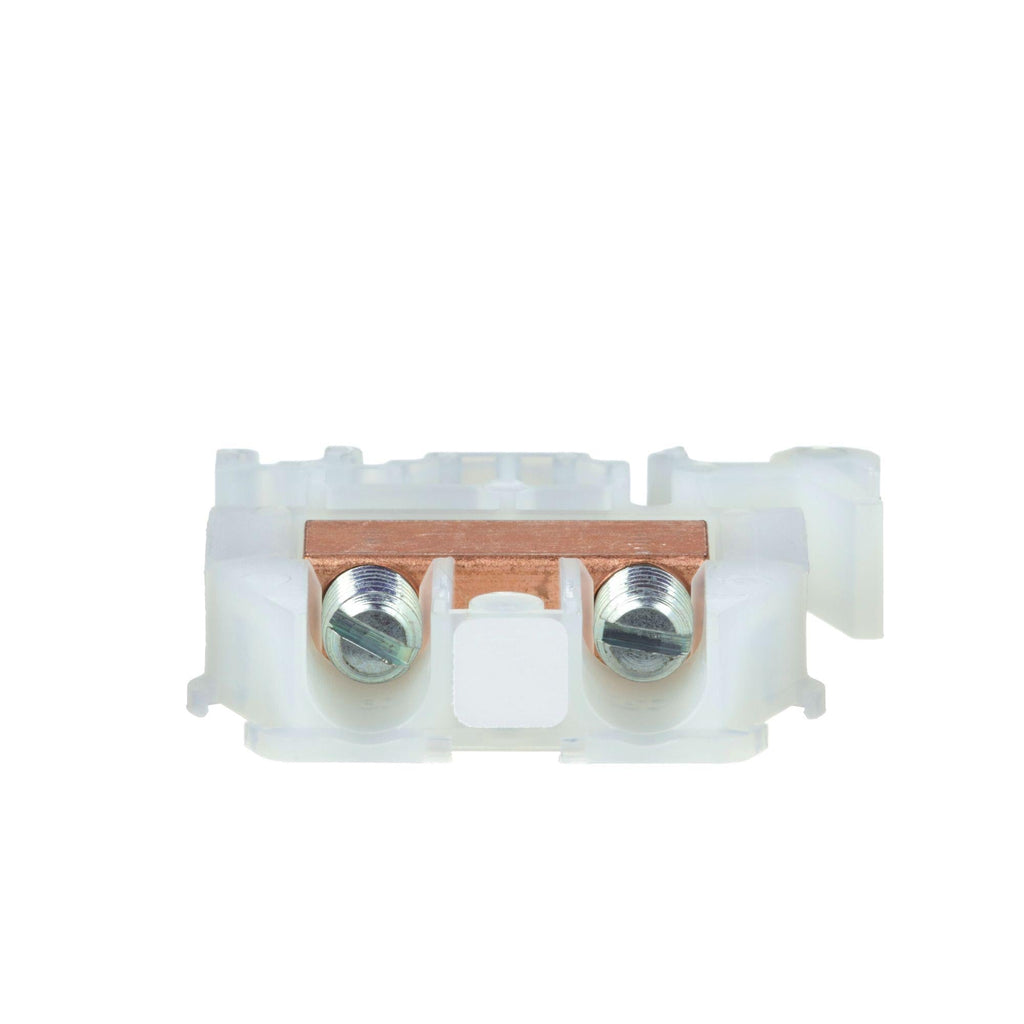

9080GR6 - Square D 60 Amp 600 Volt Motor Control Terminal Block DIN Rail Mount

9080GR6

9080GR6 is a Square D motor control terminal block rated for 60 Amps and 600 Volts with DIN rail mounting.9080GR6 features a nylon construction designed for use with solid or stranded copper wires from 22 to 8 AWG. It supports a single circuit and is suitable for motor control applications requiring reliable terminal connections. The terminal block mounts on a 35 mm DIN rail and is built to NEMA construction standards.

Key Specifications
• Manufacturer: Square D
• Part Number: 9080GR6
• Current Rating: 60 Amps
• Voltage Rating: 600 Volts AC/DC
• Mounting Type: 35 mm DIN Rail
• Material: Nylon
• Wire Size Range: 22 to 8 AWG solid/stranded copper
• Number of Circuits: Single
• Construction Standard: NEMA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9080GR6
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Section : Terminal Block
• Voltage : 600 AC
• Temp Rating : -13–158 °F (-25–70 °C)

Product Data

• UPC : 785901000716
• GTIN : 00785901000716
• Country of Origin : Mexico
• Dimensions : 1.82 in (46.23 mm) x 1.72 in (43.69 mm) x 0.35 in (8.89 mm) (Height x Width x Depth)
• Weight : 0.031
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CE, CSA Approved, RoHS Compliant, UL Component Recognized
