Product Info
- Manufacturer:Schneider Electric
Description
9080GKE6

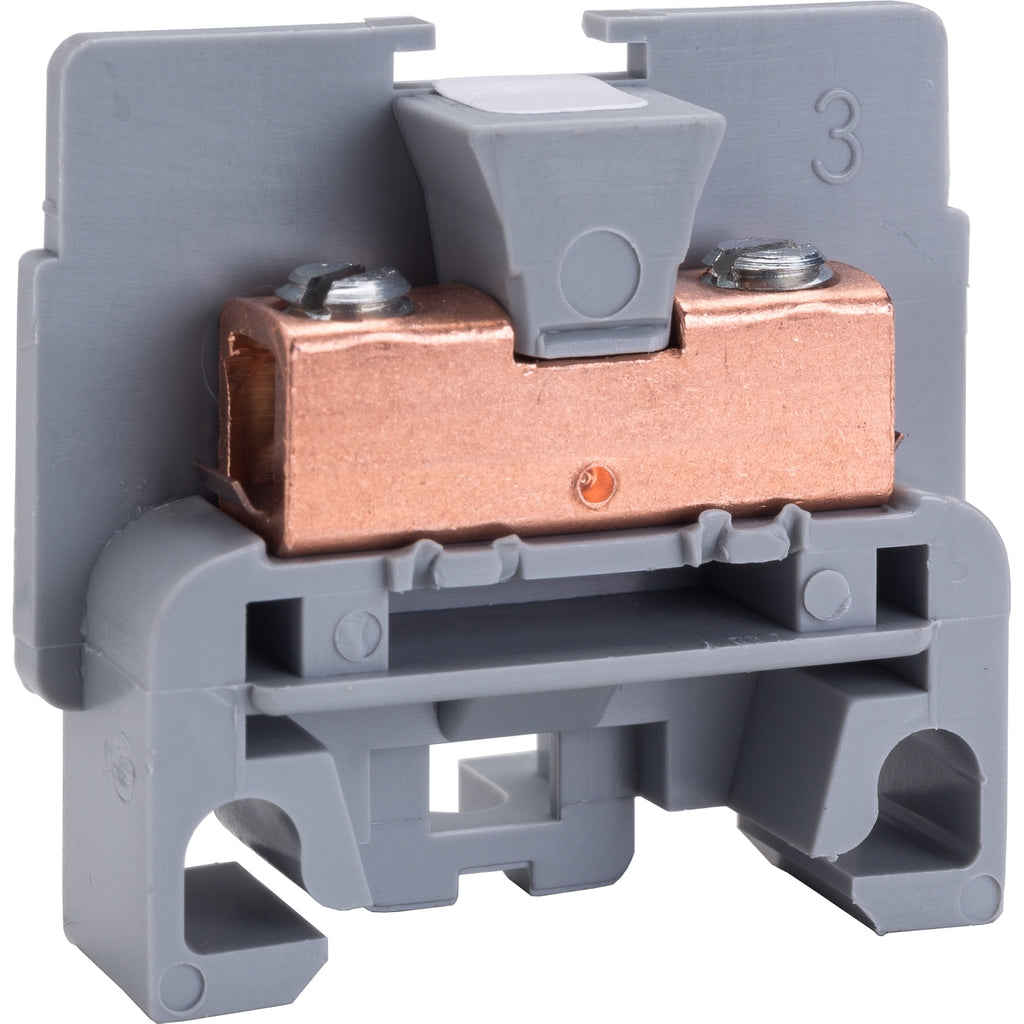

9080GKE6 is a Square D Linergy terminal block designed for reliable wire termination in control panels.This terminal block features a grey nylon body, is rated for 40 amps and 600 volts, and supports 1 pole connections. It is UL component recognized for up to 70 amperes and CSA certified for up to 40 amperes, ensuring compliance with industry safety standards. The block is suitable for use with wire sizes from 22 to 10 AWG and can be mounted on a 35 mm DIN rail or directly to panels, providing flexible installation options.
- Key Specifications
- Manufacturer: Square D
- Part Number: 9080GKE6
- Amperage: 40 Amps
- Voltage Rating: 600 Volts
- Poles: 1 Pole
- Mounting Type: 35 mm DIN Rail or Panel Mount
- Material: Grey Nylon
- UL Component Recognized: Up to 70 Amps
- CSA Certified: Up to 40 Amps
- Wire Size Range: 22 to 10 AWG
- Part Number: 9080GKE6
- Manufacturer : Schneider Electric
- Brand : Square D
- UPC : 78590115520
- GTIN : 785901000822
- Country of Origin : Mexico
- Dimensions : 1.39 in (35.31 mm) x 1.4 in (35.6 mm) x 0.35 in (8.89 mm) (Height x Width x Depth)
- Weight : 1.2 lb
