Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Fuse Part And Accessory
Description
9080FB3611R

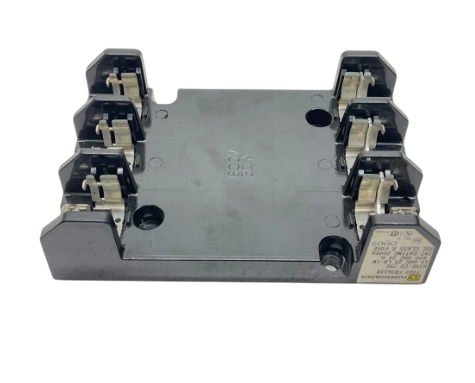

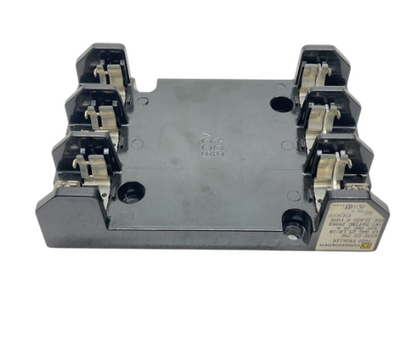

9080FB3611R is a Schneider Electric Class R fuse holder designed for 30 ampere, 600 volt applications with 3 poles and surface mounting.This fuse holder accepts R-type fuses sized 0.8125 x 5 inches and supports pressure wire clamp connections for AWG 14 to AWG 10 copper conductors. It is constructed with phenolic material and rated for a maximum operational voltage of 600 V AC/DC. The device is suitable for use in panel accessory applications requiring reliable fuse protection.
- Manufacturer: Schneider Electric
- Part Number: 9080FB3611R
- Fuse Type: R
- Fuse Size: 0.8125 x 5 in (13/16 x 5 in)
- Current Rating: 30 Amps
- Voltage Rating: 600 Volts AC/DC
- Number of Poles: 3
- Mounting Type: Surface mount
- Connection Type: Pressure wire clamp
- Wire Gauge: AWG 14 to AWG 10 copper
- Material: Phenolic
- Interrupt Rating: Class R
Specifications
- Part Number: 9080FB3611R
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Fuse
- Item Subcategory : Fuse Part And Accessory
Product Data
- Dimensions : 6.25 in (158.75 mm) x 4.25 in (107.95 mm) x 1.69 in (42.93 mm) (Height x Width x Depth)
