Product Info
- Manufacturer:Schneider Electric
Description
9080FB1231R

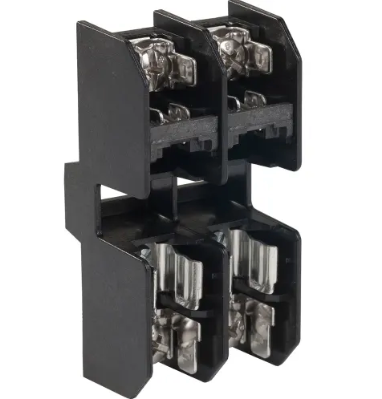

9080FB1231R is a Square D Linergy fuse holder terminal block designed for reliable power distribution and protection in industrial and commercial applications.
This Class R fuse holder terminal block features a 100A current rating, 250V operational voltage, and a single pole configuration. It is engineered for box lug mounting and accepts Class R fuses up to 1 x 5.875 inches. The unit is certified for a 200,000A interrupt rating, ensuring robust protection against short circuits. It is part of the Square D 9080FB series and is RoHS compliant, meeting stringent safety and environmental standards.
Key Specifications
- Part Number: 9080FB1231R
- Manufacturer: Square D
- Amperage: 100A
- Voltage: 250V AC/DC
- Poles: 1
- Mounting Type: Box lug
- Interrupt Rating: 200,000A
- Series/Frame: 9080FB
- Fuse Type: Class R
- Fuse Size: 1 x 5.875 in
- Certifications: RoHS compliant
- Flammability Rating: UL94V-0
- Temperature Rating: -40 to 125°C
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 9080FB1231R
- Manufacturer : Schneider Electric
- Brand : Square D
Product Data
- Dimensions : 6.12 in (155.45 mm) x 1.93 in (49.02 mm) x 2.44 in (61.98 mm) (Height x Width x Depth)
- Weight : 5.19
