9070TF75D1 - Schneider Electric (Square D) Industrial Control Transformer 75 VA 240x480V to 120V

9070TF75D1

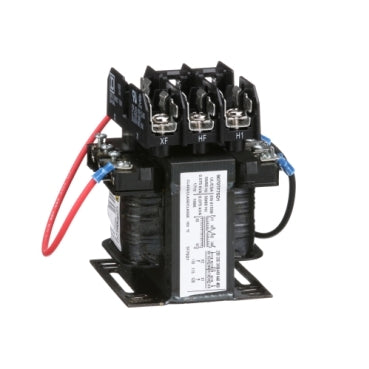

9070TF75D1 is an industrial control transformer manufactured by Schneider Electric (Square D brand). It is rated for 75 VA with a primary voltage of 240 x 480 V AC and a secondary voltage of 120 V AC. This transformer provides reliable voltage reduction for control circuits in motor starters, contactors, and automation equipment. The 9070TF75D1 features epoxy-encapsulated windings for superior protection against moisture, dust, and vibration. It includes 50/60 Hz operation, screw terminal connections, and a compact open-style design for easy panel mounting.

• Part Number: 9070TF75D1
• Manufacturer: Schneider Electric (Square D)
• Series / Family: 9070T Series – Industrial Control Transformers
• Power Rating: 75 VA
• Primary Voltage: 240 x 480 V AC
• Secondary Voltage: 120 V AC
• Frequency: 50/60 Hz
• Mounting Style: Panel-mount (open core and coil)
• Temperature Rise: 55 °C maximum
• Insulation Class: Class B (130 °C)
• Protection: Epoxy-encapsulated windings for environmental durability
• Certifications: UL 5085 Listed, CSA Certified, CE Marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9070TF75D1
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Transformer
• Item Subcategory : Industrial Control
• Family : Class 9070
• Type : T
• Phase : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Primary Voltage : 24/48

Product Data

• UPC : 78590190481
• GTIN : 00785901904816
• Country of Origin : Mexico
• Dimensions : 4.18 in (106.17 mm) x 3.38 in (85.85 mm) x 3.34 in (84.84 mm) (Height x Width x Depth)
• Weight : 4.48
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
