9070TF750D1 - Square D Industrial Control Transformer 750VA 240x480V Primary 120V Secondary

9070TF750D1

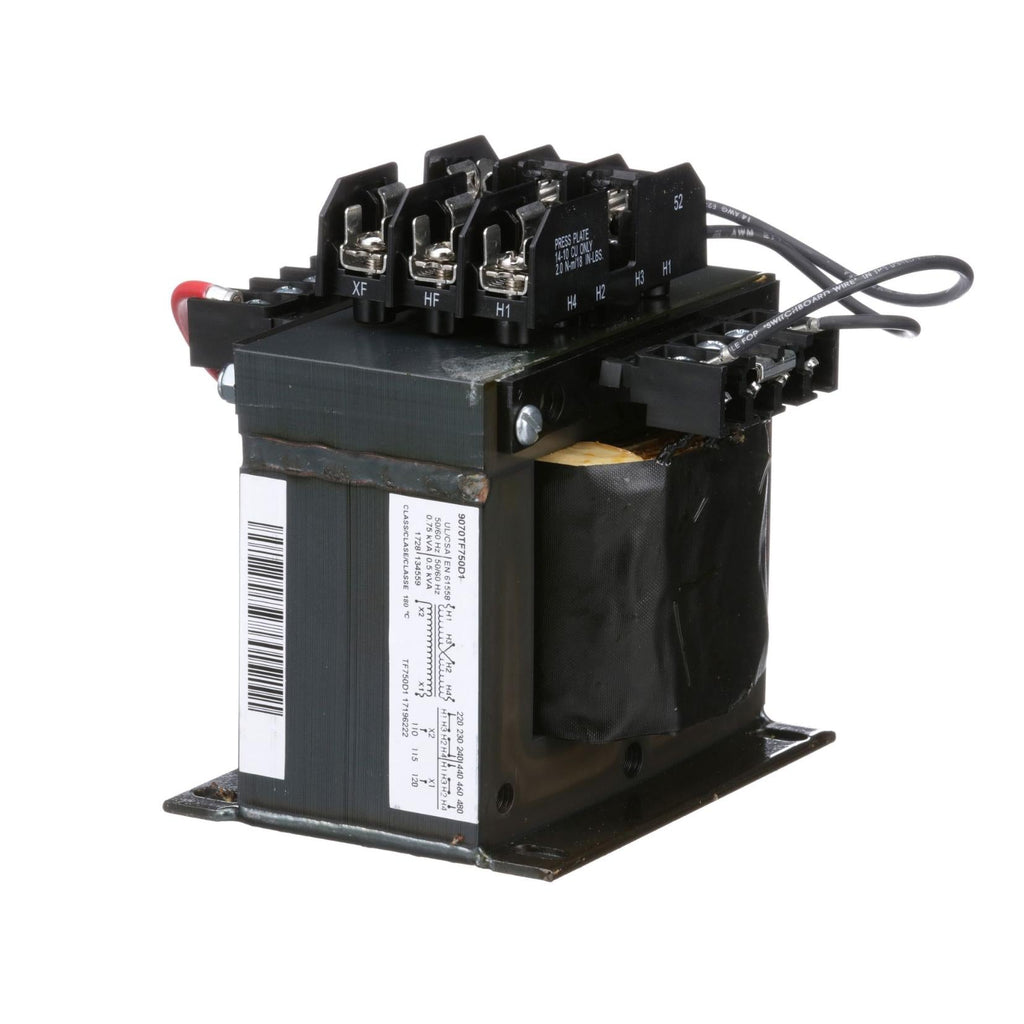

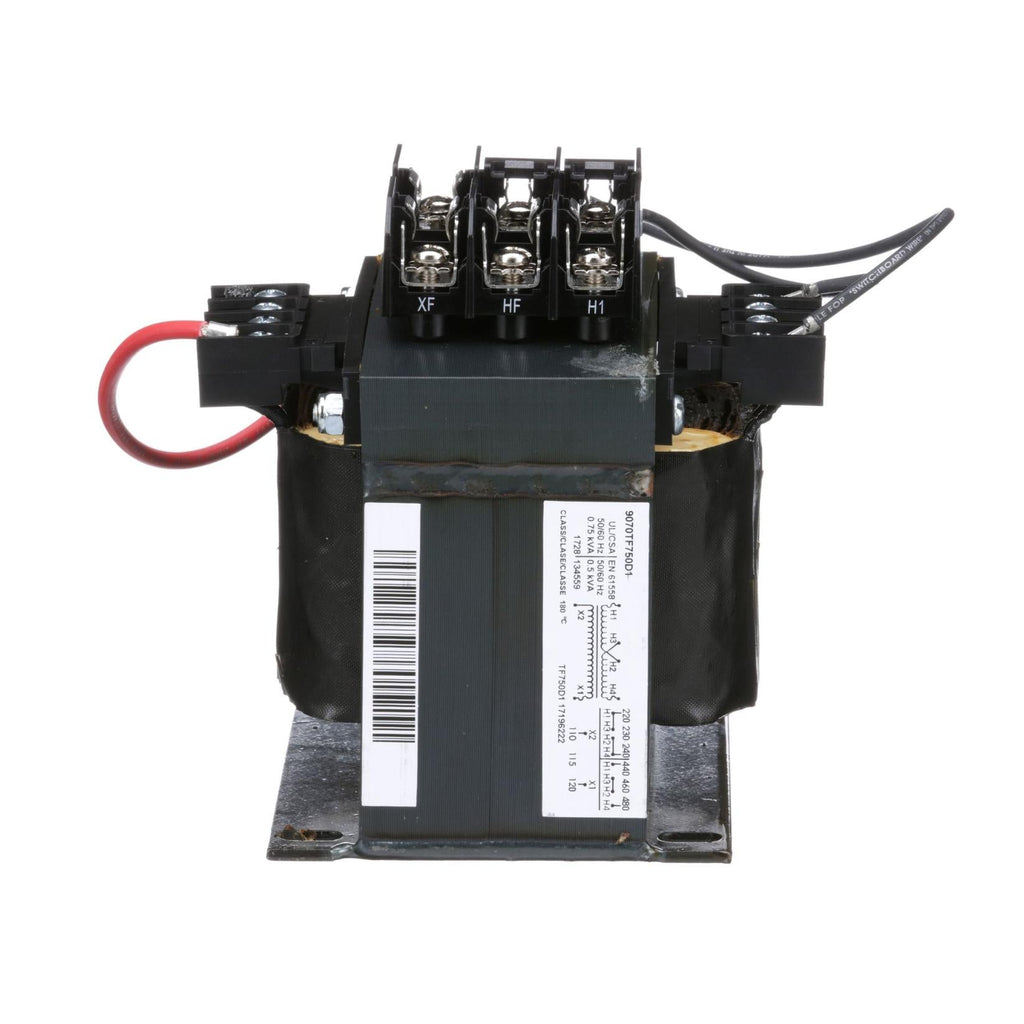

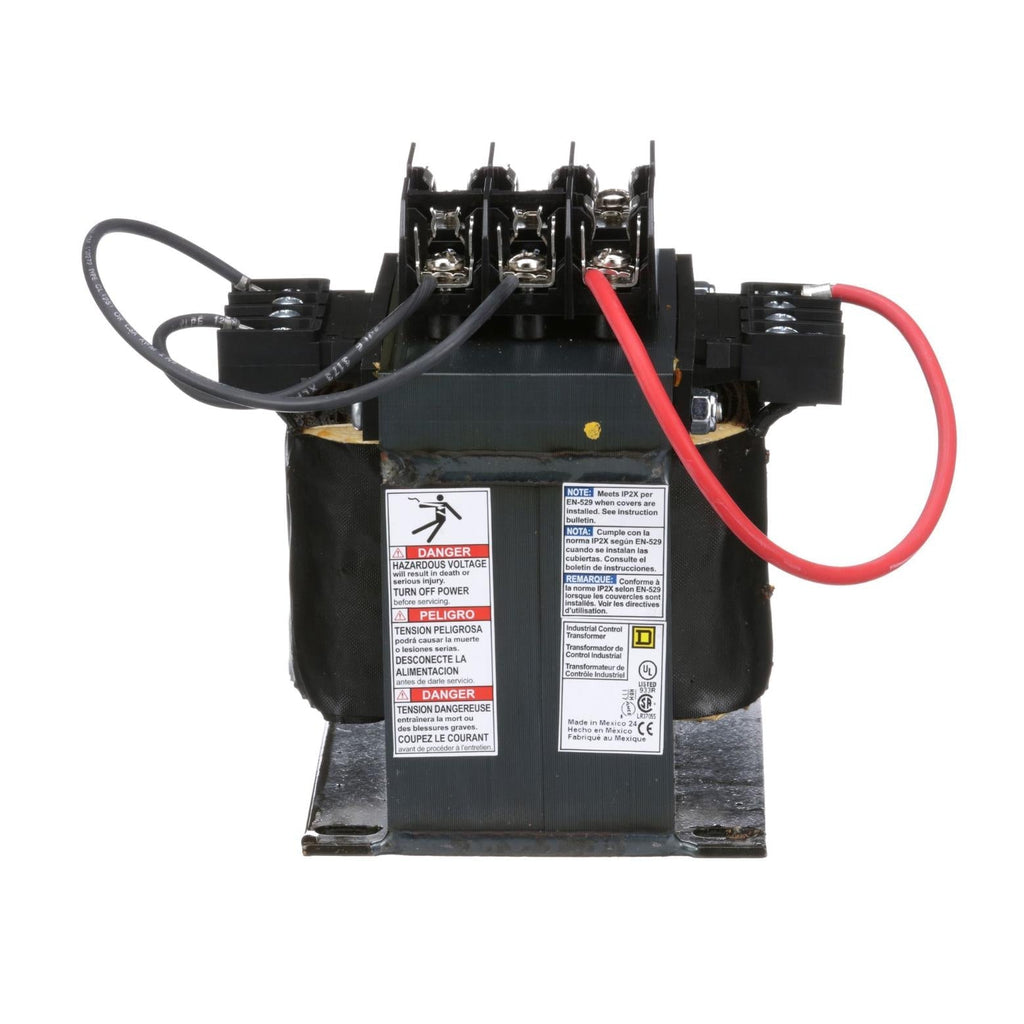

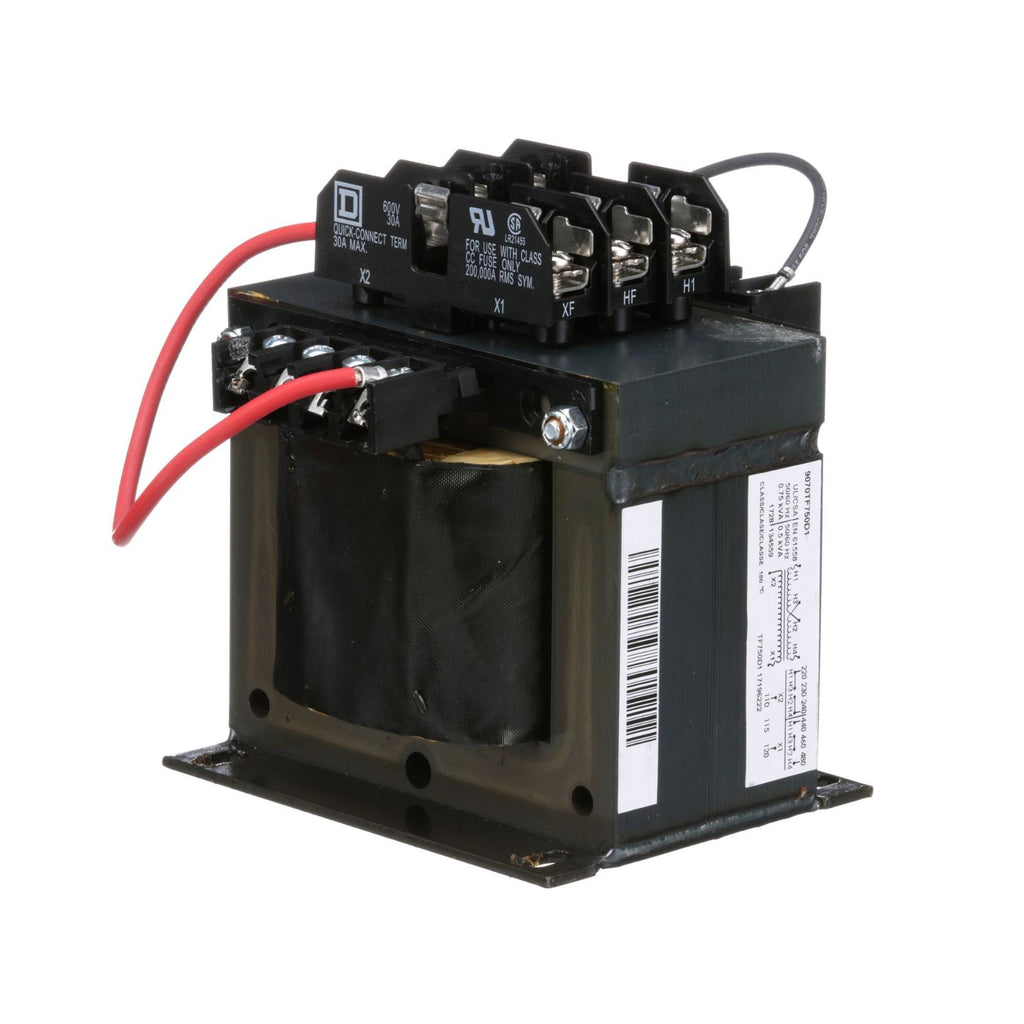

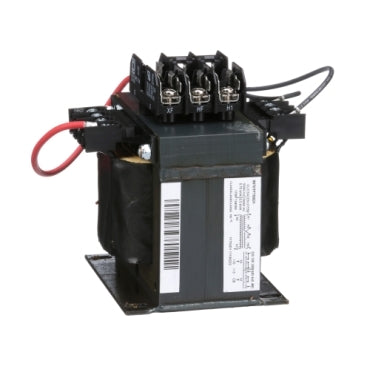

9070TF750D1 is a Square D Type TF industrial control transformer designed for reliable power distribution in control circuits.

This single-phase transformer features a 750 VA power rating with 240 x 480 V primary voltage and 120 V secondary voltage. The unit operates at 50/60 Hz frequency and includes factory-installed fuse blocks for convenient installation. Touch-safe terminals provide protection against accidental shocks, while voltage regulation ensures stable power delivery. The open enclosure design measures 5.25 inches wide by 5.66 inches deep by 5.73 inches high, making it suitable for space-constrained applications.

• Type: TF Industrial Control Transformer
• Power Rating: 750 VA
• Phase: Single Phase (1 Phase)
• Primary Voltage: 240 x 480 V
• Secondary Voltage: 120 V
• Frequency: 50/60 Hz
• Enclosure Type: Open

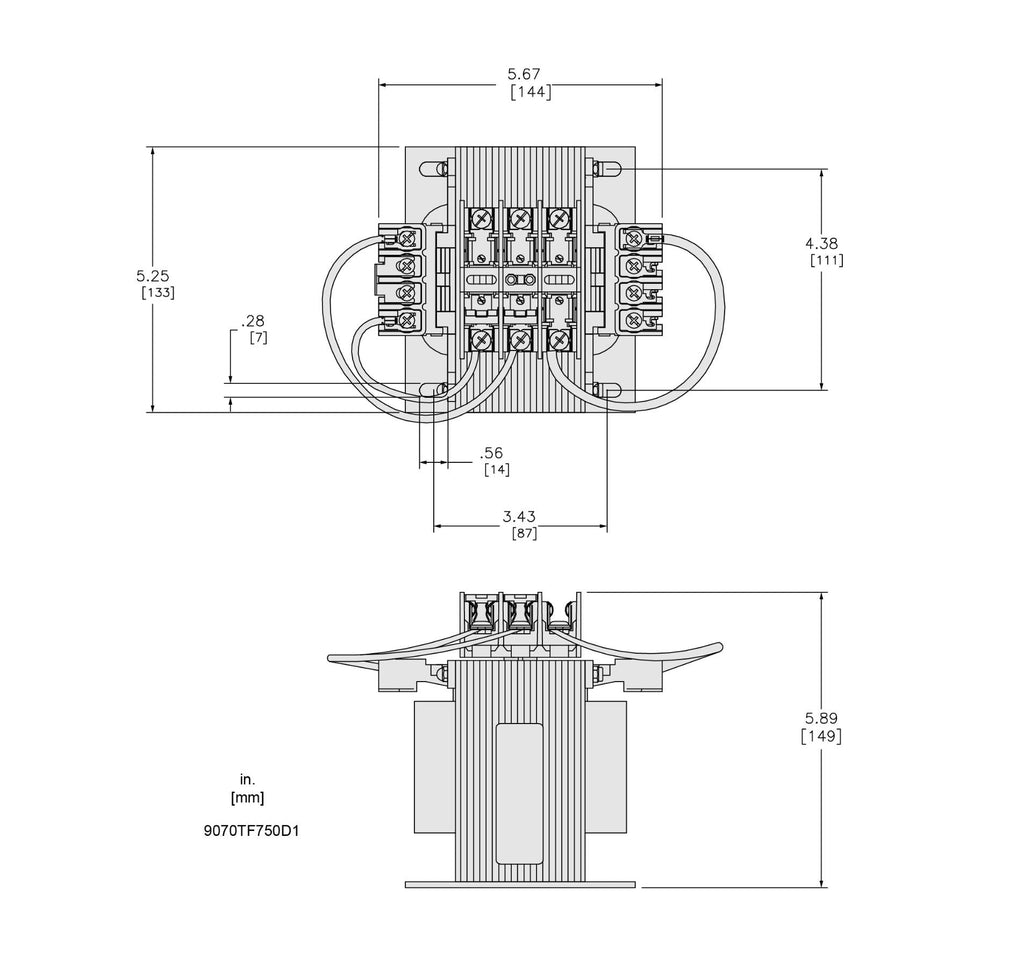

• Dimensions: 5.25 in W x 5.66 in D x 5.73 in H
• Certifications: UL, CSA, CUL, CE, NOM
• Features: Pre-wired fuse blocks, touch-safe terminals, voltage regulation

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9070TF750D1
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Transformer
• Item Subcategory : Industrial Control
• Family : Class 9070
• Type : T
• Phase : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• KVA Rating : 750
• Primary Voltage : 240/480
• Secondary Voltage : 120

Product Data

• UPC : 785901904908
• GTIN : 00785901904908
• Country of Origin : Mexico
• Dimensions : 5.8 in (147.3 mm) x 5.25 in (133.35 mm) x 5.61 in (142.49 mm) (Height x Width x Depth)
• Weight : 17.816
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
