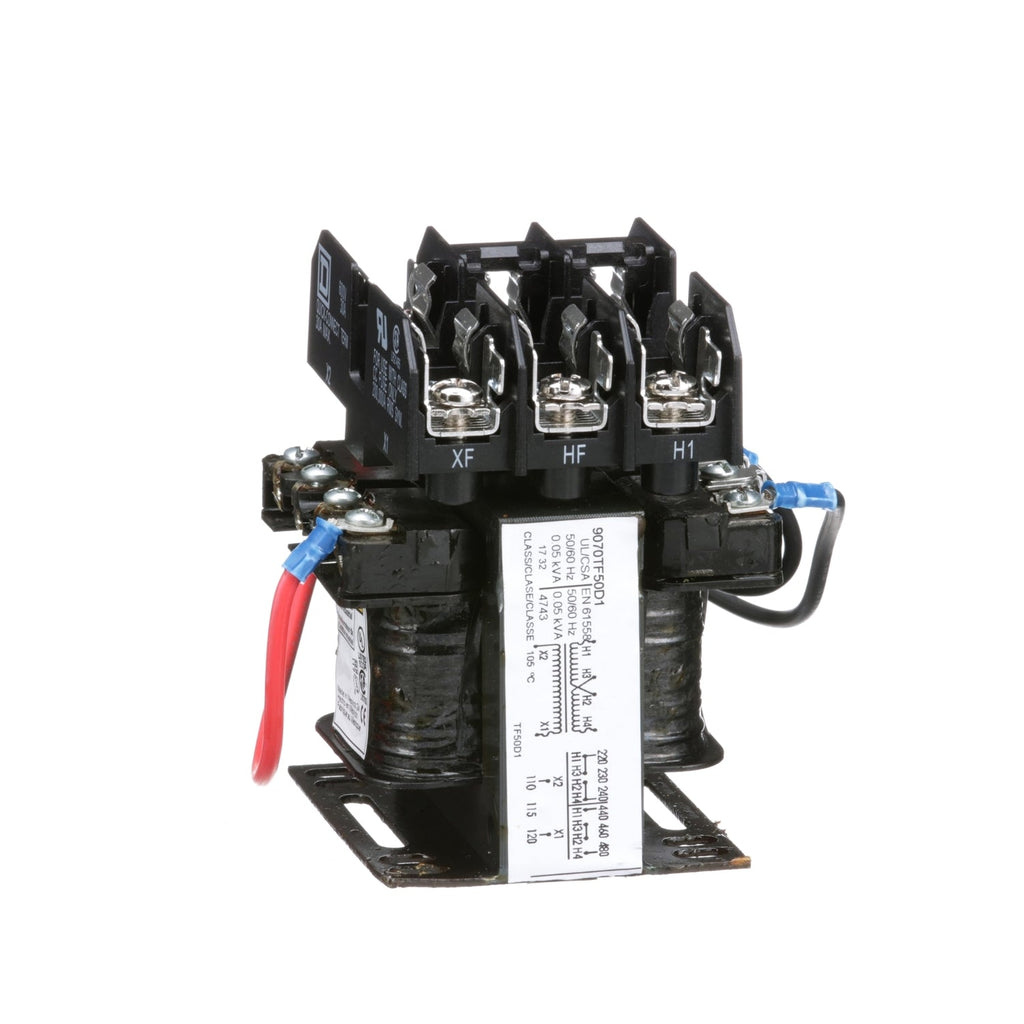

9070TF50D1 - Square D Control Transformer 50 VA, 240/480V Primary, 120V Secondary, 1 Phase, Panel Mount, Type TF Industrial Open Style

9070TF50D1

9070TF50D1 is a Square D control transformer designed for industrial applications with a 50 VA power rating.This transformer features a 240/480 VAC primary voltage and 120 VAC secondary voltage, operating at 50/60 Hz frequency. It is a single-phase unit with a panel mounting type and screw clamp connections. The enclosure is open style, Type TF industrial, with insulation rated at 105°C and a temperature rise of 55°C. Dimensions are approximately 4 in H x 3 in W x 3.09 in D. It is UL, CUL, CSA, CE, and NOM certified, compliant with EN 61558 standards, and RoHS/REACH compliant.

Key Specifications
• Power Rating: 50 VA
• Primary Voltage: 240/480 VAC (also compatible with 230/460/220/440 VAC)
• Secondary Voltage: 110/115/120 VAC
• Frequency: 50/60 Hz
• Phase: 1
• Mounting Type: Panel Mount
• Connection Type: Screw Clamp
• Enclosure Type: Open, Type TF Industrial
• Insulation Class: 105°C
• Temperature Rise: 55°C
• Dimensions: 4 in H x 3 in W x 3.09 in D
• Certifications: UL, CUL, CSA, CE, NOM

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9070TF50D1
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Transformer
• Item Subcategory : Industrial Control
• Family : Class 9070
• Type : T
• Phase : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Primary Voltage : 24/48

Product Data

• UPC : 78590190477
• GTIN : 00785901904779
• Country of Origin : Mexico
• Dimensions : 4 in (101.6 mm) x 3 in (76.2 mm) x 3.09 in (78.49 mm) (Height x Width x Depth)
• Weight : 3.179
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
