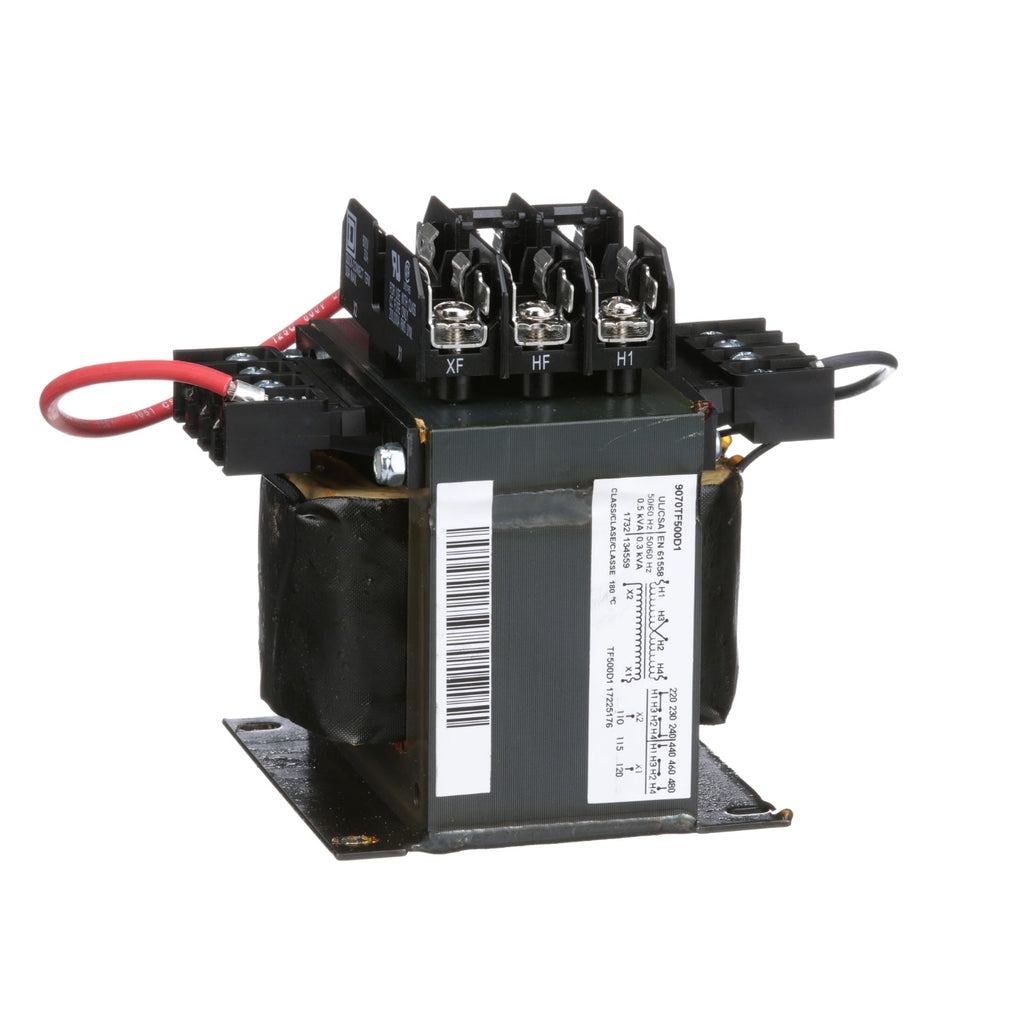

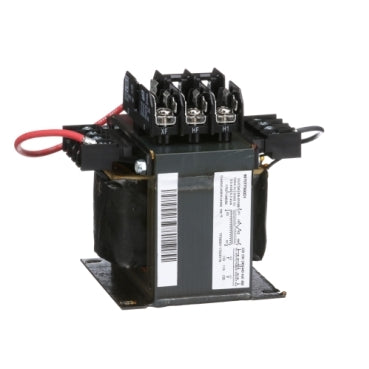

9070TF500D1 - Square D 500 VA 1-Phase Control Transformer 240/480V Primary 120V Secondary Open Style

9070TF500D1

9070TF500D1 is a Square D single-phase industrial control transformer designed for reliable voltage transformation in control circuits.This transformer features a 500 VA power rating with a primary voltage of 240/480 VAC and a secondary voltage of 120 VAC. It is an open-style device with screw clamp connections, suitable for panel or chassis mounting. The unit complies with UL Standard 508 and NEC 450, and holds UL, CUL, CSA, CE, and NOM certifications. It has an insulation class of 115 degrees Celsius and dimensions approximately 5.1" H x 4.5" W x 5.5" D.

Key Specifications
• Manufacturer: Square D
• Part Number: 9070TF500D1
• Power Rating: 500 VA
• Phase: Single-phase
• Primary Voltage: 240/480 VAC
• Secondary Voltage: 120 VAC
• Mounting Type: Panel/Chassis Mount
• Connection Type: Screw Clamp
• Enclosure Type: Open Style (Not Rated)
• Insulation Class: 115°C
• Certifications: UL, CUL, CSA, CE, NOM
• Dimensions: 5.1" H x 4.5" W x 5.5" D
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: 9070TF500D1
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Transformer
• Item Subcategory : Industrial Control
• Family : Class 9070
• Type : T
• Phase : 3
• KVA Rating : 500
• Primary Voltage : 240/480
• Secondary Voltage : 120



Product Data

• UPC : 078590190489
• GTIN : 00785901904892
• Country of Origin : Mexico
• Dimensions : 5.13 in (130.30 mm) x 4.5 in (114.3 mm) x 5.49 in (139.45 mm) (Height x Width x Depth)
• Weight : 12.871
• Certification : CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
