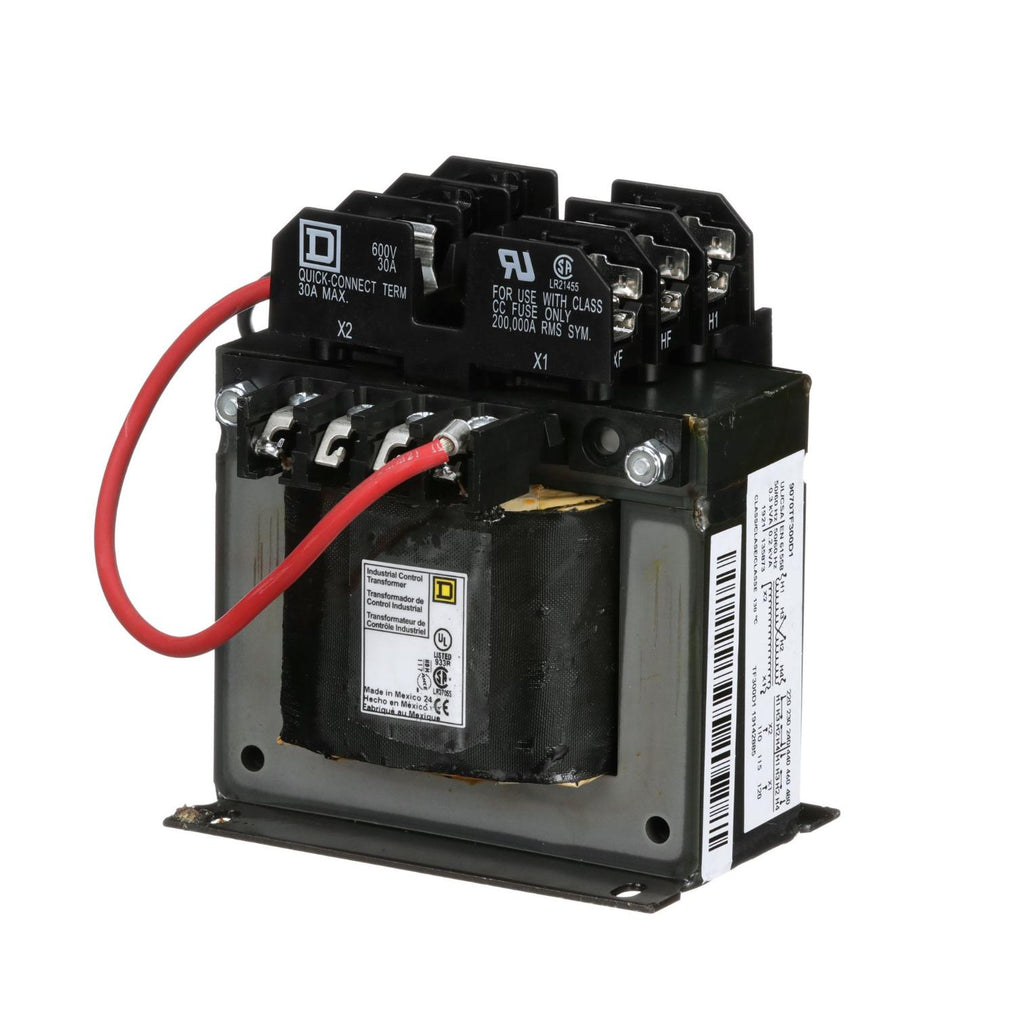

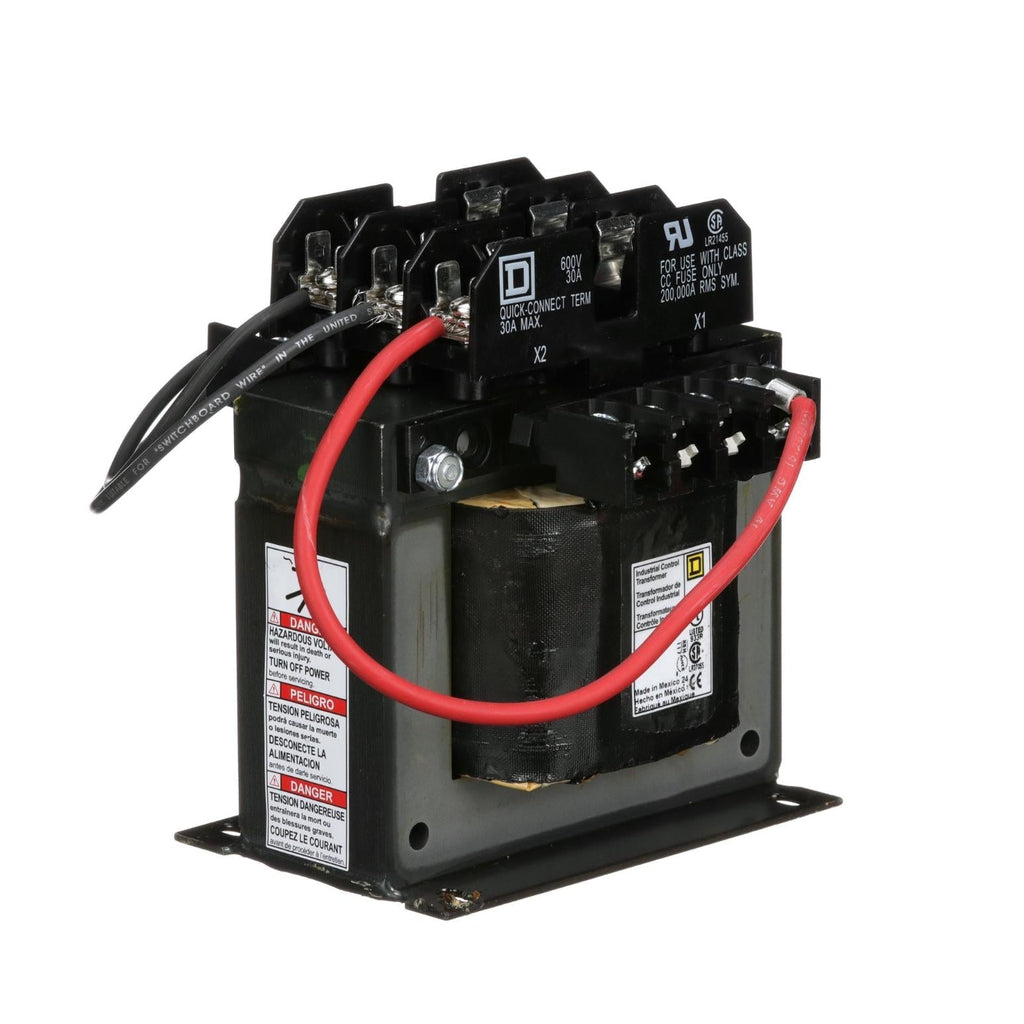

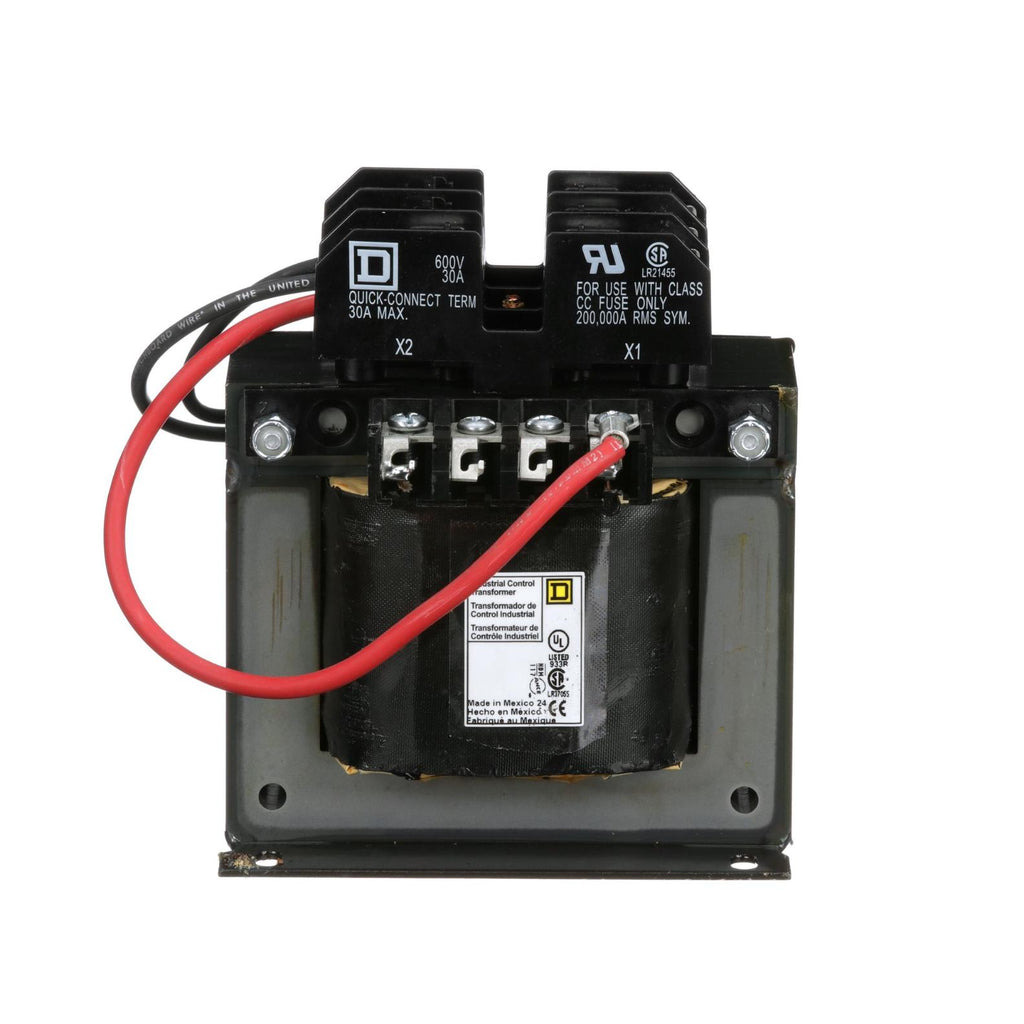

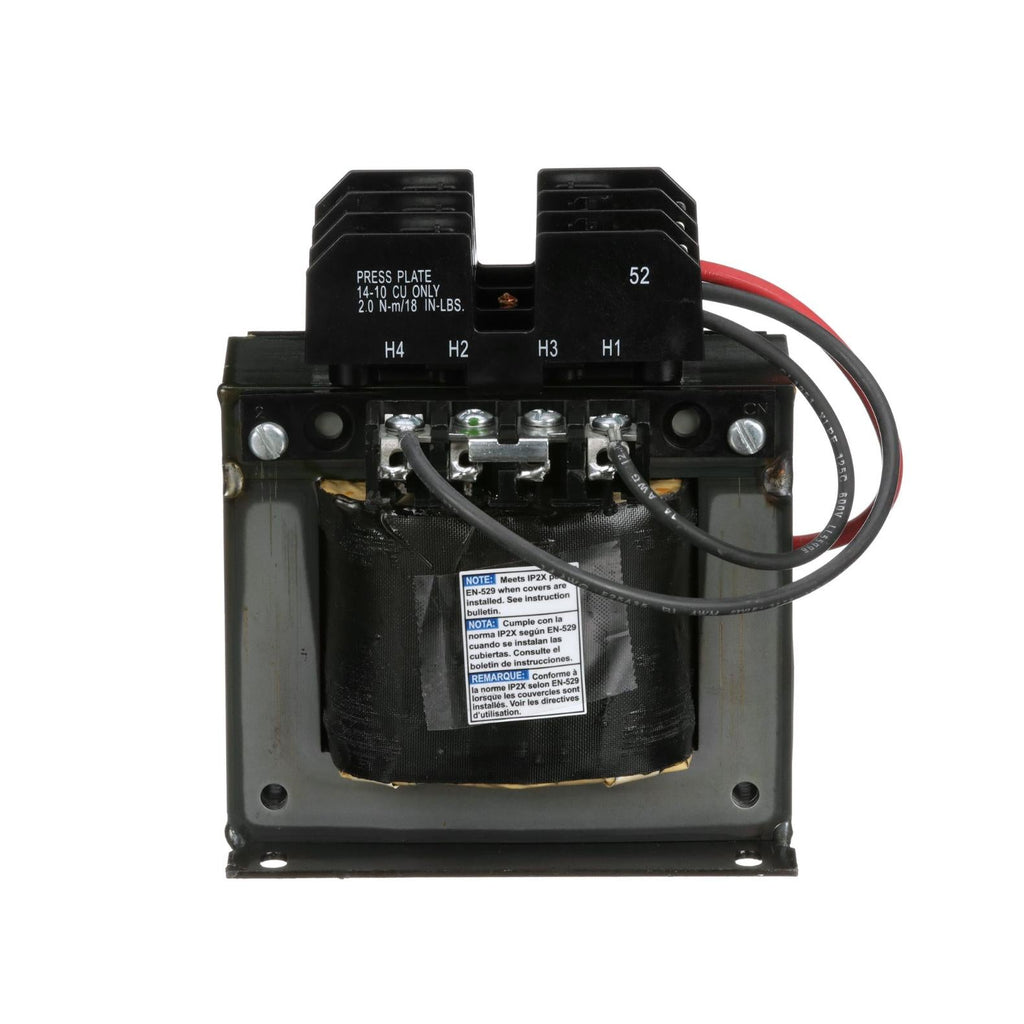

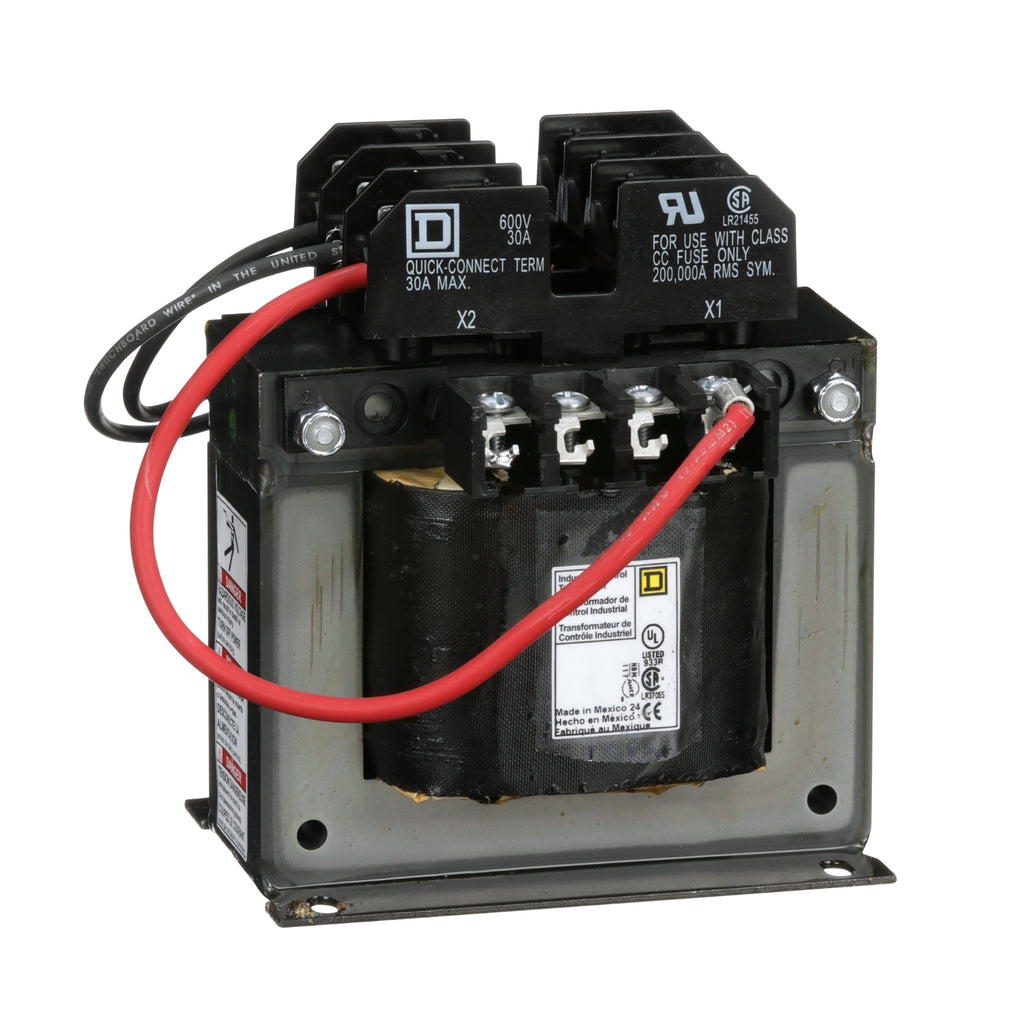

9070TF300D1 - Square D 300VA Industrial Control Transformer 120/240/480VAC 1 Phase Foot Mount

9070TF300D1

9070TF300D1 is a Square D industrial control transformer with a 300VA power rating and multi-voltage primary of 120/240/480VAC designed for 1 phase applications.This transformer features a foot mounting type and includes top-mounted fuse blocks for primary and secondary overcurrent protection. It is suitable for use in cabinets or switchboards and complies with UL, CSA, NOM, NEC, RoHS, and REACh standards. The compact dimensions are approximately 5.13" H x 4.5" W x 4.74" D.

• Power Rating: 300VA
• Primary Voltage: 120/240/480VAC
• Phase: 1
• Mounting Type: Foot Mount
• Includes Top Mounted Fuse Blocks
• Approvals: UL, CSA, NOM, NEC
• Standards: RoHS, REACh
• Dimensions (HxWxD): 5.13 x 4.5 x 4.74 inches
• Application: Cabinets or Switchboards
• Frequency: 50/60 Hz

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9070TF300D1
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Transformer
• Item Subcategory : Industrial Control
• Family : Class 9070
• Type : T
• Temp Rating : 80 °C
• Primary Voltage : 24/48
• Secondary Voltage : 12

Product Data

• UPC : 785901904878
• GTIN : 00785901904878
• Country of Origin : Mexico

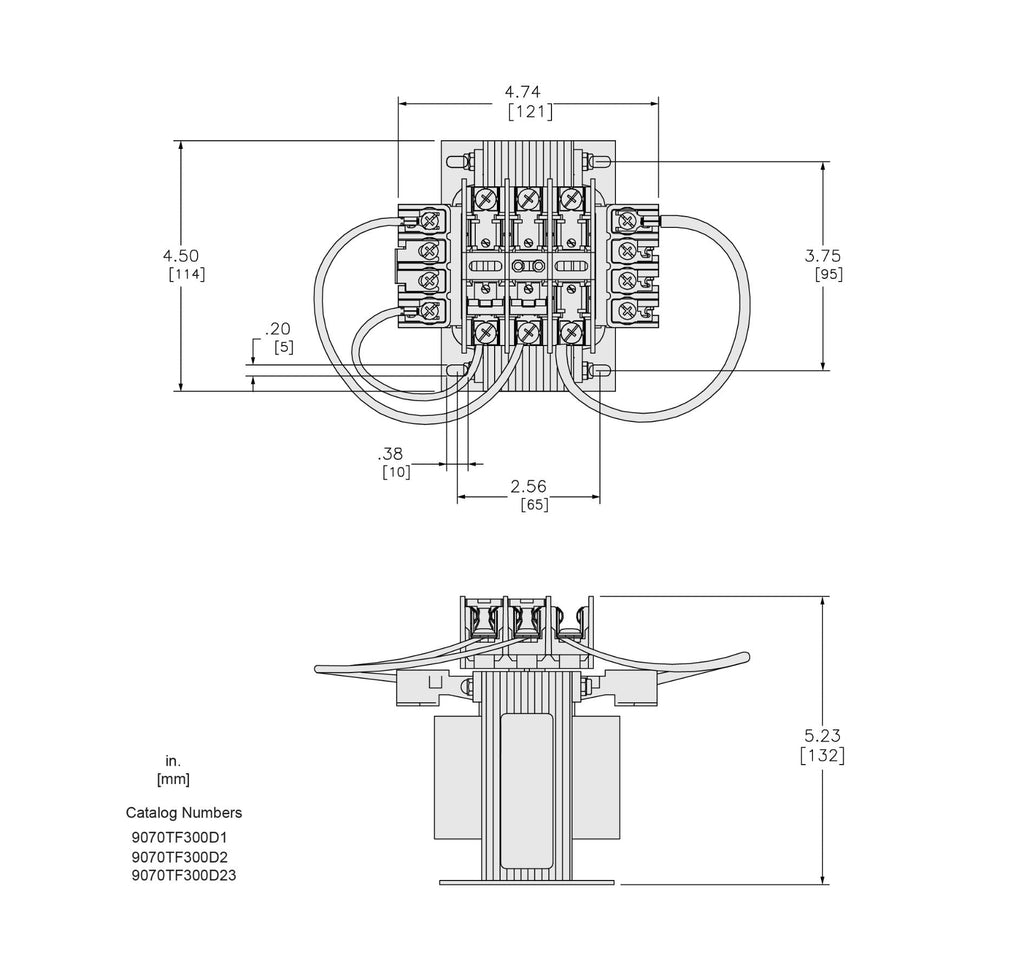

• Dimensions : 5.13 in (130.30 mm) x 4.5 in (114.3 mm) x 4.74 in (120.40 mm) (Height x Width x Depth)
• Weight : 9.681 lb
• Temp Rating : 80 °C
• Certification : CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
