9070TF250D1 - Square D 250VA 1-Phase Control Transformer 240/480V Primary 120V Secondary Type TF

9070TF250D1

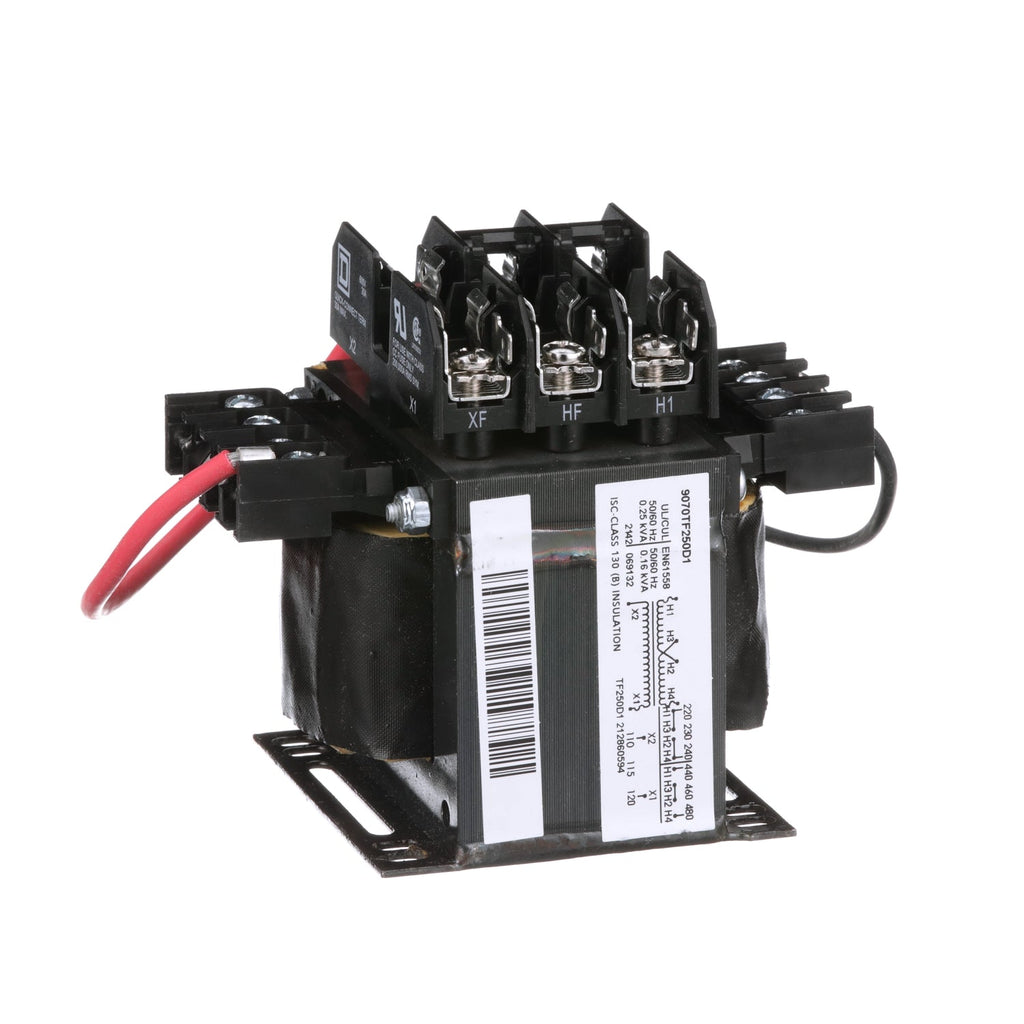

9070TF250D1 is a Square D Type TF industrial control transformer designed for reliable power conversion in control circuits.This single-phase transformer features a 250 VA power rating with dual primary voltages of 240 and 480 VAC and a secondary voltage of 120 VAC. It includes top-mounted fuse blocks for overcurrent protection and is suitable for contactors, starters, solenoids, and relays. The transformer is UL and cUL listed, with a temperature rise of 80°C, and operates at 50/60 Hz frequency.

• Power Rating: 250 VA
• Phase: Single-phase
• Primary Voltage: 240/480 VAC
• Secondary Voltage: 120 VAC
• Frequency: 50/60 Hz
• Fuse Type: Top mount fuse block (0.41 x 1.50 in CC)
• Temperature Rise: 80 °C
• Mounting Type: Industrial open style
• Certifications: UL, cUL, CSA, CE, NOM
• Type: TF
• Application: Control circuits for contactors, starters, solenoids, relays

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9070TF250D1
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Transformer
• Item Subcategory : Industrial Control
• Family : Class 9070
• Type : T
• Primary Voltage : 24/48
• Secondary Voltage : 12

Product Data

• UPC : 78590190486
• GTIN : 00785901904861
• Country of Origin : Mexico
• Dimensions : 4.5 in (114.3 mm) x 3.75 in (95.25 mm) x 5.3 in (134.6 mm) (Height x Width x Depth)
• Weight : 8.349
• Certification : CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
