9070TF200D1 - Square D 200VA Control Transformer 240/480V Primary 120V Secondary 1-Phase Open Style

9070TF200D1

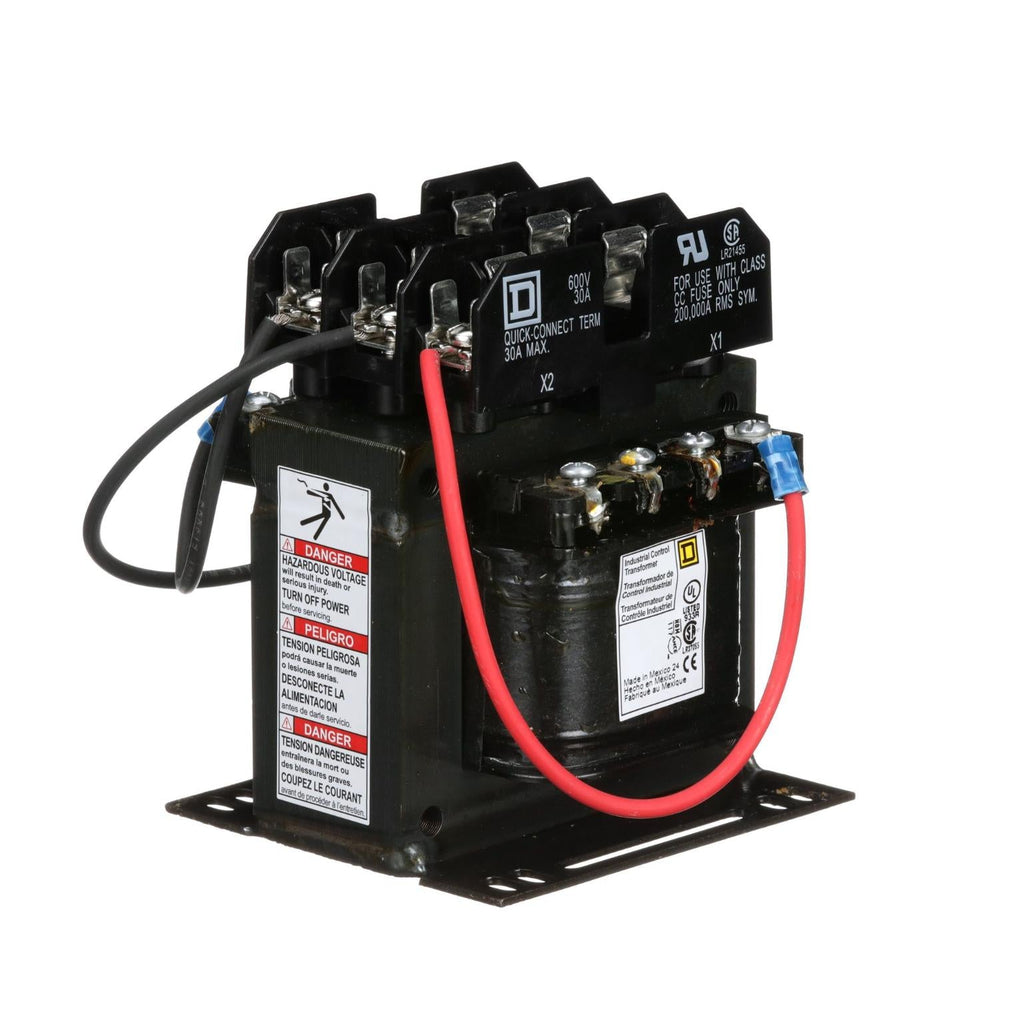

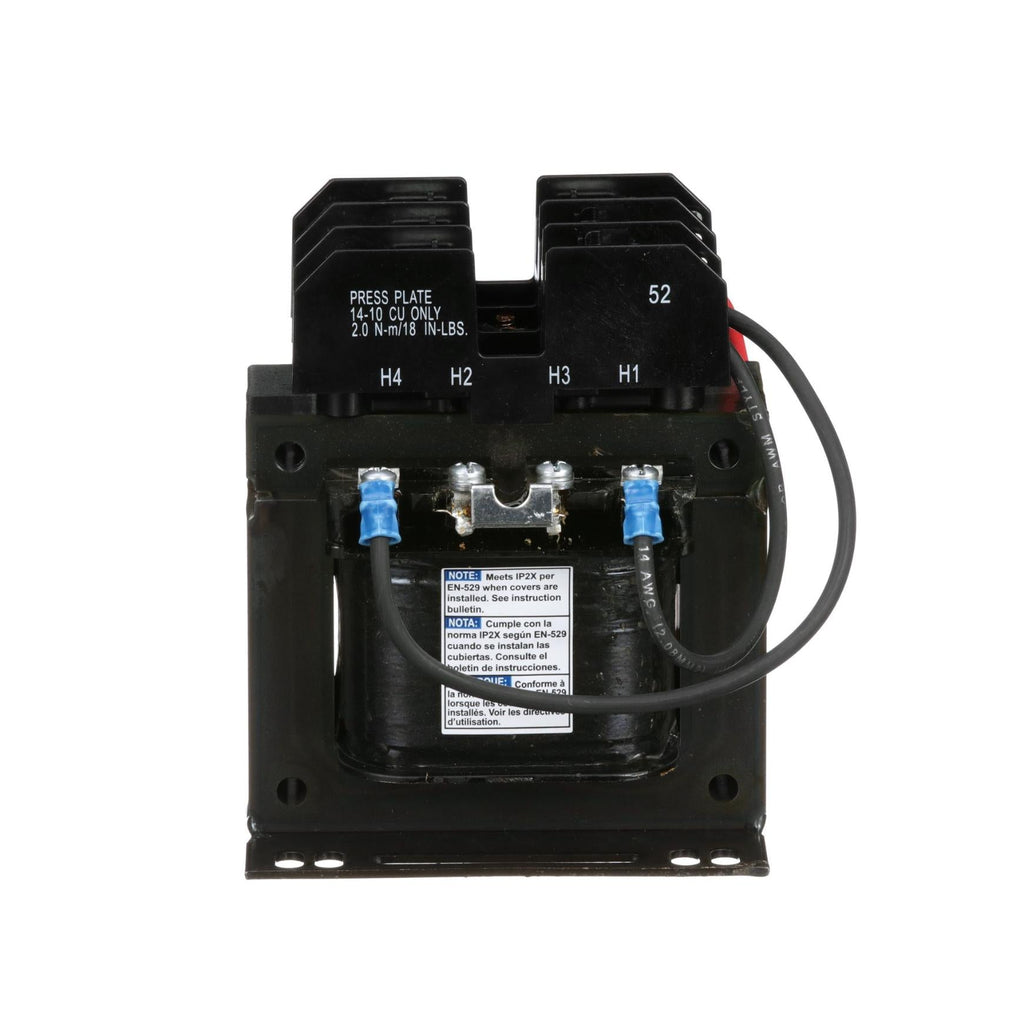

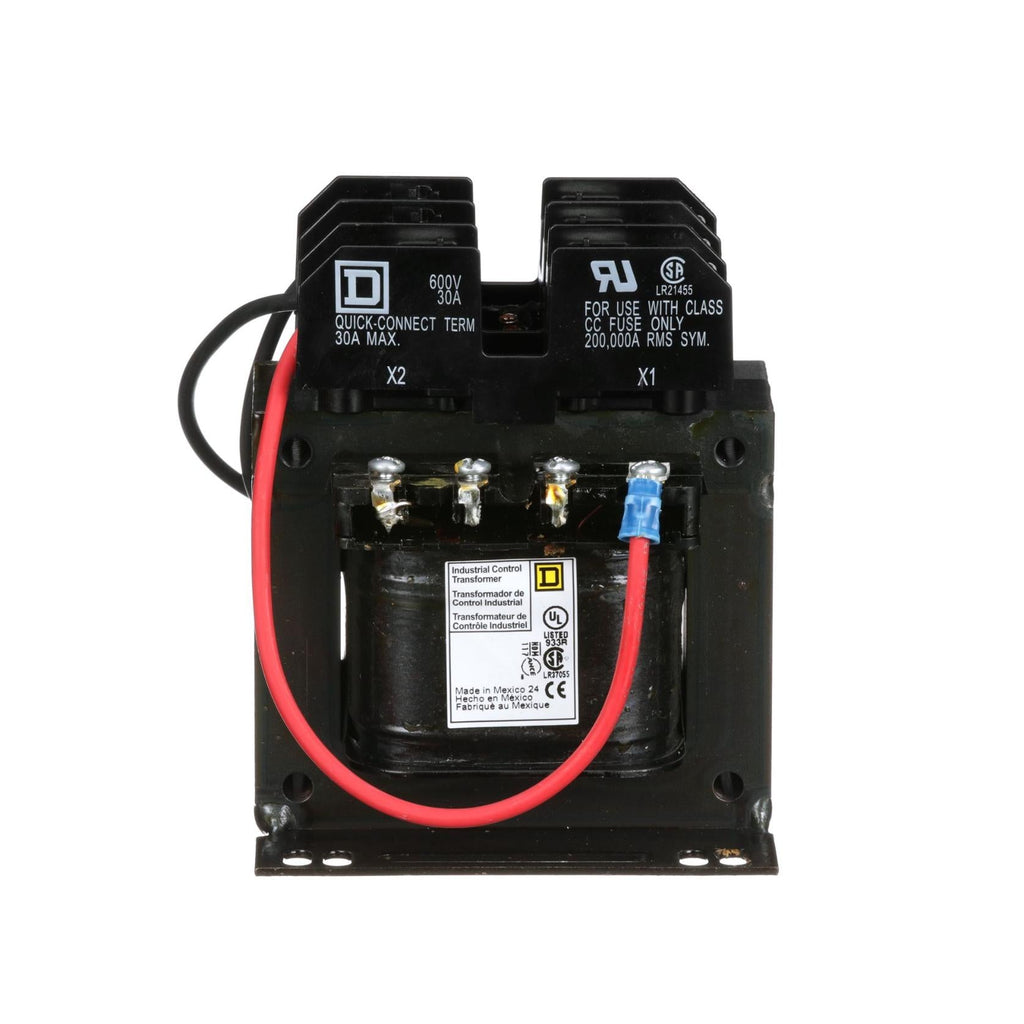

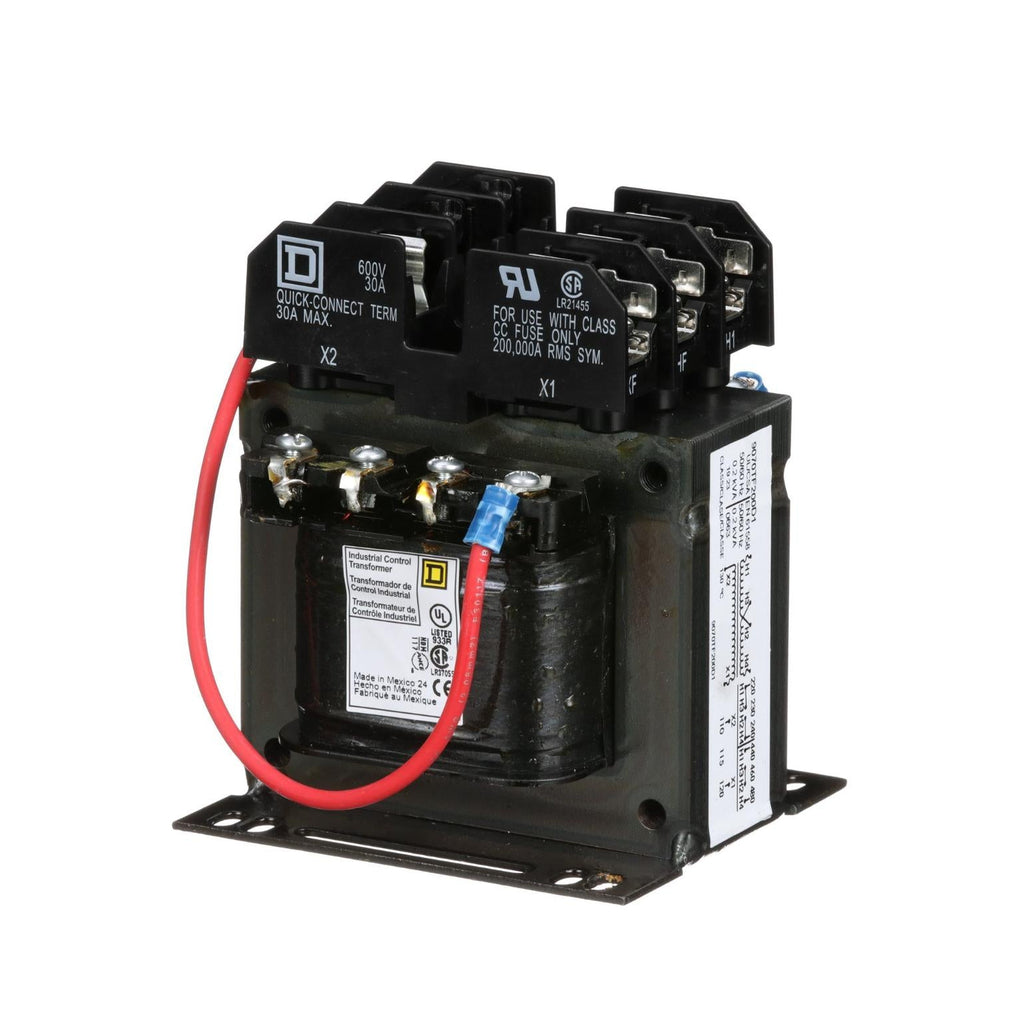

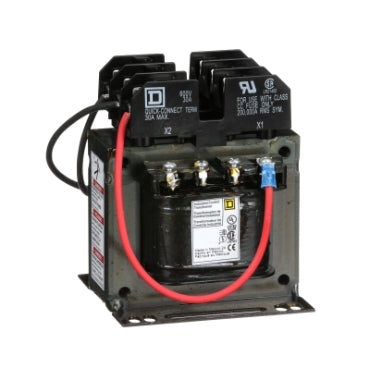

9070TF200D1 is a Square D 200VA control transformer designed for reliable voltage transformation in control circuits.

This transformer features a multi-tap primary voltage rating of 240/480V, 220/440V, and 230/460V with a secondary voltage output of 120V, 115V, or 110V. It is a 1-phase, open style transformer suitable for various industrial and commercial applications. The unit includes Class CC primary fuse holders and operates at 50/60 Hz frequency. It is UL, CUL, CSA, CE, and NOM certified, ensuring compliance with safety and performance standards.

• Volt Amps: 200 VA
• Primary Voltage: 240/480V, 220/440V, 230/460V multi-tap
• Secondary Voltage: 120V, 115V, 110V
• Phase: 1-Phase
• Mounting Type: Open Style
• Includes Class CC Primary Fuse Holders
• Frequency: 50/60 Hz

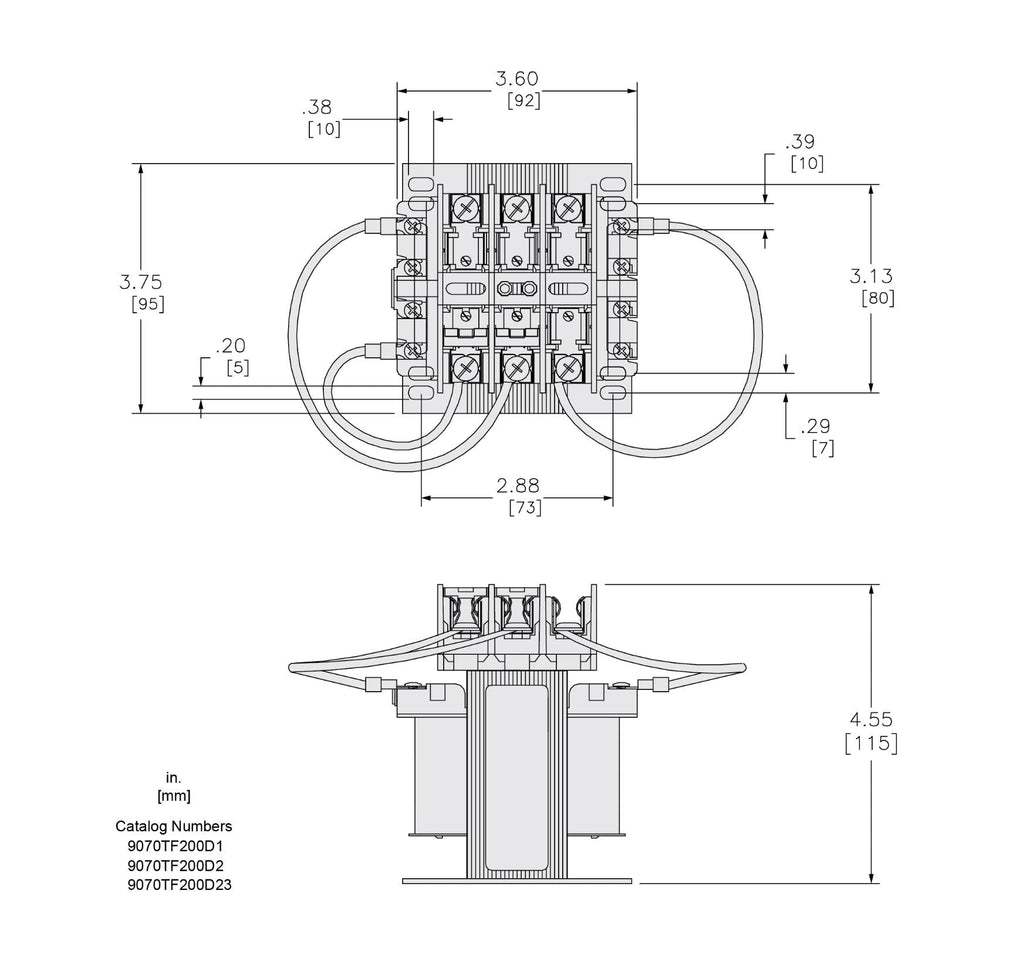

• Dimensions: 3.75 in W x 3.59 in D x 4.5 in H
• Certifications: UL, CUL, CSA, CE, NOM

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9070TF200D1
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Transformer
• Item Subcategory : Industrial Control
• Family : Class 9070
• Type : T
• Primary Voltage : 24/48
• Secondary Voltage : 12

Product Data

• UPC : 78590190480
• GTIN : 00785901904809
• Country of Origin : Mexico
• Dimensions : 4.5 in (114.3 mm) x 3.75 in (95.25 mm) x 3.59 in (91.19 mm) (Height x Width x Depth)
• Weight : 6.21
• Certification : CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
