Description
9070TF2000D1

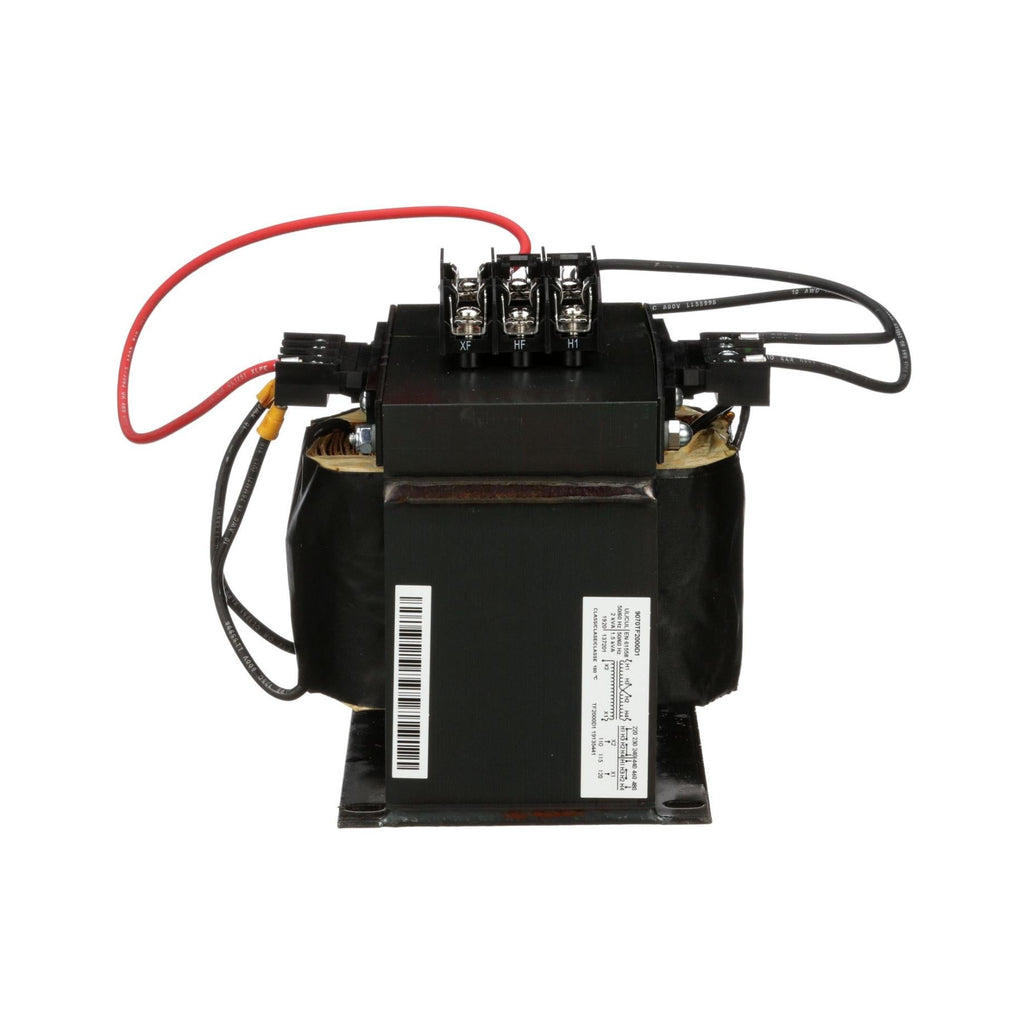

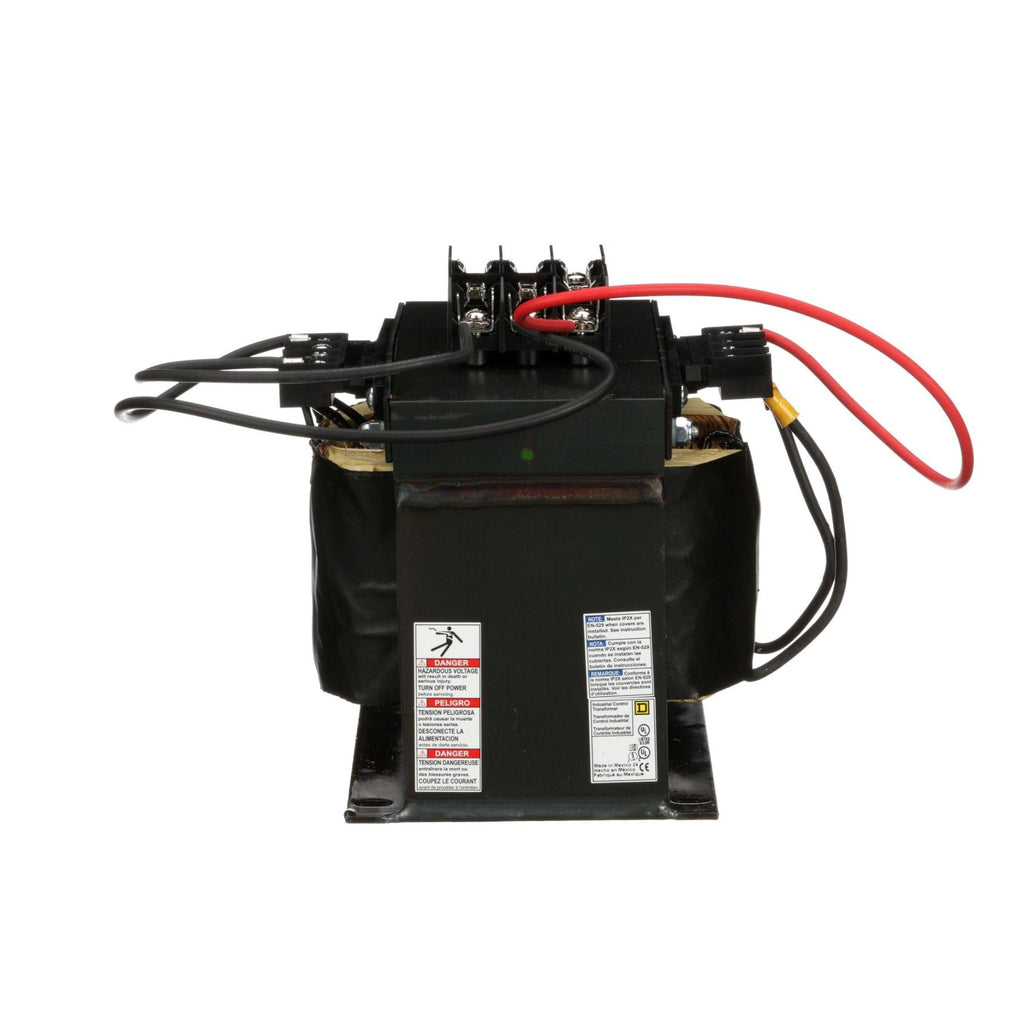

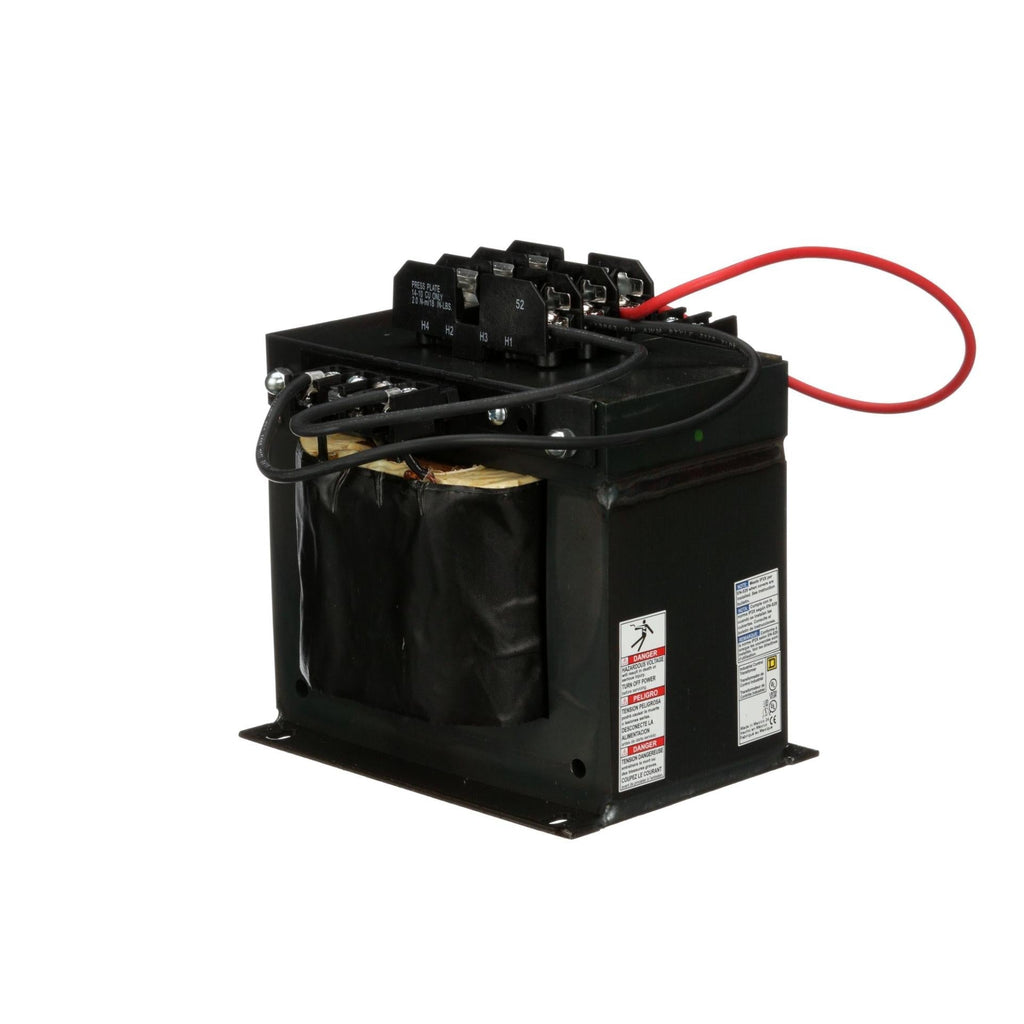

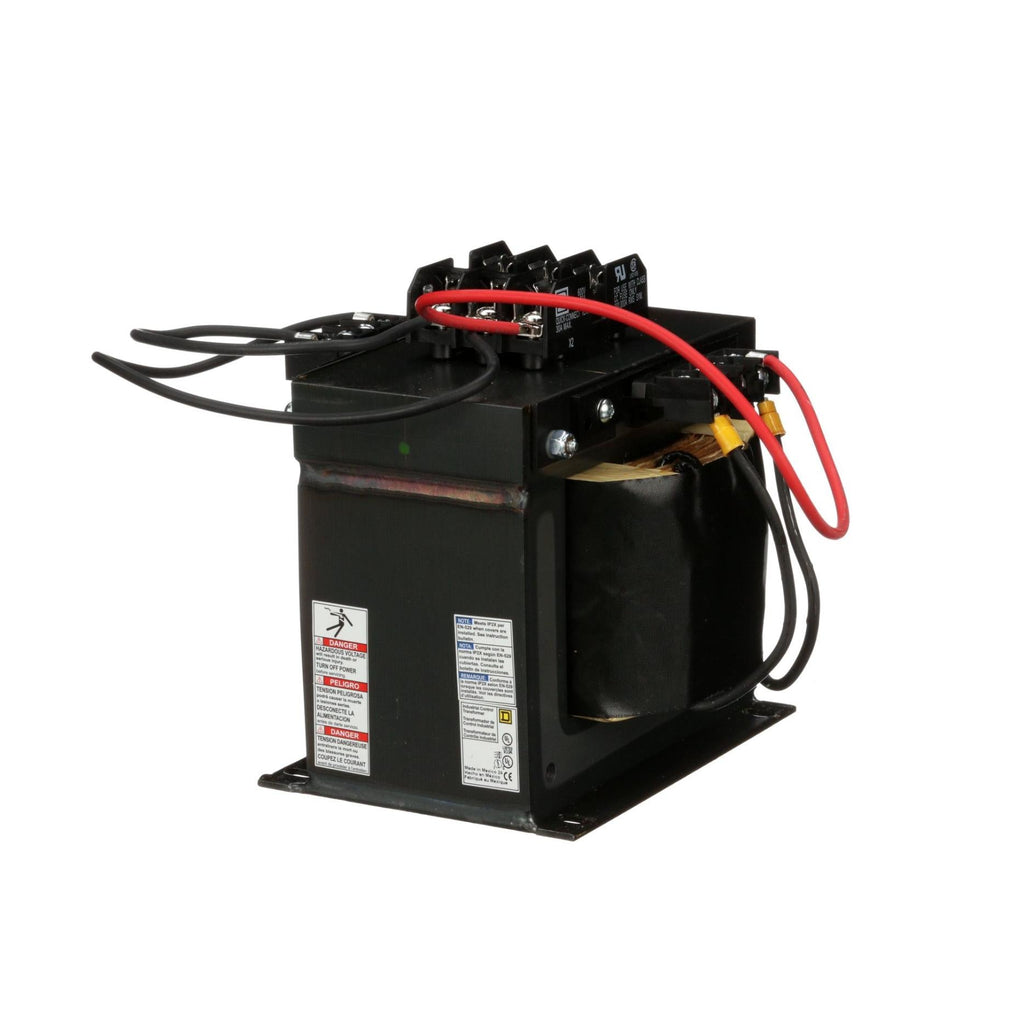

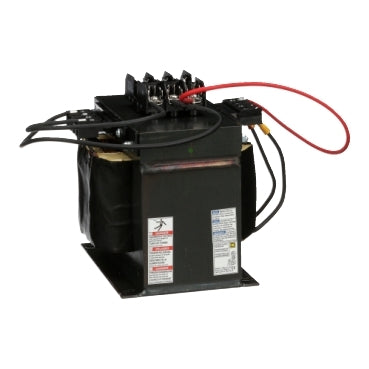

9070TF2000D1 is a Square D industrial control transformer designed for reliable power conversion in panel and machinery applications.
This transformer features a 2000VA rating, accepting 240/480V primary input and delivering 120V secondary output, with a compact, panel-mount design that includes integrated primary and secondary fuse blocks for overcurrent protection. Constructed with copper windings, it is suitable for a wide range of industrial environments and complies with major safety standards.
Key Specifications
- Part Number: 9070TF2000D1
- Manufacturer: Square D
- VA Rating: 2000VA
- Primary Voltage: 240/480V
- Secondary Voltage: 120V
- Phase: 1
- Mounting Type: Panel
- Series/Frame: Type TF, Class 9070
- Terminals: Screw clamp
- Certifications: UL, CSA, CE, CUL, NOM

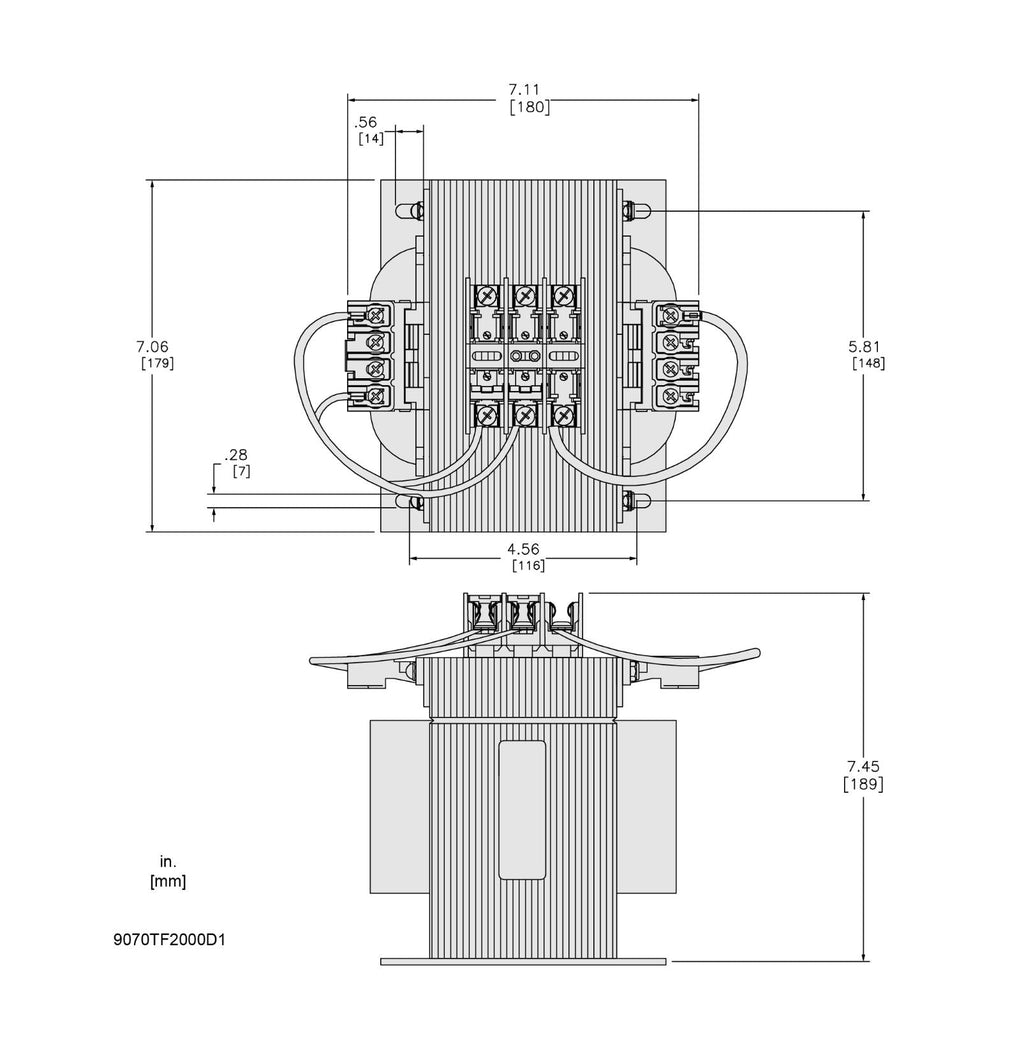

- Dimensions: 7.46" H x 7.06" W x 7.17" D
- Weight: 50.04 lbs
- Frequency: 50/60Hz
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 9070TF2000D1
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Transformer
- Item Subcategory : Industrial Control
- Family : Class 9070
- Type : T
- Phase : 3
- Primary Voltage : 24/48
Product Data
- UPC : 78590131436
- GTIN : 00785901314363
- Country of Origin : Mexico
- Dimensions : 7.46 in (189.48 mm) x 7.06 in (179.32 mm) x 7.17 in (182.12 mm) (Height x Width x Depth)
- Weight : 49.721
- Certification : CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
