9070TF100D31 - Square D 100 VA 240/480V to 120/240V 1-Phase Control Transformer Type TF Panel Mount

9070TF100D31

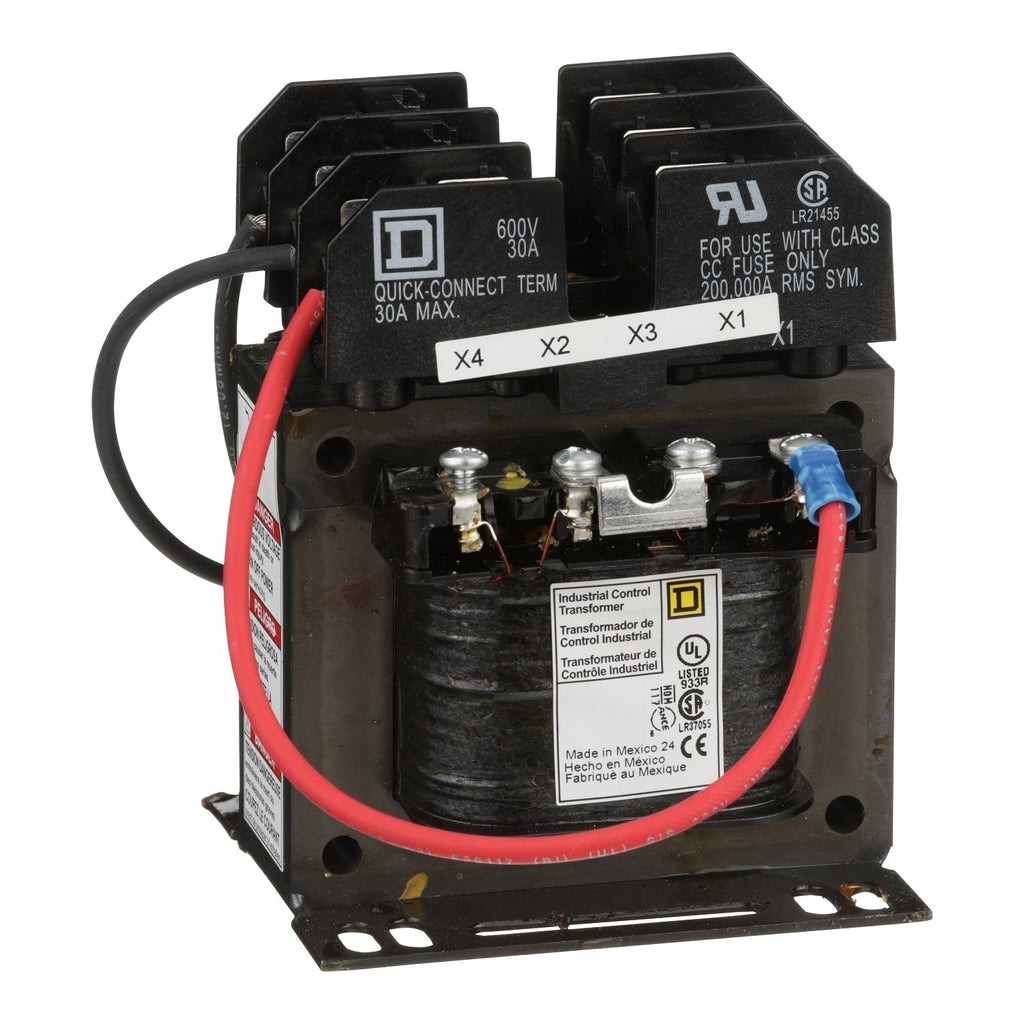

9070TF100D31 is a Square D 100 VA control transformer designed for industrial applications with a 240/480V primary and 120/240V secondary voltage rating.

This Type TF transformer features a single-phase design with screw clamp terminals and a panel mounting type. It includes two primary fuse blocks and one secondary fuse block mounted on top, equipped with rejection-style clips to enhance fuse AIC ratings. The transformer has low impedance windings for excellent voltage regulation and accommodates high inrush currents from relays, starters, solenoids, and contactors. It is open enclosure rated with a temperature rise of 131°F and insulation rated for 221°F. Dimensions are approximately 4.18" H x 3.38" W x 3.34" D.

• Type: Industrial Control Transformer, Type TF
• Volt Amps: 100 VA
• Phase: Single-phase (1 PH)
• Primary Voltage: 240/480 VAC
• Secondary Voltage: 120/240 VAC
• Mounting Type: Panel mount
• Terminal Connection: Screw clamp
• Fuse Blocks: 2 primary, 1 secondary with rejection clips
• Enclosure: Open
• Temperature Rise: 131°F
• Insulation Rating: 221°F
• Dimensions: 4.18" H x 3.38" W x 3.34" D
• Certifications: UL, CUL, CSA, CE, NOM

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9070TF100D31
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Transformer
• Item Subcategory : Industrial Control
• Family : Class 9070
• Type : T
• Primary Voltage : 24/48
• Secondary Voltage : Dec-24

Product Data

• UPC : 78590171204
• GTIN : 00785901712046
• Country of Origin : Mexico
• Dimensions : 4.18 in (106.17 mm) x 3.38 in (85.85 mm) x 3.34 in (84.84 mm) (Height x Width x Depth)
• Weight : 4.57
• Certification : UL listed file E61239; CSA file LR37055 guide 184-N-90
