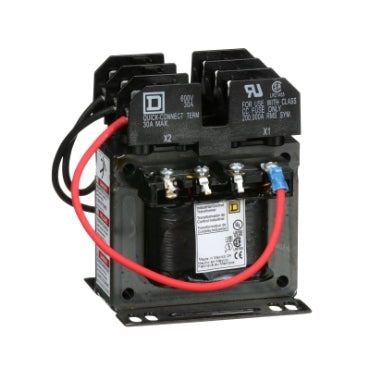

9070TF100D23 - Square D 100 VA 120/240 VAC Primary 24 VAC Secondary 1 Phase Industrial Control Transformer

9070TF100D23

9070TF100D23 is a 1 phase industrial control transformer designed for reliable voltage transformation in control circuits. This transformer features a 120/240 VAC primary and a 24 VAC secondary, making it suitable for a wide range of industrial applications. This Square D control transformer is built for durability and efficiency, with a 100 VA power rating and a 55 °C temperature rise. It is designed for top mount fuse installation and is ideal for use in control panels and machinery requiring stable low voltage output.

• 100 VA power rating
• 120/240 VAC primary voltage
• 24 VAC secondary voltage
• 1 phase
• 50/60 Hz frequency
• 55 °C temperature rise
• Top mount fuse
• UL, CUL, CSA, CE, NOM approvals
• EN 61558 applicable standard
• Dimensions: 3.75 in x 3.59 in
• Weight: 4.49 lbs
• Country of origin: Mexico

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9070TF100D23
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Transformer
• Item Subcategory : Industrial Control
• Family : Class 9070
• Type : T
• Phase : 1
• KVA Rating : 0.1
• Primary Voltage : 120/240
• Secondary Voltage : 24

Product Data

• UPC : 078590190525
• GTIN : 00785901905257
• Country of Origin : Mexico
• Dimensions : 3 3/4 in x 3.59 in
• Weight : 4.449
• Certification : UL Listed; CSA
