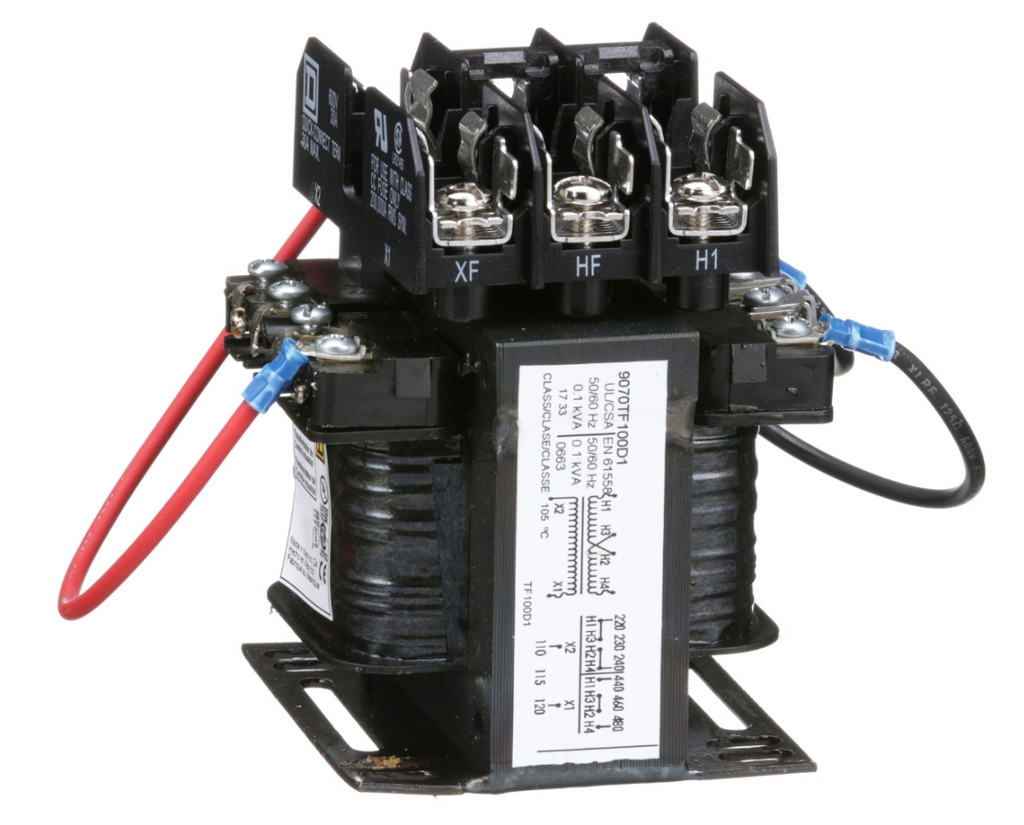

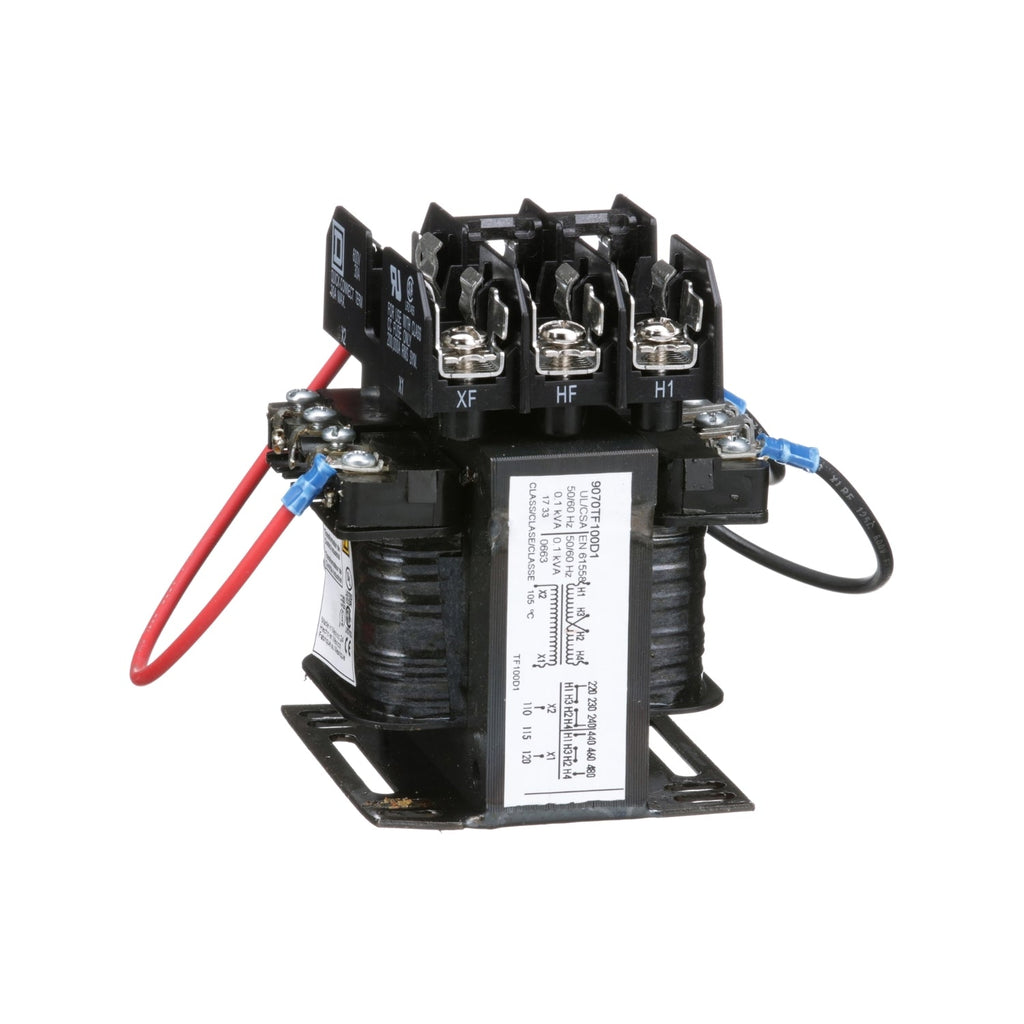

9070TF100D1 - Square D 100VA 240/480V to 120V Control Transformer, 1 Phase, Slot Mount

9070TF100D1

9070TF100D1 is a Square D control transformer with a 100VA power rating designed for industrial applications.This 1-phase transformer features a primary voltage of 240/480V and a secondary voltage of 120V. It has a compact design with dimensions approximately 3.38" W x 3.34" D x 4.25" H and a slot mounting type. The transformer operates at 50/60 Hz frequency and includes screw clamp terminals for secure connections. It is UL, CUL, CSA, CE, and NOM approved, meeting EN 61558 standards.

Key Specifications
• Power Rating: 100 VA
• Primary Voltage: 240/480 V
• Secondary Voltage: 120 V
• Phase: 1
• Frequency: 50/60 Hz
• Mounting Type: Slot Mount (0.48" L x 0.2" W)
• Terminal Type: Screw Clamp
• Dimensions: 3.38" W x 3.34" D x 4.25" H
• Certifications: UL, CUL, CSA, CE, NOM

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9070TF100D1
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Transformer
• Item Subcategory : Industrial Control
• Family : Class 9070
• Type : T
• Phase : 3
• KVA Rating : 100
• Primary Voltage : 240/480
• Secondary Voltage : 120

Product Data

• UPC : 785901904786
• GTIN : 00785901904786
• Country of Origin : Mexico
• Dimensions : 4.25 in (107.95 mm) x 3.38 in (85.85 mm) x 3.34 in (84.84 mm) (Height x Width x Depth)
• Weight : 4.601
• Certification : CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
