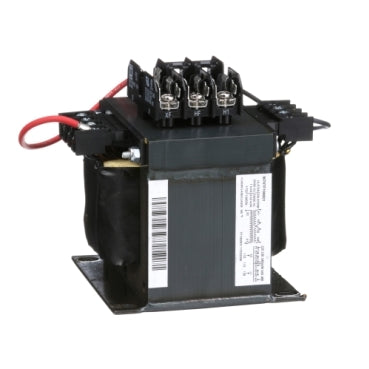

9070TF1000D1 - Square D 1-Phase 1000VA Industrial Control Transformer 240/480V Primary 120V Secondary Open Style

9070TF1000D1

9070TF1000D1 is a Square D industrial control transformer designed for reliable control power conversion in industrial applications.This 1-phase Type TF transformer provides 1000 VA power with multiple primary voltage options including 240/480, 230/460, and 220/440 VAC, and secondary voltages of 110, 115, or 120 VAC. It features an open enclosure style, screw clamp connections, and a temperature rating of 115 degrees Celsius. The unit includes factory-installed fuse blocks for primary and secondary protection and is compatible with Square D fingersafe covers and control power fuse kits. It meets UL, CUL, CSA, CE, and NOM certifications.

Key Specifications
• Power Rating: 1000 VA
• Phase: 1
• Primary Voltage: 240/480, 230/460, 220/440 VAC
• Secondary Voltage: 110, 115, 120 VAC
• Frequency: 50/60 Hz
• Enclosure Type: Open
• Mounting Type: Panel
• Connection Type: Screw Clamp
• Temperature Rating: 115°C
• Fuse Type: 0.41 x 1.5 in Class CC primary fuse holders
• Certifications: UL, CUL, CSA, CE, NOM
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: 9070TF1000D1
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Transformer
• Item Subcategory : Industrial Control
• Family : Class 9070
• Type : T
• Phase : 3
• Primary Voltage : 24/48



Product Data

• UPC : 78590190492
• GTIN : 00785901904922
• Country of Origin : Mexico
• Dimensions : 5.8 in (147.3 mm) x 5.25 in (133.35 mm) x 6.3 in (160.02 mm) (Height x Width x Depth)
• Weight : 21.799
• Certification : CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
