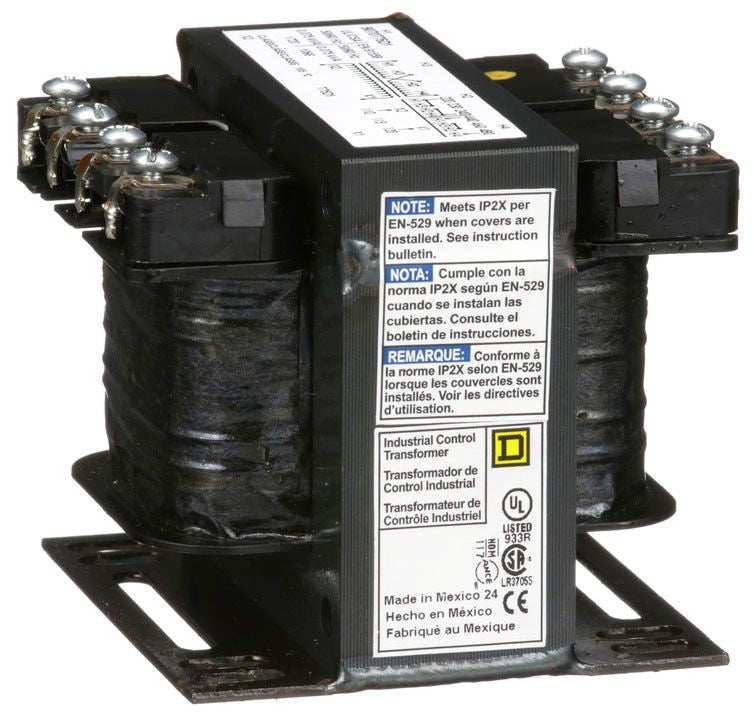

9070T75D1 - Square D 75VA 240/480V to 120V Industrial Control Transformer, 1-Phase, Screw Clamp Terminals, Open Frame, CSA/UL Listed

9070T75D1

9070T75D1 is a Square D industrial control transformer designed for reliable motor control applications.

This 1-phase transformer features a 75VA power rating, accepts 240V or 480V primary input, and delivers 120V secondary output. It is constructed with copper windings, screw clamp terminals for secure connections, and an open frame design. Ideal for control circuits in industrial environments, it is CSA and UL listed for safety and compliance.

Key Specifications
• Part Number: 9070T75D1
• Manufacturer: Square D
• Category: Motor Control
• Power Rating: 75VA
• Primary Voltage: 240V/480V AC
• Secondary Voltage: 120V AC
• Phases: 1
• Termination: Screw clamp terminals
• Frame/Series: 9070
• Enclosure: Open (not rated)
• Temperature Rise: 55°C
• Certifications: CSA, UL Listed
• Country of Origin: Mexico

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9070T75D1
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Transformers
• Section : Control
• Family : 9070
• Temp Rating : -13–158 °F (-25–70 °C)

Product Data

• UPC : 785901904731
• GTIN : 00785901904731
• Country of Origin : Mexico
• Dimensions : 2.89 in (73.41 mm) x 3.38 in (85.85 mm) x 3.34 in (84.84 mm) (Height x Width x Depth)
• Weight : 4.191 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
